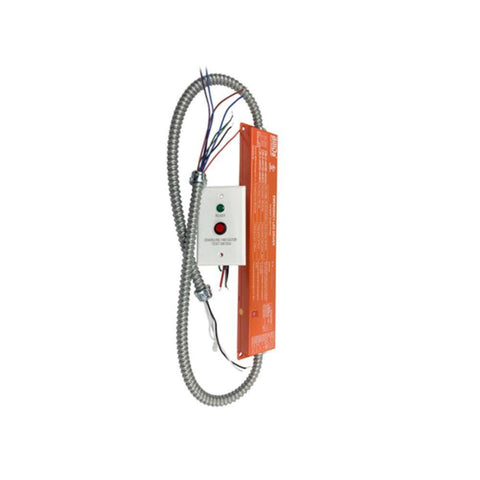

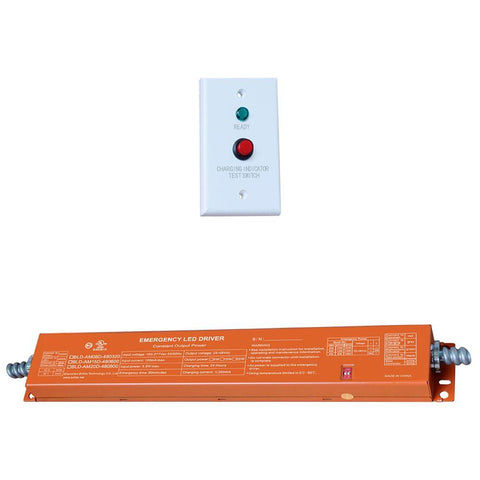

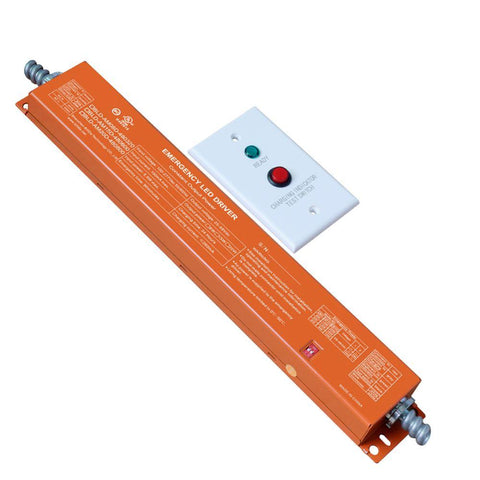

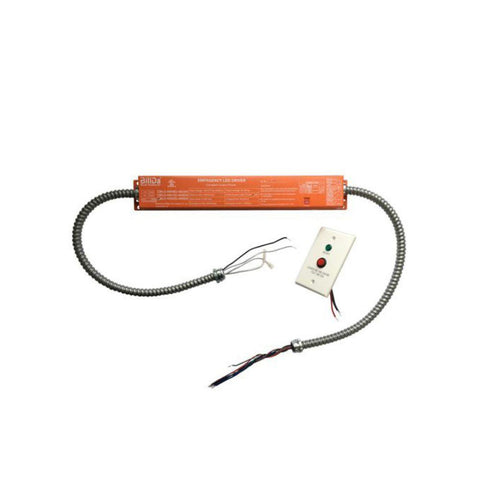

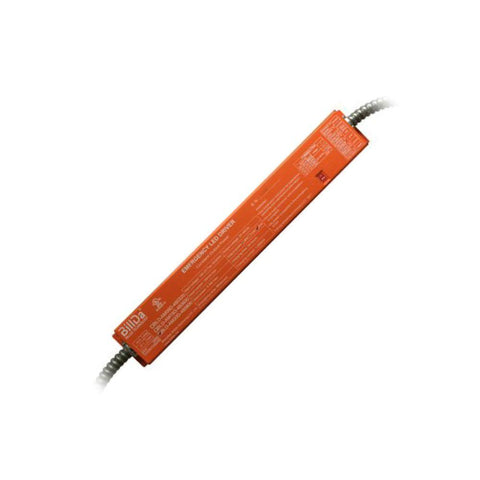

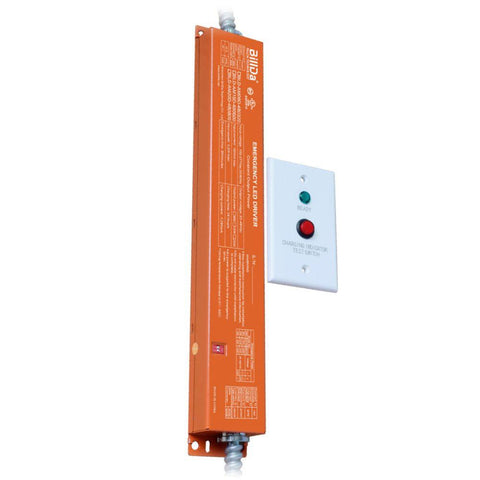

LED Emergency driver is the most innovative and feature rich product of its kind. This new Emergency driver 2020 version is specially designed for LED Panels, Troffers, Downlights, High Bay fixtures, and it's also compatible with most indoor LED lighting fixtures. This new Emergency driver offers multiple selectable emergency power options from 8w to 20w. This new Emergency driver power will provide up to 90 minutes of backup power in case of a power failure.
- Listed for field installation-UL924 and CSA C22.2 NO.141
- Test Switch/Charging Indicator Light Low Voltage. Illuminated Test Switch
- Constant output power (Auto sensing output within each range)
- Output Current & Voltage 320-600mA, 25V-48V
- Battery protections include over voltage, low voltage, over temperature, and short circuit protection.
- Temperature Rating (Ambient) 0°c to +50°C (32°F to 122°F)
- RoHS compliant
- AC Input Current 100mA max
- AC Input Power Rating 5.5W max
- Output Power 15W /20W max
- Illumination Time 2:90 Minutes
- Full Warranty 5 Years
- Output LVLE Compliant
- Universal input 100-347Vac
- Battery High-Temperature, Maintenance- Free ,Ni-MH battery, 5 Years Life Expectancy.
- Battery Charging Current 250mA
- Recharge Time 2:24 Hours
-
Meets CEC Title 20 (California Energy Commission) efficiency standards
