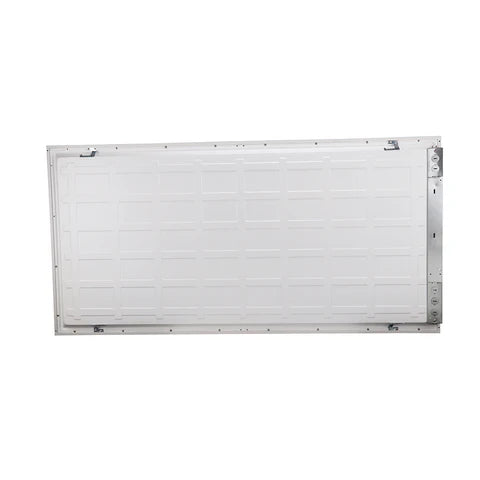

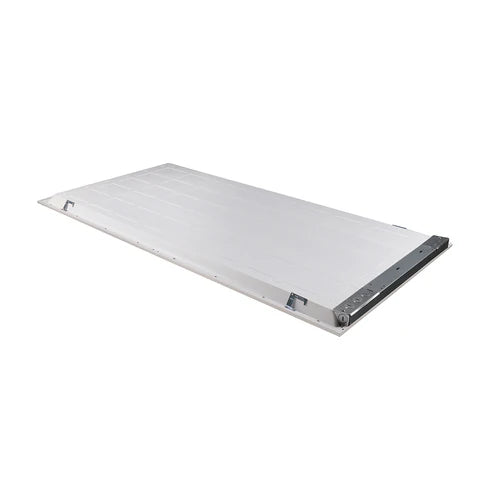

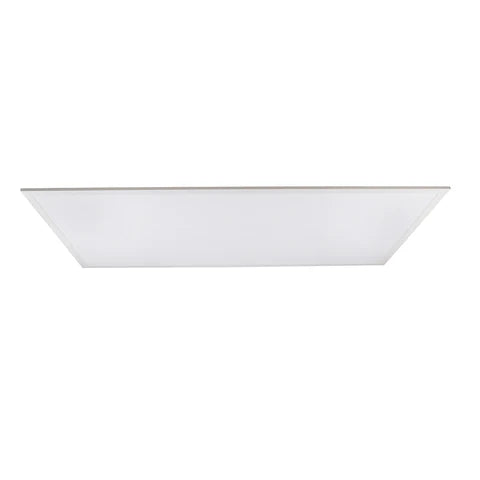

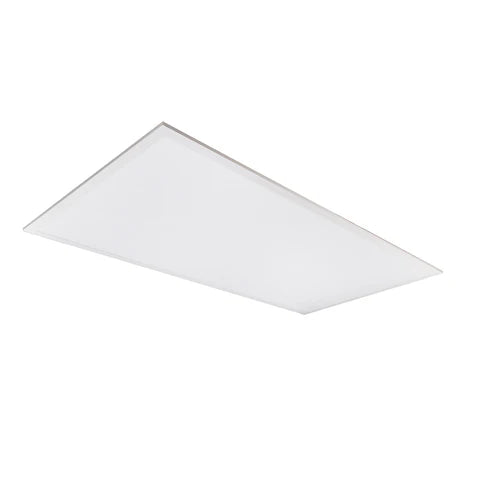

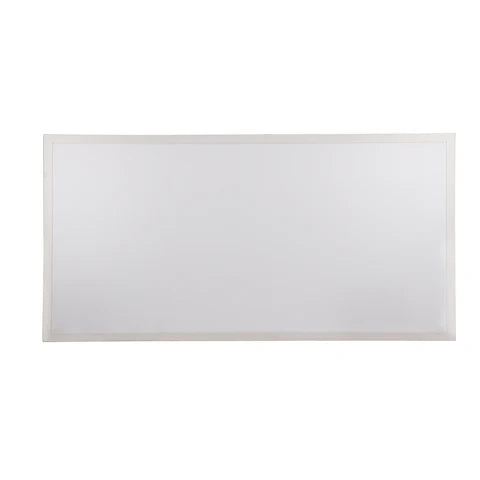

LED Backlit Panel | Adj Watt 30W/40W/50W/60W/72W | 10440 Lumens | Adj CCT 3500K-4000K-5000K-5700K-6500K | 120-277Vac

LED Backlit Panel | Adj Watt 30W/40W/50W/60W/72W | 10440 Lumens | Adj CCT 3500K-4000K-5000K-5700K-6500K | 120-277Vac

2'X4' | UL & DLC Listed | 5 Year Warranty

  • Up to 145 lm/W
  • Available in 2x4
  • Adjustable wattage
  • Adjustable CCT
  • 0-10V Dimmable
  • 110° Beam Angle
  • White housing
  • Input Voltage 120-277VAC
  • UL & DLC listed
  • 5-year warranty
Nothing But LEDs’ LED Backlit Panels are ultra-thin, super-bright, and engineered to provide uniform illumination with exceptional energy efficiency. With their sleek backlit design, these panels create soft, ambient lighting that enhances any spa...
View Important Details
SKU: 1570012
Regular price $64.99 ea.
Sale price $64.99 ea. Regular price ea.

Sold as a Pack 4
for $259.96

Call for Bulk Order
800-414-8919
Product Details
  • Up to 145 lm/W
  • Available in 2x4
  • Adjustable wattage
  • Adjustable CCT
  • 0-10V Dimmable
  • 110° Beam Angle
  • White housing
  • Input Voltage 120-277VAC
  • UL & DLC listed
  • 5-year warranty

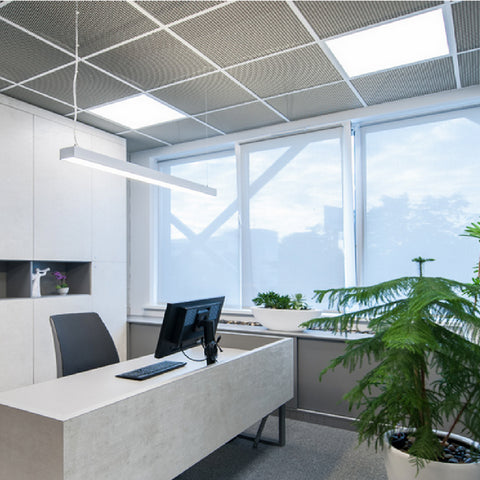

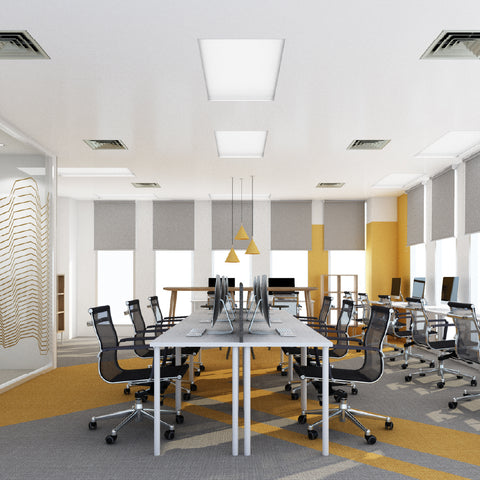

Nothing But LEDs’ LED Backlit Panels are ultra-thin, super-bright, and engineered to provide uniform illumination with exceptional energy efficiency. With their sleek backlit design, these panels create soft, ambient lighting that enhances any space while offering five adjustable wattage and CCT options for ultimate flexibility. These panels are the ideal choice for commercial buildings, offices, hospitals, libraries, hotels, and corridors, whether you’re upgrading existing fixtures or planning new construction. Designed for modern aesthetics, they combine a slim profile with cutting-edge LED technology, offering a perfect balance of style, efficiency, and performance. Whether you're looking for a high-quality, cost-effective solution or seeking to improve the ambiance of your space, these panels deliver outstanding results.

  • Up to 145 lm/W
  • Available in 2x4
  • Adjustable wattage
  • Adjustable CCT
  • 0-10V Dimmable
  • 110° Beam Angle
  • White housing
  • Input Voltage 120-277VAC
  • UL & DLC listed
  • 5-year warranty
Spec Sheet and Reports
General Performance
Description Value
  • Model #
  • Adjustable Watt
  • Max Lumens
  • Lumen Efficacy
  • Color Temperature
  • CRI (Ra)
  • Light Spread
  • Diffuser Type
  • BLT-PL05B-24FT-72WBFC1A1-WH35/40/50/57/65
  • 20W / 25W / 30W / 35W / 40W
  • 5800Lm
  • Up to 145LM/W
  • 3500K / 4000K / 5000K / 5700K / 6500K
  • >80
  • 110°
  • Frosted Lens
Electrical
Description Value
  • Input Voltage
  • Frequency
  • THD
  • Dimming
  • Power Factor
  • Flicker Free
  • Driver Model
  • Driver Surge protection
  • 120-277Vac
  • 50/60Hz
  • <20%
  • 1-10V Dimmable
  • ≥0.9
  • ≤5%
  • XZ-SL50B-450083-H
  • L/N-PE: 2kV, L-N: 1kV
Physical
Description Value
  • Storage Temperature
  • Operating Humidity
  • Storage Humidity
  • LED Brand
  • LED Type
  • LED QTY
  • Construction
  • -40°C TO 80°C
  • 20% - 90% RH
  • 10% - 95% RH
  • Lumileds
  • SMD 2835
  • 120 Pcs
  • Aluminum + IRON
