LED Grid Panel | Adjustable Watt 20W-30W-40W | 5000 Lumens | Adjustable CCT 3K-3500K-4K-5K-6500K | 100V-277V

LED Grid Panel | Adjustable Watt 20W-30W-40W | 5000 Lumens | Adjustable CCT 3K-3500K-4K-5K-6500K | 100V-277V

2'X2' - ETL & DLC Listed - 5-year warranty

  • Up to 120 Lumens per watt
  • Wattage Adjustable 20W/30W/40W
  • CCT Adjustable 3K/3500K/4K/5K/6500K
  • Input Voltage 100-277Vac voltage (50-60Hz)
  • 0-10V Dimmable
  • Ultra-light weight, one person installs
  • Housing material: 6063-T5
  • Installs into conventional grid ceiling
  • ETL & DLC Listed
  • 5 Year warranty
Nothing But LEDs’ Grid Panels deliver uniform illumination and energy efficiency, making them an excellent replacement for traditional T5, T8, or T12 fluorescent troffers. Designed with a diffusing lens for direct lighting, these panels ensure bri...
View Important Details
SKU: 1560790
Regular price $44.99 ea.
Sale price $44.99 ea. Regular price ea.

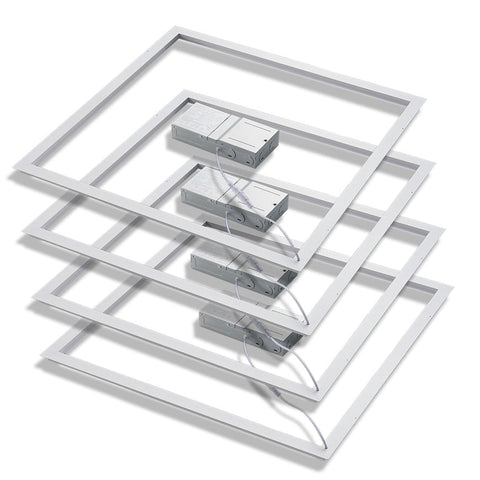

Sold as a Pack 4
for $179.96

Call for Bulk Order
800-414-8919
Product Details
  • Up to 120 Lumens per watt
  • Wattage Adjustable 20W/30W/40W
  • CCT Adjustable 3K/3500K/4K/5K/6500K
  • Input Voltage 100-277Vac voltage (50-60Hz)
  • 0-10V Dimmable
  • Ultra-light weight, one person installs
  • Housing material: 6063-T5
  • Installs into conventional grid ceiling
  • ETL & DLC Listed
  • 5 Year warranty

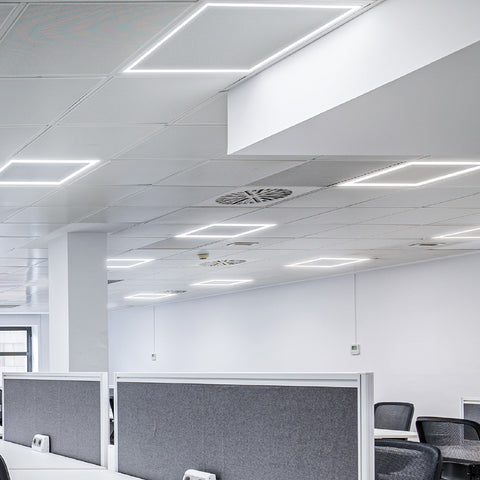

Nothing But LEDs’ Grid Panels deliver uniform illumination and energy efficiency, making them an excellent replacement for traditional T5, T8, or T12 fluorescent troffers. Designed with a diffusing lens for direct lighting, these panels ensure bright, even light distribution across any space. With adjustable wattage and CCT settings, these panels provide the flexibility to meet a wide range of lighting requirements. Their sleek design integrates effortlessly with architectural ceilings, creating a clean and modern lighting aesthetic ideal for contemporary environments. Lightweight and durable, these panels are easy to install and built to last. They are a smart choice for corporate offices, healthcare facilities, educational institutions, and other commercial spaces, delivering both performance and visual appeal.

  • Up to 125 lm/W
  • Available in 2x2
  • Adjustable wattage
  • Adjustable CCT
  • 0-10V Dimmable
  • 120° Beam Angle
  • White Housing
  • Input Voltage 100-277VAC
  • ETL & DLC listed
  • 5-year warranty
General Performance
Description Value
  • Model #
  • Wattage Adjustable
  • Lumen
  • Lumen Efficacy
  • Color Temperature
  • CRI (Ra)
  • Beam Angle
  • Diffuser Type
  • BLT-FL2*2-K40-3065
  • 20W / 30W / 40W
  • Max 5000Lm
  • Up to 120LM/W
  • 3000K / 3500K / 4000K / 5000K / 6500K
  • >80
  • 120° Degree
  • PC Cover
Electrical
Description Value
  • Input Voltage
  • Frequency
  • Dimming
  • THD
  • Power Factor
  • 100-277Vac
  • 50/60Hz
  • 0-10V
  • <10%
  • >0.9
Physical
Description Value
  • Operating Temperature
  • Operating Humidity
  • Storage Temperature
  • LED Type
  • Housing Material
  • Housing Color
  • 25°C to 2°C
  • 65% RH
  • -20oC to 45oC
  • 2835
  • PC+Aluminum
  • White
