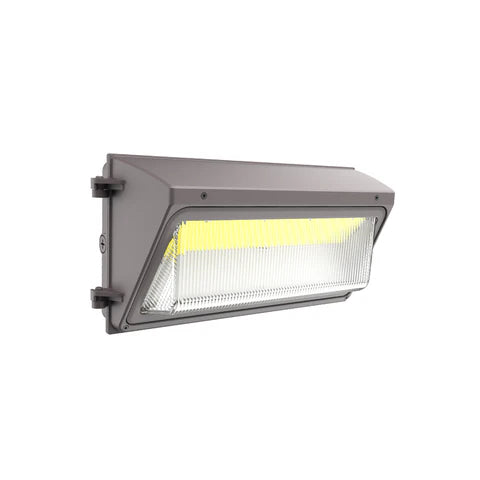

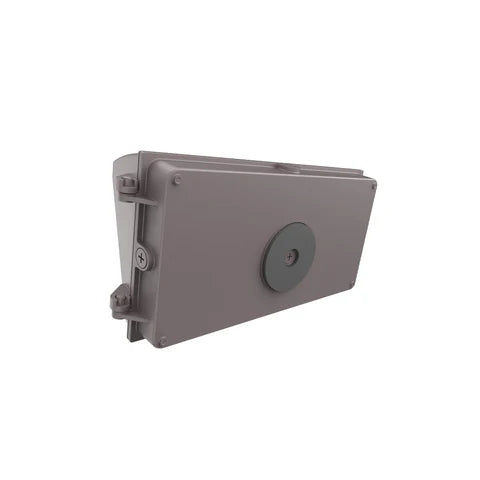

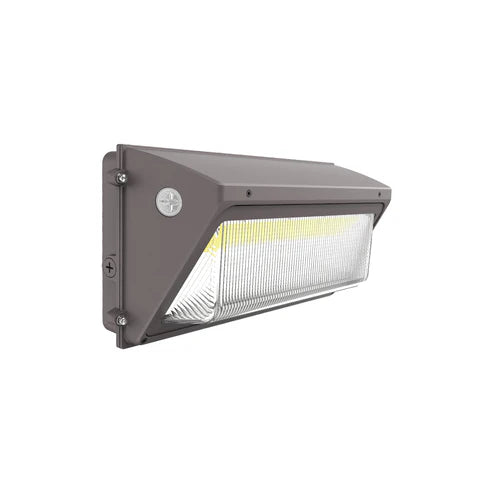

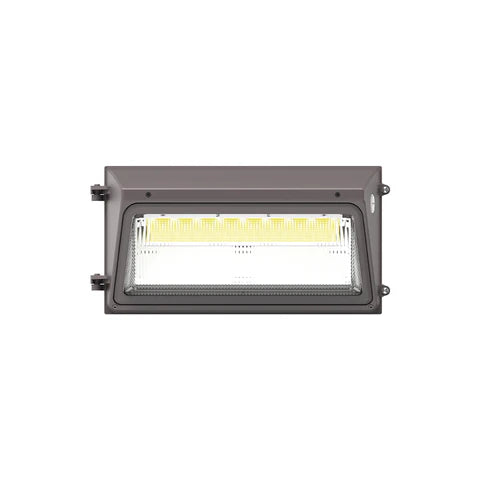

LED Wall Pack | Adj Watt 80W/100W/120W/150W | 22500 Lumens | Adj CCT 3000K/4000K/5000K | 120-277Vac

LED Wall Pack | Adj Watt 80W/100W/120W/150W | 22500 Lumens | Adj CCT 3000K/4000K/5000K | 120-277Vac

Built In Photocell - Bronze Housing - IP65 - UL & DLC Listed - 5 Year

  • Up to 150 lm/W
  • Adjustable wattages
  • Adjustable CCT
  • Built-in photocell with ON/OFF switch
  • 0-10V Dimmable
  • Bronze Housing
  • Durable glass diffuser
  • Input Voltage 120-277VAC
  • UL & DLC listed
  • 5-year warranty
This LED Wall Pack from Nothing But LEDs delivers exceptional performance, flexibility, and durability—making it the go-to solution for a wide range of commercial and industrial outdoor applications. Whether lighting up building perimeters, loadin...
View Important Details
SKU: 1560994
Regular price $134.99 ea.
Sale price $134.99 ea. Regular price ea.
Call for Bulk Order
800-414-8919
Product Details
  • Up to 150 lm/W
  • Adjustable wattages
  • Adjustable CCT
  • Built-in photocell with ON/OFF switch
  • 0-10V Dimmable
  • Bronze Housing
  • Durable glass diffuser
  • Input Voltage 120-277VAC
  • UL & DLC listed
  • 5-year warranty

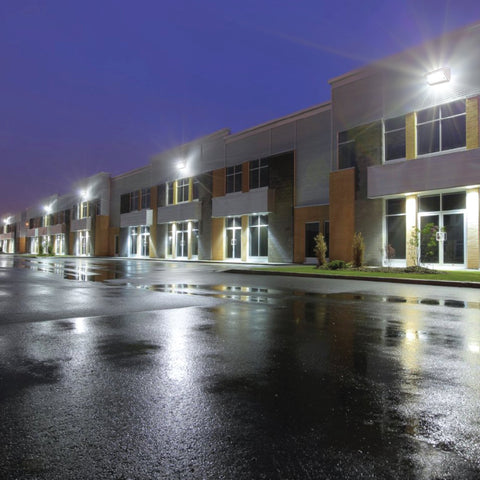

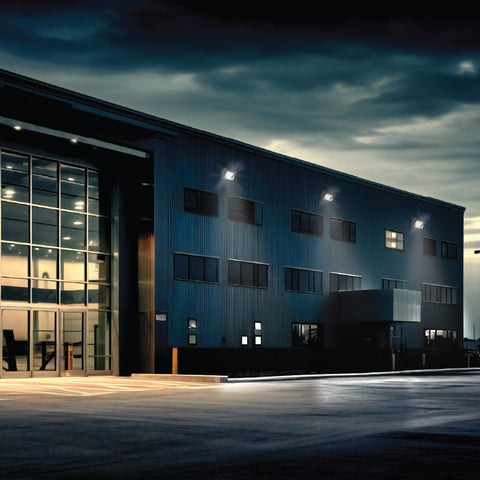

This LED Wall Pack from Nothing But LEDs delivers exceptional performance, flexibility, and durability—making it the go-to solution for a wide range of commercial and industrial outdoor applications. Whether lighting up building perimeters, loading docks, warehouses, schools, or security zones, the Wall Pack provides brilliant, energy-efficient illumination exactly where it’s needed. With an output of up to 150 lumens per watt, this fixture ensures maximum energy savings without sacrificing brightness. It features 4 adjustable wattages and 3 adjustable CCTs, offering unmatched versatility on-site. The integrated dusk-to-dawn photocell adds effortless automation for worry-free operation and even greater efficiency. Built to withstand tough environments, the Wall Pack features a rugged die-cast aluminum body, durable glass lens, and IP65-rated protection, ensuring reliable performance in all weather conditions.

  • Up to 150 lm/W
  • Adjustable wattages
  • Adjustable CCT
  • Built-in photocell with ON/OFF switch
  • 0-10V Dimmable
  • Bronze Housing
  • Durable glass diffuser
  • Input Voltage 120-277VAC
  • UL & DLC listed
  • 5-year warranty
Spec Sheet and Reports
General Performance
Description Value
  • Model #
  • Adjustable Watt
  • Max Lumens
  • Lumen Efficacy
  • Color Temperature
  • CRI (Ra)
  • Light Spread
  • Diffuser Type
  • WP09A-18-150L-S2D4C3
  • 80W / 100W / 120W / 150W
  • 22500
  • Up to 150LM/W
  • 3000K / 4000K / 5000K
  • >80
  • 100o (Type IV)
  • Glass Lens
Electrical
Description Value
  • Input Voltage
  • Frequency
  • Dimming
  • Power Factor
  • Driver Surge Protection
  • Driver Brand
  • Driver Model
  • Flicker Percent
  • 120-277Vac
  • 50/60Hz
  • 0-10V
  • ≥0.90
  • L/N 6KV, L/N-P 6KV
  • Sosen
  • SS-160NH
  • ≤30%
Physical
Description Value
  • Operating Temperature
  • Operating Humidity
  • Storage Temperature
  • Storage Humidity
  • LED Brand
  • LED Type
  • LED QTY
  • Construction
  • -40°C To 45°C
  • 5%RH To 95%RH
  • -40°C To 90°C
  • 5%RH To 95%RH
  • LUMILEDS
  • SMD2835
  • 624 Pcs
  • Die-cast Aluminum
