Cloud LED Linear High Bay | 320 Watt | 25000 Lumens | 6500K | White Housing | 120V-277V

Cloud LED Linear High Bay | 320 Watt | 25000 Lumens | 6500K | White Housing | 120V-277V

White Housing - 4ft - UL Listed - 5 Year Warranty

  • Ultra-thin Sleek Design
  • Galvanized Steel with white paint
  • PMMA Lens with customized cloud diffuser
  • 1-10V Dimmable
  • 320W with 25000 delivered lumens
  • Standard Chain mount included
  • Universal 120-277Vac
  • UL Listed
  • 5 years warranty
Nothing But LED's Linear High Bay is the most innovative and revolutionary product of 2023. It enhances the aesthetically pleasing experience of the ceiling by providing a realistically close simulation of the natural sky in warehouses or high-cei...
View Important Details
SKU: 1540303
Regular price $169.99 ea.
Sale price $169.99 ea. Regular price ea.
Call for Bulk Order
800-414-8919
Product Details
  • Ultra-thin Sleek Design
  • Galvanized Steel with white paint
  • PMMA Lens with customized cloud diffuser
  • 1-10V Dimmable
  • 320W with 25000 delivered lumens
  • Standard Chain mount included
  • Universal 120-277Vac
  • UL Listed
  • 5 years warranty

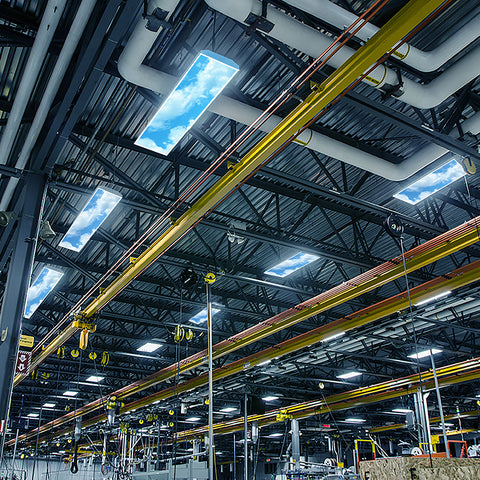

Nothing But LED's Linear High Bay is the most innovative and revolutionary product of 2023. It enhances the aesthetically pleasing experience of the ceiling by providing a realistically close simulation of the natural sky in warehouses or high-ceiling retail shops. High Bay improves focus and concentration by reducing glare and providing uniform illumination. Its delivered lumens of 25000 are ideal for ceiling heights of up to 20 feet. High Bay Luminaires are easy to install and come with a variety of mounting options. High Bay luminaires are ideal for warehouses and high-end retail outlets. This UL certified High Bay has a 5-year warranty.



  • Ultra-thin Sleek Design
  • Galvanized Steel with white paint
  • PMMA Lens with customized cloud diffuser
  • 1-10V Dimmable
  • 320W with 25000 delivered lumens
  • Standard Chain mount included
  • Universal 120-277Vac
  • UL Listed
  • 5 years warranty.
General Performance
Description Value
  • Model #
  • Wattage
  • Lumen
  • Lumen Efficacy
  • Color Temperature
  • CRI (Ra)
  • Beam Angle
  • Diffuser Type
  • BLT-PHB07-320WBFW1A1-WH65
  • 320W
  • 25000LM
  • Up to 81LM/W
  • 6500K
  • >80
  • 90° Degree
  • PMMA Lens
Electrical
Description Value
  • Input Voltage
  • Frequency
  • Dimming
  • Power Factor
  • Driver Surge Protection
  • Flicker Percent
  • 120-277Vac
  • 50/60Hz
  • 1-10V
  • ≥0.9
  • L-N : 2KV. L/N-PE : 4KV
  • No Flickering
Physical
Description Value
  • Operating Temperature
  • Operating Humidity
  • Storage Temperature
  • Storage Humidity
  • LED Brand
  • LED Type
  • LED QTY
  • Housing
  • Housing Color
  • 40°C To 50°C
  • 20%-90%RH
  • -40°C To 80°C
  • 10% - 95% RH
  • Lumileds
  • SMD 2835 (0.5W)
  • 1215 PCS
  • Lamp Body Material Galvanized Sheet
  • White
