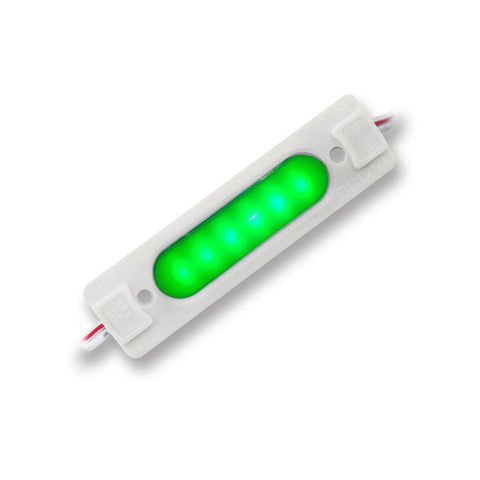

LED Module High Efficiency | 1.8 Watt | Green | 12V | IP65 | UL Listed | 5 Year Warranty | Pack of 50 - Nothing But LEDs

LED Module High Efficiency | 1.8 Watt | Green | 12V

IP65 - UL Listed - 5 Year Warranty

  • 1.8 Watt per module, specially designed for thicker large channel letters
  • Beam angle 180°
  • IP65 waterproof rated
  • 12V DC input
  • UL Listed
  • 5-year warranty
Nothing But LEDs’ LED modules are high-quality lighting solutions specifically designed for new construction or retrofitting medium to large-sized channel letters. Available in White, Red, Green, and Blue, these modules can be easily customized to...
View Important Details
SKU: 1530700
Regular price $47.99
Sale price $47.99 Regular price

@$0.96 ea.
Sold as a Bag of 50

Call for Bulk Order
800-414-8919
Product Details
  • 1.8 Watt per module, specially designed for thicker large channel letters
  • Beam angle 180°
  • IP65 waterproof rated
  • 12V DC input
  • UL Listed
  • 5-year warranty

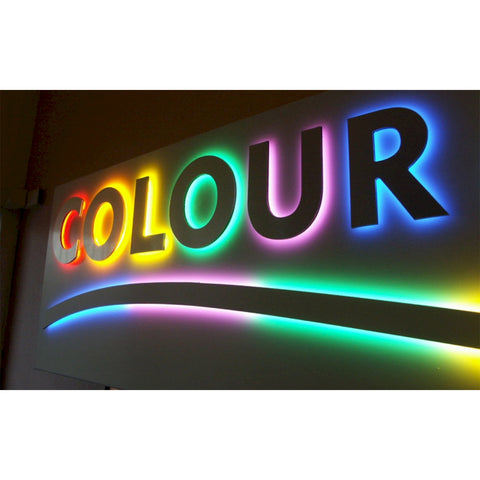

Nothing But LEDs’ LED modules are high-quality lighting solutions specifically designed for new construction or retrofitting medium to large-sized channel letters. Available in White, Red, Green, and Blue, these modules can be easily customized to meet any project specification. Installation is simple and reliable using double-sided VHB 3M tape, ensuring long-lasting performance. The IP65-rated, ultrasonically welded body provides strong water resistance, making these modules ideal for demanding outdoor signage applications.

  • 1.8 Watt per module, specially designed for thicker large channel letters
  • Beam angle 180°
  • IP65 waterproof rated
  • 12V DC input
  • UL Listed
  • 5-year warranty
General Performance
Description Value
  • Model
  • Watt
  • GLMD145-G
  • 1.8W
Electrical
Description Value
  • Beam Angle
  • Input Voltage
  • Rated Current per Module
  • Power consumption per Module

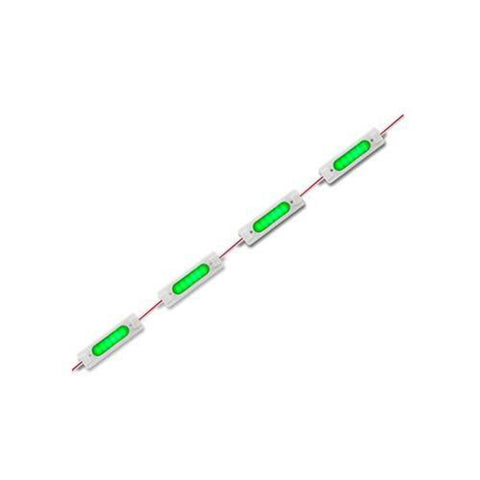

  • Chain can be subdivided
  • 180°
  • 12V
  • 178mA
  • 2.1W
  • Every 1 Module
Physical
Description Value
  • Operating Temperature
  • Storage Temperature
  • Consecutive Modules connected
  • LED Brand
  • LED Type
  • LED per Module
  • Material Housing
  • -25°C TO 60°C
  • -30°C TO 70°C
  • Max. 40
  • San’an
  • SMD5730
  • 9
  • Aluminium PCB board
