LED Module High Efficiency | 1.8 Watt | Blue | 12V | IP65 | UL Listed | 5 Year Warranty | Pack of 50 - Nothing But LEDs

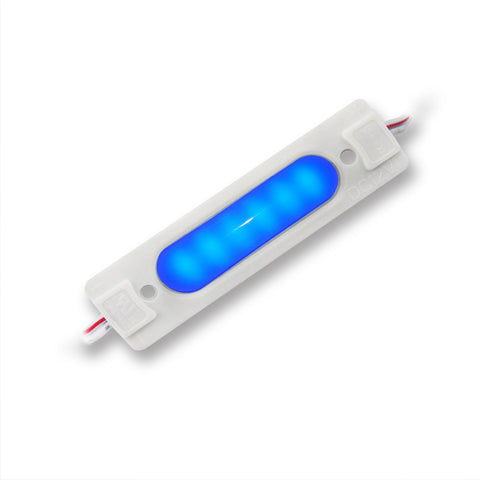

LED Module High Efficiency | 1.8 Watt | Blue | 12V

IP65 - UL Listed - 5 Year Warranty

  • High lumens per watt.
  • High Efficiency / Blue / 1.8 Watt / 6500K
  • 1.8 Watt per module, specially designed for thicker large channel letters.
  • 150-degree beam angle.
  • IP65 Waterproof Rated.
  • 12V DC input.
  • UL listed.
  • 5 years warranty.
Nothing But LED's modules are high quality and specially designed for new construction or retrofit of medium size and Large size channel letters. Available in white, green, red, and Blue colors. These modules are easily customized to meet any cust...
View Important Details
SKU: 1530699
$47.99
$47.99

@$0.96 ea.
Sold as a Bag of 50

Call for Bulk Order
800-414-8919
Product Details
  • High lumens per watt.
  • High Efficiency / Blue / 1.8 Watt / 6500K
  • 1.8 Watt per module, specially designed for thicker large channel letters.
  • 150-degree beam angle.
  • IP65 Waterproof Rated.
  • 12V DC input.
  • UL listed.
  • 5 years warranty.

Nothing But LED's modules are high quality and specially designed for new construction or retrofit of medium size and Large size channel letters. Available in white, green, red, and Blue colors. These modules are easily customized to meet any customer specification. Installation with double-sided VHB 3M tape ensures these modules will stand the test of time. An IP65, ultrasonically welded body also guarantees water resistance in signage applications.

  • High lumens per watt.
  • High Efficiency / Blue / 1.8 Watt / 6500K
  • 1.8 Watt per module, specially designed for thicker large channel letters.
  • 150-degree beam angle.
  • IP65 Waterproof Rated.
  • 12V DC input.
  • UL listed.
  • 5 years warranty.
      Spec Sheet and Reports
      General Performance
      Description Value
      • Model#
      • Product
      • Wattage
      • Lumen
      • Lumen Efficacy
      • Color Temperature
      • GLMD145-W
      • LED Module High Efficiency 6500K/1.8W White 12V Pack of 50
      • 1.8W
      • Up to 252LM/Module
      • Up to 161LM/W
      • 6500K
      Electrical
      Description Value
      • Input Voltage
      • Rated Current per Module
      • Power consumption per Module
      • Chain can be subdivided
      • 12V
      • 180.0mA
      • 2.1W
      • Every 1 Module
      Physical
      Description Value
      • Operating Temperature
      • Storage Temperature
      • Consecutive Modules connected
      • LED Brand
      • LED Type
      • LEDper Module
      • -25°C TO 60°C
      • -30°C TO 70°C
      • Max. 40
      • San’an
      • SMD5730
      • 8
