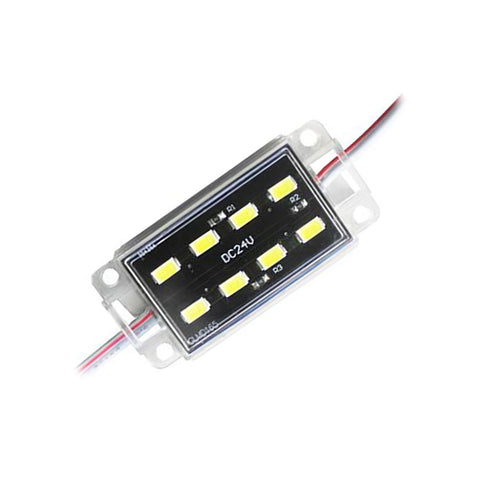

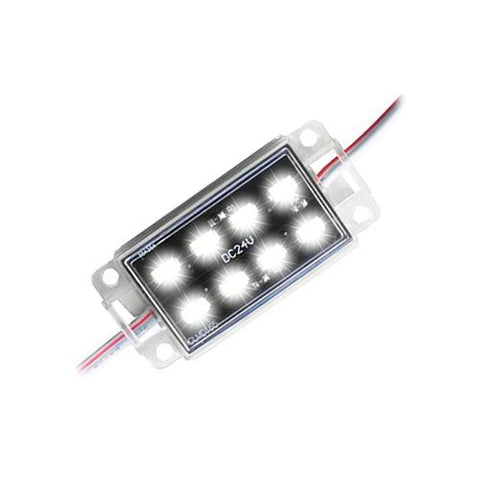

LED Signage Module | 1.44 Watt | 248 Lumens | White | 6500K | 24V | IP68 | UL Listed | 5 Year Warranty | Pack of 50 - Nothing But LEDs

LED Signage Module | 1.44 Watt | 248 Lumens | White | 6500K | 24V

IP68 - UL Listed - 5 Year Warranty

  • Up to 170 Lumens per watt
  • 1.44 Watt per module. Specially designed for thick large channel letters
  • Specially design for thicker large channel letters
  • 120-degree beam angle
  • IP68 Rated
  • 24V DC input
  • UL Listed
  • 5 years warranty

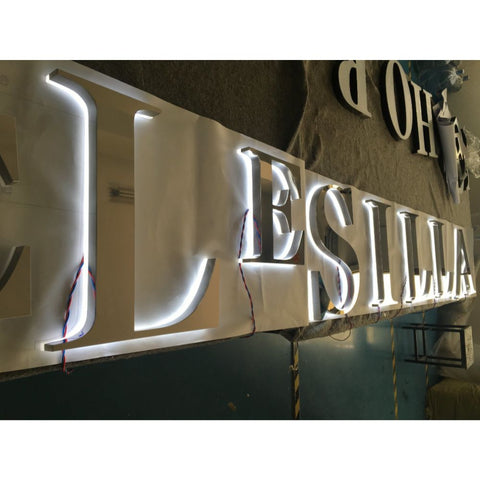

Nothing But LED's modules are high quality and specially designed for new construction or retrofit of medium size and Large size channel letters. Available in white color. These modules are easily customized to meet any customer specification. Ins...
View Important Details
SKU: 1530702
$79.99
$79.99

@$1.60 ea.
Sold as a Bag of 50

Call for Bulk Order
800-414-8919
Product Details
  • Up to 170 Lumens per watt
  • 1.44 Watt per module. Specially designed for thick large channel letters
  • Specially design for thicker large channel letters
  • 120-degree beam angle
  • IP68 Rated
  • 24V DC input
  • UL Listed
  • 5 years warranty

Nothing But LED's modules are high quality and specially designed for new construction or retrofit of medium size and Large size channel letters. Available in white color. These modules are easily customized to meet any customer specification. Installation with screws ensures these modules will stand the test of time. An IP68, ultrasonically welded body also guarantees water resistance in signage applications.

  • Up to 170 Lumens per watt
  • 1.44 Watt per module. Specially designed for thick large channel letters
  • Specially design for thicker large channel letters
  • 120-degree beam angle
  • IP68 Rated
  • 24V DC input
  • UL Listed
  • 5 years warranty
Spec Sheet and Reports
General Performance
Description Value
  • Model#
  • Product
  • Wattage
  • Lumen
  • Lumen Efficacy
  • Color Temperature
  • GLMD165
  • LEDWaterproof Module 1.44W DC24White Pack of 50
  • 1.44W
  • Up to 248LM
  • Up to 172LM/W
  • 6500K
Electrical
Description Value
  • Input Voltage
  • Rated Current per Module
  • Power consumption per Module
  • Chain can be subdivided
  • 24V
  • 60.0mA
  • 1.5W
  • Every 1 Module
Physical
Description Value
  • Operating Temperature
  • Storage Temperature
  • Consecutive Modules connected
  • LED Brand
  • LED Type
  • LEDper Module
  • -25°C TO 60°C
  • -30°C TO 70°C
  • Max. 40
  • San’an
  • SMD5730
  • 8
