LED Sign Tube | 4.5 Watt | 507 Lumens | 6500K | 120V-277V | 18" | Clear | Single Sided | IP44 | ETL Listed | 5 Year Warranty - Nothing But LEDs

LED Sign Tube | 4.5 Watt | 507 Lumens | 6500K | 120-277V

18" - ETL Listed - 5 Year Warranty

  • Up to 125 lumens per watt
  • Operating temperature: -20°C to 45°C
  • High energy efficiency, long lifespan, 50,000-hour lifetime

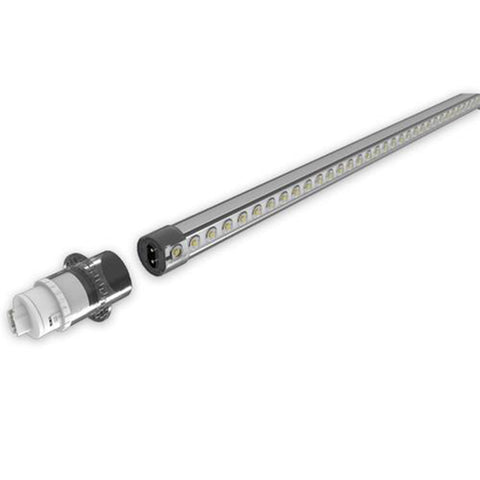

  • Lockable and rotatable R17d end cap ensures easy installation and consistent light distribution
  • Integral LED driver (non-isolated) eliminates the need for an external driver or ballast
  • ETL listed
  • High-quality and efficient Hongli 2835 chips
  • IP44 rated — touchproof and resistant to dust
  • Universal operation at 120–277VAC, 50–60Hz
  • Environment-friendly with no mercury
  • Type B ballast bypass design offers easy installation and operation
  • Direct replacement for fluorescent lamps
  • Reduced maintenance and replacement costs
  • Available in four different sizes
  • Option to create virtually any size by combining two parts of the product in one tube
  • Non-flicker optical lens covers eliminate hot spots and ensure consistent light distribution
  • Aluminum + PC lamp housing ensures less breakage and good heat dissipation
Our new and revolutionary Sign Tube offers significant energy efficiency and lifetime improvements over fluorescent lamps. Sign Tube lamps are installed by bypassing existing fluorescent ballasts and hard-wiring tombstone lamp holders directly to ...
View Important Details
SKU: 1520728
$24.99 ea.
$24.99 ea. ea.

Sold as a Pack 25
for $624.75

Call for Bulk Order
800-414-8919

Compatible Add-ons

Bracket With 2 Transparent Joints For LED Sign Tube

Bracket With 2 Transparent Joints For LED Sign Tube

$18.99 ea.

End Cap R17 for Sign Tube

End Cap R17 for Sign Tube

$18.99 ea.

Hanging Chain For LED Sign Tube

Hanging Chain For LED Sign Tube

$18.99 ea.

Power Code for LED Sign Tube

Power Code for LED Sign Tube

$17.99 ea.

Transparent Joint for Sign Tube

Transparent Joint for Sign Tube

$18.99 ea.

Product Details
  • Up to 125 lumens per watt
  • Operating temperature: -20°C to 45°C
  • High energy efficiency, long lifespan, 50,000-hour lifetime
  • Lockable and rotatable R17d end cap ensures easy installation and consistent light distribution
  • Integral LED driver (non-isolated) eliminates the need for an external driver or ballast
  • ETL listed
  • High-quality and efficient Hongli 2835 chips
  • IP44 rated — touchproof and resistant to dust
  • Universal operation at 120–277VAC, 50–60Hz
  • Environment-friendly with no mercury
  • Type B ballast bypass design offers easy installation and operation
  • Direct replacement for fluorescent lamps
  • Reduced maintenance and replacement costs
  • Available in four different sizes
  • Option to create virtually any size by combining two parts of the product in one tube
  • Non-flicker optical lens covers eliminate hot spots and ensure consistent light distribution
  • Aluminum + PC lamp housing ensures less breakage and good heat dissipation

Our new and revolutionary Sign Tube offers significant energy efficiency and lifetime improvements over fluorescent lamps. Sign Tube lamps are installed by bypassing existing fluorescent ballasts and hard-wiring tombstone lamp holders directly to incoming AC power leads. Dual-ended bypass lamps eliminate the need to replace shunted tombstone lamp holders in existing fluorescent luminaires. An AC power cord is also provided for new installations.

  • Input Voltage 120-277VAC
  • 50,000 hr lifespan
  • Type B/Double Ended Power
  • Integral LED Driver
  • IP44 Rated
  • 12 LED Qty
  • Environment Friendly
  • Non-flicker
  • Beam Angle 180°
  • ETL Listed
  • 5 Years Warranty
Spec Sheet and Reports
General Performance
Description Value

  • Watt
  • Color Temperature Adj.
  • Lumens
  • Lumen Efficacy
  • CRI (Ra)
  • Diffuser Type
  • Beam Angle

  • 4.5W
  • 6500K
  • Up to 507LM
  • Up to 113LM/W
  • >80
  • Clear
  • 180°
Electrical
Description Value
  • Input Voltage
  • PF
  • 120-277VAC 50/60Hz
  • ≥0.9
Physical
Description Value
  • DLC Type
  • Power Ends
  • Size
  • Lens
  • Type B
  • 2 Power Ends
  • 12”
  • Clear Cover
