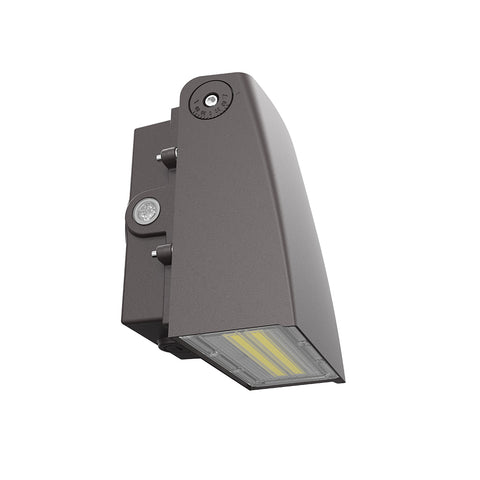

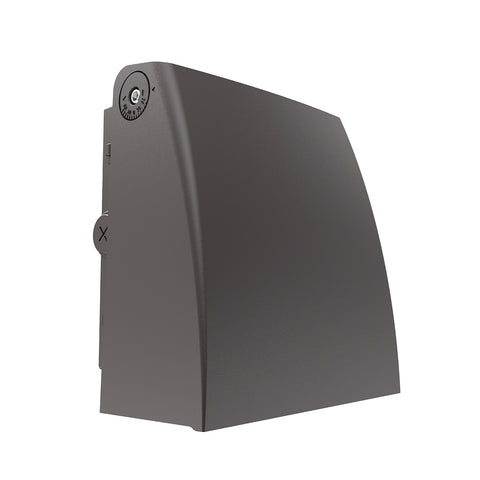

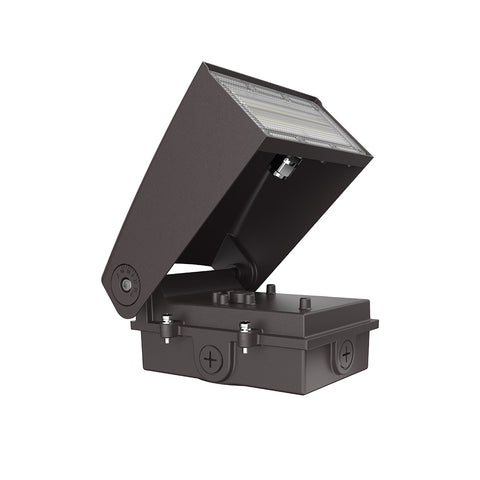

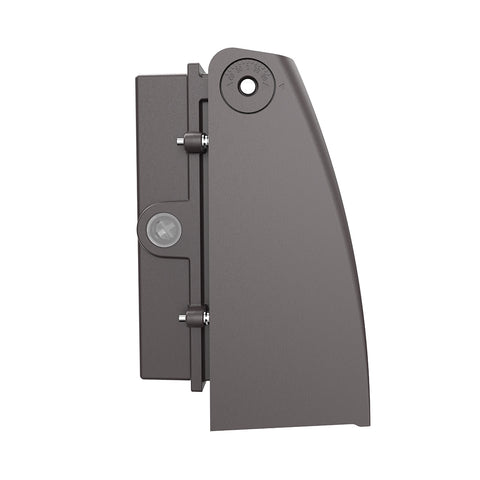

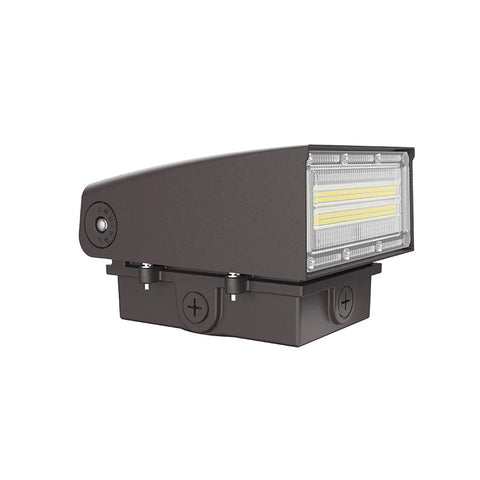

LED Adjustable Wall Pack | Adj Watt 40W/60W/80W/100W | 13000 Lumens | Adj CCT 3000K-4000K-5000K | 120-347Vac

LED Adjustable Wall Pack | Adj Watt 40W/60W/80W/100W | 13000 Lumens | Adj CCT 3000K-4000K-5000K | 120-347Vac

UL & DLC Listed - 5 Year Warranty

  • Up to 130 lm/W
  • Wattage Adj. 40W / 60W / 80W / 100W
  • CCT Adjustable 3000K / 4000K / 5000K
  • Input Voltage 120-347VAC
  • LED Type 2835
  • Easy to install and operate
  • Built-in Photocell
  • 0-10V dimming
  • Die Cast Aluminum Housing
  • UL & DLC listed
  • 5 Years warranty
Nothing But LEDs Adjustable Wall Pack is the newest, most innovative and feature rich product of 2024. It offers four adjustable wattages and 3 adjustable CCT selection with energy-efficient LED technology. Our adjustable wall pack comes with Built-in photocell. Our adjustable wall pack luminaires comes with die cast aluminum housings and a polycarbonate lens to stand up for many years of punishing environmental conditions. Up to 130 Lumens p...
View Important Details
SKU: 1560836
$89.99 ea.
$89.99 ea. ea.
Call for Bulk Order
800-414-8919
Spec Logo Spec Logo Spec Logo
Product Details
  • Up to 130 lm/W
  • Wattage Adj. 40W / 60W / 80W / 100W
  • CCT Adjustable 3000K / 4000K / 5000K
  • Input Voltage 120-347VAC
  • LED Type 2835
  • Easy to install and operate
  • Built-in Photocell
  • 0-10V dimming
  • Die Cast Aluminum Housing
  • UL & DLC listed
  • 5 Years warranty

Nothing But LEDs Adjustable Wall Pack is the newest, most innovative and feature rich product of 2024. It offers four adjustable wattages and 3 adjustable CCT selection with energy-efficient LED technology. Our adjustable wall pack comes with Built-in photocell. Our adjustable wall pack luminaires comes with die cast aluminum housings and a polycarbonate lens to stand up for many years of punishing environmental conditions.

  • Up to 130 Lumens per watt
  • Wattage Adj. 40W / 60W / 80W / 100W
  • CCT Adjustable 3000K / 4000K / 5000K
  • Input Voltage 120-347VAC
  • LED Type 2835
  • Easy to install and operate
  • Built-in Photocell
  • 0-10V dimming
  • Die Cast Aluminum Housing
  • UL & DLC listed
  • 5 Years warranty
Spec Sheet and Reports
General Performance
Description Value

  • Wattage Adjustable
  • Lumen
  • Lumen Efficacy
  • Color Temperature
  • CRI (Ra)
  • Beam Angle
  • Lens Material

  • 40W / 60W / 80W /100W
  • 13000LM
  • Up to 130LM/W
  • 3000K / 4000K / 5000K
  • >80
  • 90° Degree
  • PC
  • Driver Brand
  • Driver Model
  • Operating Temperature
  • Operating Humidity
  • Storage Temperature
  • Storage Humidity
  • LED Brand
  • LED Type
  • LED QTY
  • Housing
  • Housing Color
  • Nothing But LED’s
  • BQ-120D2
  • -30°C TO 45°C
  • RH:10%~95%
  • -40°C TO 90°C
  • RH:5%~95%
  • Lumileds
  • 2835
  • 288PCS
  • Die-cast Aluminum
  • Bronze
Electrical
Description Value
  • Input Voltage
  • Frequency
  • Dimming
  • Light Distribution
  • Power Factor
  • THD
  • 120-347Vac
  • 50/60Hz
  • 0-10V
  • Type II
  • ≥0.9
  • <20%
Frequently Asked Questions
How do the adjustable wattage settings (40W, 60W, 80W, 100W) affect light output and energy consumption?

The adjustable wattage lets you choose how much power the wall pack uses and how bright it will be. Lower settings like 40W and 60W will use less energy and provide softer illumination for smaller areas or lower traffic zones. Higher settings like 80W and 100W increase brightness and are better for larger or more demanding spaces. This flexibility lets you match the light level and energy use to the needs of the location without buying multiple fixtures.

What is the difference between the 3000K, 4000K, and 5000K CCT options, and when should each be used?

The CCT options change the color of the light. A 3000K setting produces a warmer tone that feels more inviting around entrances and walkways. 4000K is a neutral white that works well for general outdoor lighting where a balance between warmth and brightness is desired. 5000K gives a cooler, daylight-like tone that improves visibility and clarity in areas like parking zones, security perimeters, and industrial walkways. This lets you select the look and visibility you want for each application.

Is this adjustable LED wall pack compatible with 120–347VAC electrical systems?

Yes. This wall pack is made to run on a wide voltage range from 120V up to 347V. That means it can be installed on most common electrical systems used in commercial and industrial buildings without needing special transformers or additional power equipment.

Does the built-in photocell allow automatic dusk-to-dawn operation?

Yes. The built-in photocell senses available daylight and automatically turns the light on at night and off when the sun comes up. This simplifies operation because you do not need separate timers or switches, and it helps save energy by ensuring the fixture only runs when needed.

Can this wall pack be used with 0–10V dimming controls?

Yes. The product is compatible with 0–10V dimming, so you can connect it to commercial dimming controls or building management systems that support this standard. This lets you adjust the light output further based on occupancy, time of night, or other control strategies.

What outdoor and commercial applications are best suited for this adjustable LED wall pack?

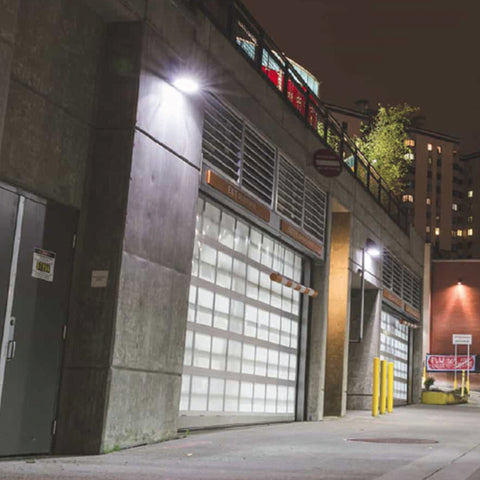

 This adjustable wall pack is suitable for many outdoor commercial and industrial settings. It works well for building entrances, walkways, loading docks, security perimeters, parking lot edges, warehouses, schools, hospitals, retail exteriors, and other spaces where customizable brightness and reliable outdoor lighting are important. Its durable design and flexible settings make it a good choice for sites where different lighting levels are needed across areas.

.
