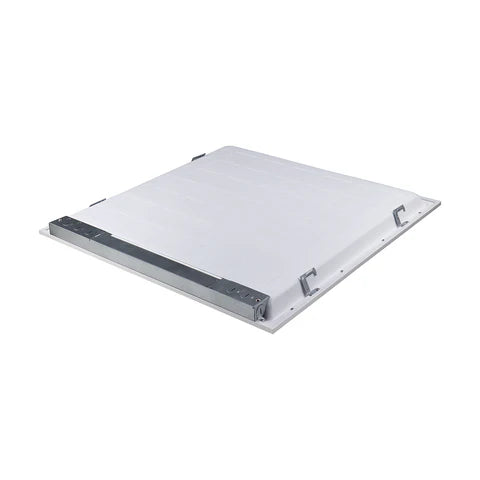

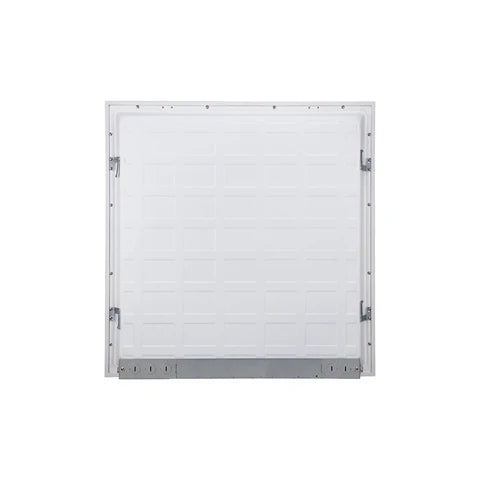

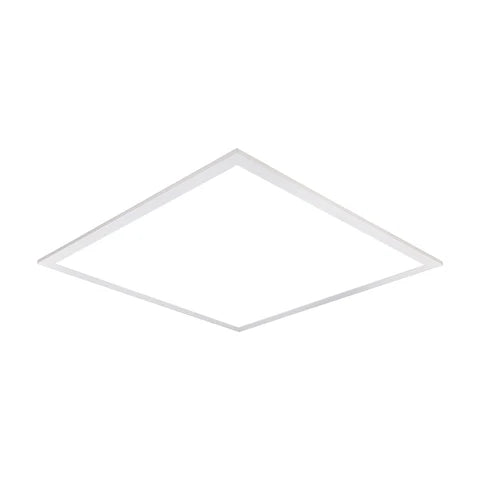

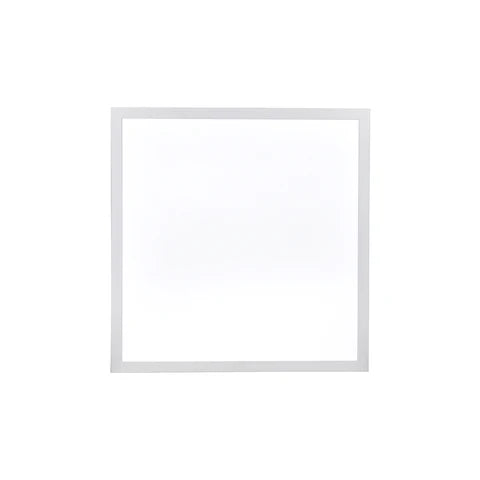

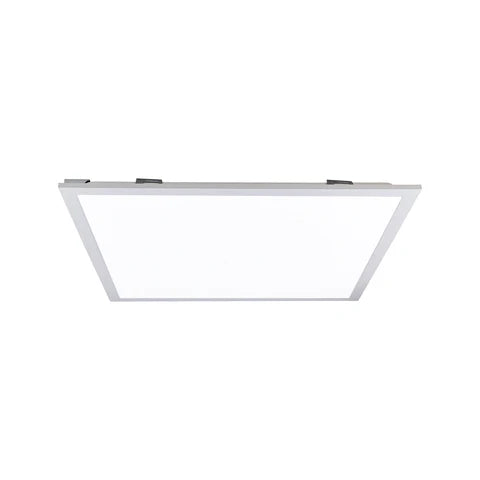

LED Backlit Panel | Adj Watt 20W/25W/30W/35W/40W | 5000 Lumens | Adj CCT 3000K-3500K-4000K-5000K-6500K | 100-277V

LED Backlit Panel | Adj Watt 20W/25W/30W/35W/40W | 5000 Lumens | Adj CCT 3000K-3500K-4000K-5000K-6500K | 100-277V

2'X2' - ETL & DLC Listed - 5 Year warranty

  • Up to 125 lm/W
  • Available in 2x2
  • Adjustable wattage
  • Adjustable CCT
  • 0-10V Dimmable
  • 120° Beam Angle
  • White housing
  • Input Voltage 100-277VAC
  • ETL & DLC listed
  • 5-year warranty
Nothing But LEDs LED Backlit Panels offer exceptional value with ultra-thin, super-bright performance and uniform illumination, all while being one of the most economical options available. These panels provide outstanding energy efficiency and offer adjustable wattage and CCT options, allowing for maximum flexibility to meet the lighting needs of any environment at a low price point. Designed with a sleek backlit design, the LED Backlit Panel...
View Important Details
SKU: 1570062
$29.99 ea.
$29.99 ea. ea.

Sold as a Pack 4
for $119.96

Call for Bulk Order
800-414-8919
Spec Logo Spec Logo Spec Logo
Product Details
  • Up to 125 lm/W
  • Available in 2x2
  • Adjustable wattage
  • Adjustable CCT
  • 0-10V Dimmable
  • 120° Beam Angle
  • White housing
  • Input Voltage 100-277VAC
  • ETL & DLC listed
  • 5-year warranty

Nothing But LEDs LED Backlit Panels offer exceptional value with ultra-thin, super-bright performance and uniform illumination, all while being one of the most economical options available. These panels provide outstanding energy efficiency and offer adjustable wattage and CCT options, allowing for maximum flexibility to meet the lighting needs of any environment at a low price point. Designed with a sleek backlit design, the LED Backlit Panels provide soft, ambient lighting that enhances the atmosphere of any space. The slim profile and advanced LED technology make the LED Backlit Panels the ideal choice for both renovations and new construction projects. Whether installed in commercial buildings, offices, hospitals, libraries, hotels, or corridors, these panels deliver high-quality and affordable performance. Featuring a PS lens for uniform, glare-free lighting, the LED Backlit Panels ensure a comfortable and economical lighting experience. They can be recessed, suspended, or surface-mounted, offering versatile installation options.

  • Up to 125 lm/W
  • Available in 2x2
  • Adjustable wattage
  • Adjustable CCT
  • 0-10V Dimmable
  • 120° Beam Angle
  • White housing
  • Input Voltage 100-277VAC
  • ETL & DLC listed
  • 5-year warranty
Spec Sheet and Reports
General Performance
Description Value

  • Adjustable Watt
  • Max Lumens
  • Lumen Efficacy
  • Color Temperature
  • CRI (Ra)
  • Beam Angle
  • Diffuser Type

  • 20W/25W/30W/35W/40W
  • 5000Lm
  • Up to 125LM/W
  • 3000K / 3500K / 4000K / 5000K / 6500K
  • >80
  • 120°
  • PS Cover
  • Driver Model
  • Operating Temperature
  • Operating Humidity
  • LED Brand
  • LED Type
  • LED QTY
  • Housing Material
  • N/M
  • -20°C ~+35°C
  • 20% - 75%
  • Everfine
  • SMD2835
  • 90x2
  • Metal Housing + PS Cover
Electrical
Description Value
  • Input Voltage
  • Frequency
  • THD
  • Dimming
  • Power Factor
  • Flicker Free
  • 100-277Vac
  • 50/60Hz
  • <10%
  • 0-10V Dimmable
  • ≥0.95
  • Yes
Frequently Asked Questions
What are the main benefits of using a 2x4 architectural LED panel?

A 2x4 architectural LED panel provides wide, even light distribution across larger spaces while maintaining a clean, modern ceiling appearance. It improves energy efficiency, reduces maintenance compared to fluorescent troffers, and delivers consistent brightness with better visual comfort.

How does adjustable wattage help optimize energy consumption?

Adjustable wattage allows you to select the exact brightness level needed for the space. Instead of over-lighting an area, you can reduce the wattage to lower energy usage while still maintaining adequate illumination.

What CCT options are available, and how do they affect lighting appearance?

This panel offers 4000K, 5000K, and 6500K options. 4000K provides a neutral white light ideal for offices, 5000K gives a brighter and crisper look, and 6500K delivers a cool daylight appearance for high-visibility environments.

Is this architectural panel compatible with standard ceiling grids?

Yes. The 2x4 size is designed to fit directly into standard drop ceiling grid systems, making it suitable for both retrofit and new commercial installations.

Can these LED panels be surface mounted or suspended?

Yes. In addition to recessed grid installation, the panels can be surface mounted or suspended using compatible mounting kits, offering flexibility for different ceiling types.

How does the glare-free design improve visual comfort?

The laser-cut diffusing cover spreads light evenly and reduces harsh glare. This creates smoother illumination, minimizes eye strain, and improves comfort in environments where people spend long hours working.

.
