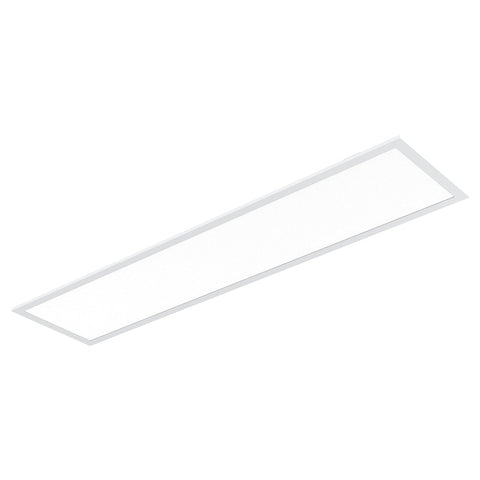

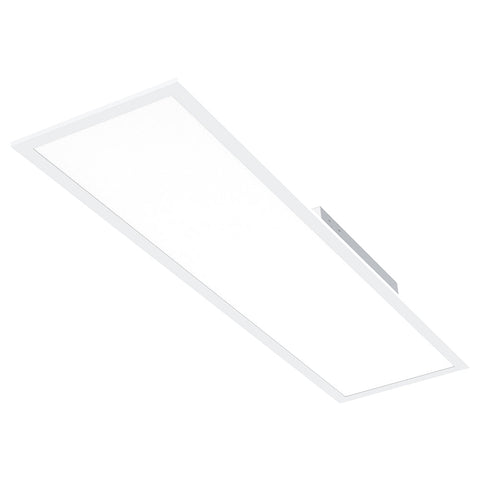

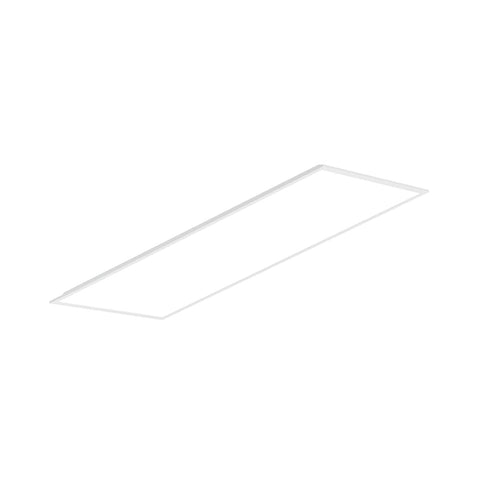

LED Backlit Panel | Adj Watt 20W/25W/30W/35W/40W | 5000 Lumens | Adj CCT 3000K-3500K-4000K-5000K-6500K | 120-277Vac

LED Backlit Panel | Adj Watt 20W/25W/30W/35W/40W | 5000 Lumens | Adj CCT 3000K-3500K-4000K-5000K-6500K | 120-277Vac

1'X4' - UL & DLC Listed - 5 Year Warranty

  • Up to 125 lm/W

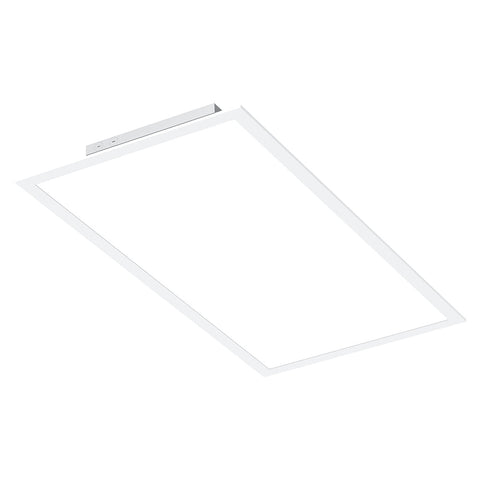

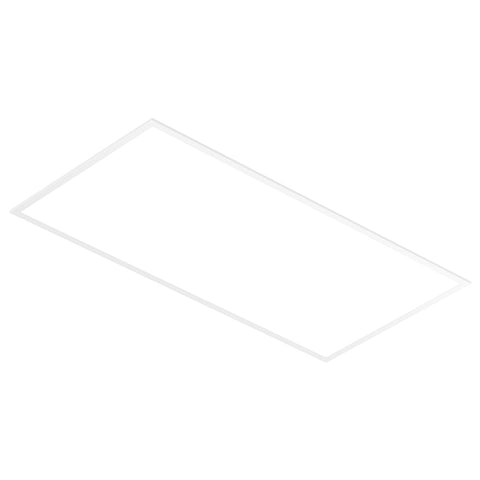

  • Available in 1x4 and 2x4
  • Adjustable Wattages
  • Adjustable CCT
  • Dimmable 0-10V
  • A flicker-free driver is available
  • Uniform light effect with Optic PMMA Lens
  • Recessed / Suspended / Surface mount
  • Input Voltage: 120–277Vac
  • UL and DLC-listed
  • 5-year warranty

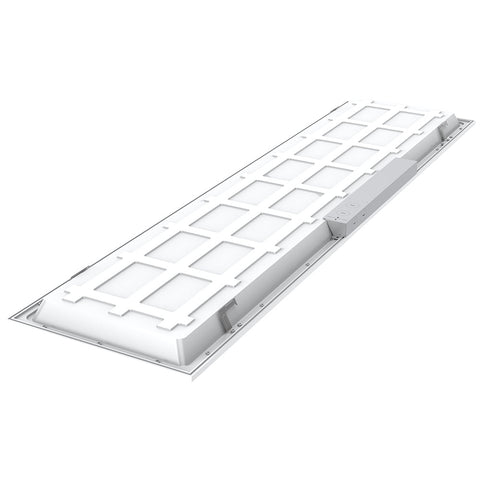

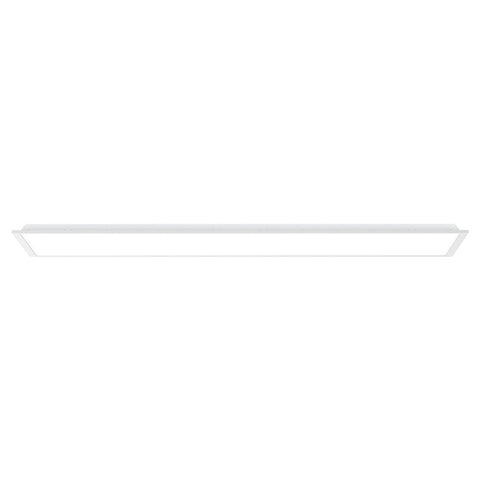

Nothing But LED's backlit panels are ultra-thin and super bright, which offers uniform illumination and excellent energy savings. Our panels deliver soft, ambient lighting in a popular backlit design. Panels are available in 5 Adjustable wattages and 5 Adjustable CCTs. The slim profile and energy-saving LED technology make the panels the ideal choice for renovation or new construction. It is also suitable for use in commercial buildings, libra...
View Important Details
SKU: 1560722
$44.99 ea.
$44.99 ea. ea.

Sold as a Pack 6
for $269.94

Call for Bulk Order
800-414-8919
Spec Logo Spec Logo Spec Logo
Product Details
  • Up to 125 lm/W
  • Available in 1x4 and 2x4
  • Adjustable Wattages
  • Adjustable CCT
  • Dimmable 0-10V
  • A flicker-free driver is available
  • Uniform light effect with Optic PMMA Lens
  • Recessed / Suspended / Surface mount
  • Input Voltage: 120–277Vac
  • UL and DLC-listed
  • 5-year warranty

Nothing But LED's backlit panels are ultra-thin and super bright, which offers uniform illumination and excellent energy savings. Our panels deliver soft, ambient lighting in a popular backlit design. Panels are available in 5 Adjustable wattages and 5 Adjustable CCTs. The slim profile and energy-saving LED technology make the panels the ideal choice for renovation or new construction. It is also suitable for use in commercial buildings, libraries, hospitals, offices, hotels, corridors, etc.

  • Available in 1x4 and 2x4
  • Up to 125 Lumens per watt
  • 5 Adjustable Wattages
  • 5 Adjustable CCT: 3K/3500K/4K/5K/6500K
  • Dimmable 0-10V
  • A flicker-free driver is available
  • Uniform light effect with Optic PMMA Lens
  • Recessed / Suspended / Surface mount
  • Input Voltage: 120–277Vac
  • UL and DLC-listed
  • 5-year warranty
Spec Sheet and Reports
General Performance
Description Value
  • Wattage Adjustable
  • Lumens
  • Lumen Efficacy
  • Color Temperature
  • CRI (Ra)
  • Beam Angle
  • Diffuser Type
  • 20W / 25W / 30W / 35W / 40W
  • Up to 5000LM
  • Up to 125LM/W
  • 3000K / 3500K / 4000K / 5000K / 6500K
  • >80
  • 120° Degree
  • PMMA Lens
  • Driver Model
  • Operating Temperature
  • Operating Humidity
  • Storage Humidity
  • LED Brand
  • LED Type
  • LED QTY
  • HXS
  • -20°C To 45°C
  • 10% - 90% RH
  • 10% - 90% RH
  • Lumileds
  • SMD 2835
  • 141 pcs
Electrical
Description Value
  • Input Voltage
  • Frequency
  • THD
  • Dimming
  • Power Factor
  • Flicker Free
  • 120-277Vac
  • 50/60Hz
  • <20%
  • 0-10V Dimmable
  • ≥0.90
  • Yes
Frequently Asked Questions
What are the benefits of using a backlit LED panel light?

Backlit LED panel lights produce smooth, even illumination across the entire surface of the panel. They eliminate hot spots and harsh shadows and create a visually comfortable environment. They are energy efficient and last longer than traditional fluorescent panels.

How do adjustable wattage and CCT improve lighting flexibility?

Adjustable wattage lets you choose the power level that matches the space’s needs, from lower power for general ambient lighting to higher power when stronger illumination is required. Adjustable CCT lets you select the color temperature from warm tones like 3000K to cooler tones like 6500K. This allows you to tailor the light color to the mood or task, whether you want soft light for offices or brighter, crisp light for detailed work areas.

Where can these LED backlit panels be installed?

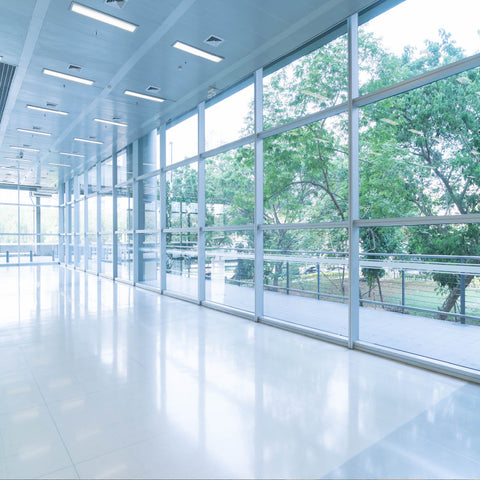

These LED panels can be installed in offices, classrooms, conference rooms, hallways, retail stores, healthcare facilities, and other commercial or institutional interiors. They are suitable for ceilings where even, comfortable light is desired and can also be used in residential settings where panel lighting is preferred.

What mounting options are available for this LED panel light?

These panels support several mounting options. They can be recessed into a grid ceiling, surface mounted with a frame kit, or suspended from the ceiling using cables or chains. This makes them adaptable to new construction and retrofit scenarios.

How does the PMMA lens improve light quality and uniformity?

The PMMA lens evenly distributes light across the panel surface, reducing glare and hotspots. It helps create a uniform illumination pattern that is easy on the eyes and suitable for spaces where visual comfort is important.

Are these LED backlit panels suitable for both new construction and retrofit projects?

Yes. These LED backlit panels work well in new construction because they can be integrated into ceiling systems during build out. They are also ideal for retrofit projects because they can replace existing fluorescent panels without major changes to ceiling structure or wiring.

.
