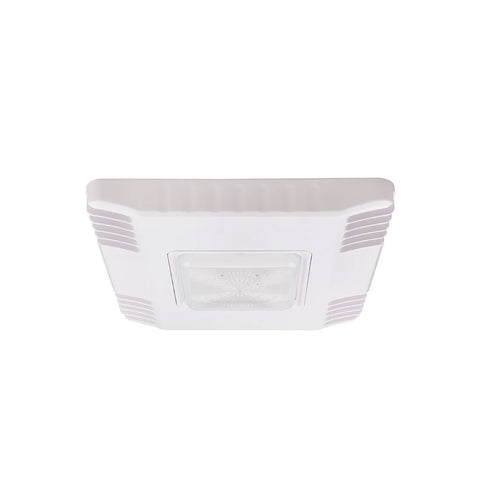

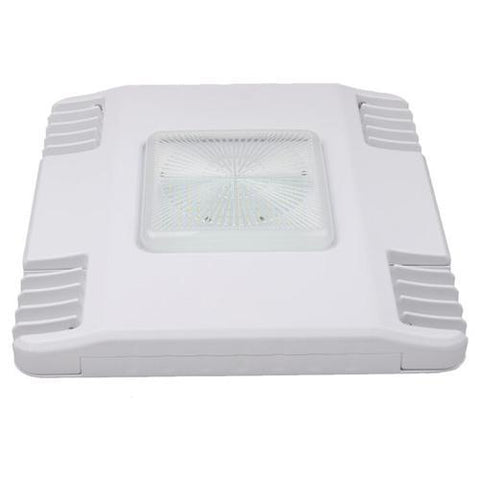

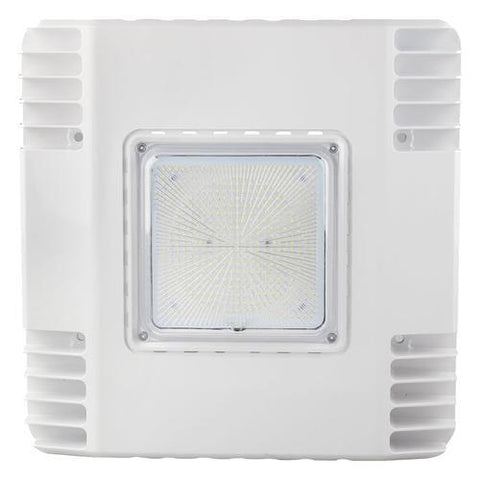

LED Canopy Light | 150 Watt | 22950 Lumens | 5700K | 120-277Vac

LED Canopy Light | 150 Watt | 22950 Lumens | 5700K | 120-277Vac

IP65 - UL & DLC Listed - 5 Year Warranty

  • Up to 130 lm/W
  • 150 Watt
  • 5700K CCT
  • 0-10V Dimmable
  • 110º Beam Angle
  • Built-in 10KV surge protector
  • Sosen VA driver
  • Direct surface or recessed mount
  • White housing
  • Input Voltage 120-277VAC
  • UL & DLC listed
  • 5-year warranty
Nothing But LED's Canopy Luminaire is the most economic fixture of its kind and offers excep­tional performance, efficiency, and a unique design. Features such as high lumens per watt, outstanding efficacy, and field serviceability, make it an ideal commercial canopy solution. The contractor-friendly canopy luminaire includes fasteners and a locking collar, making installation easy, secure, and water-tight. It can be surface mounted easily fro...
View Important Details
SKU: 1560848
$94.99 ea.
$94.99 ea. ea.
Call for Bulk Order
800-414-8919
Spec Logo Spec Logo Spec Logo
Product Details
  • Up to 130 lm/W
  • 150 Watt
  • 5700K CCT
  • 0-10V Dimmable
  • 110º Beam Angle
  • Built-in 10KV surge protector
  • Sosen VA driver
  • Direct surface or recessed mount
  • White housing
  • Input Voltage 120-277VAC
  • UL & DLC listed
  • 5-year warranty

Nothing But LED's Canopy Luminaire is the most economic fixture of its kind and offers excep­tional performance, efficiency, and a unique design. Features such as high lumens per watt, outstanding efficacy, and field serviceability, make it an ideal commercial canopy solution. The contractor-friendly canopy luminaire includes fasteners and a locking collar, making installation easy, secure, and water-tight. It can be surface mounted easily from below the canopy deck and also has the ability to be pen­dant mounted.

  • Up to 130 lm/W
  • 150 Watt
  • 5700K CCT
  • 0-10V Dimmable
  • 110º Beam Angle
  • Built-in 10KV surge protector
  • Sosen VA driver
  • Direct surface or recessed mount
  • White housing
  • Input Voltage 120-277VAC
  • UL & DLC listed
  • 5-year warranty
Spec Sheet and Reports
General Performance
Description Value
  • Model #
  • Wattage
  • Lumen
  • Lumen Efficacy
  • Color Temperature
  • CRI (Ra)
  • Beam Angle
  • Diffuser Type
  • BLT-CP3C-150WSBSA1-WH57
  • 150W
  • Max 22950LM
  • Up to 153LM/W
  • 5700K
  • >80
  • 110° Degree
  • PC Lens
  • Operating Temperature
  • Operating Humidity
  • Storage Temperature
  • Storage Humidity
  • LED Brand
  • LED Type
  • LED QTY
  • Housing
  • Housing Color
  • -40°C TO +45°C
  • 20％ - 90％ RH
  • -40°C TO 80°C
  • 10% - 95% RH
  • Lumileds
  • SMD2835 (1W)
  • 275 PCS
  • Die-cast Aluminum
  • White
Electrical
Description Value
  • Input Voltage
  • Frequency
  • THD (Tolerance: +5%)
  • Dimming
  • Power Factor
  • Driver Brand
  • Driver Model
  • Driver Surge Protection
  • Flicker Percent
  • 120-277Vac
  • 50/60Hz
  • ≤20%
  • 0-10V
  • ≥0.9
  • SOSEN
  • SS-160NH-E260BH
  • L/N-PE: 6kV, L-N: 6kV
  • <5%
Frequently Asked Questions
How does the Sosen VA driver contribute to reliable and efficient performance?

The Sosen VA driver powers the LED canopy light with a steady, constant current that helps maintain consistent brightness and reduces flickering. It is known for stable performance and good reliability, which means the light runs efficiently and is less likely to experience fluctuations in output or early failure in demanding commercial environments.

Can this canopy luminaire be installed in both surface‑mounted and recessed applications?

Yes. This canopy light is designed for flexible installation. You can mount it directly on the surface under a canopy or roof, or you can install it recessed into the canopy structure. That flexibility allows it to work well in different configurations depending on your site’s design.

How does the built‑in 10KV surge protector safeguard the fixture in harsh electrical environments?

 The built‑in 10 KV surge protector helps protect the canopy light’s internal driver and electronics from voltage spikes and electrical surges that can occur from storms, grid switching, or unstable power. This protection reduces the risk of damage from sudden electrical events and contributes to longer fixture life in outdoor electrical environments.

What makes this luminaire contractor‑friendly and easy to install?

 This canopy fixture includes fasteners and a locking collar that make installation secure and water‑tight. The design lets contractors mount the light easily without complex hardware, and the ability to install from below the canopy deck or in recessed applications reduces installation time and effort.

How does the 110° beam angle ensure even illumination under the canopy?

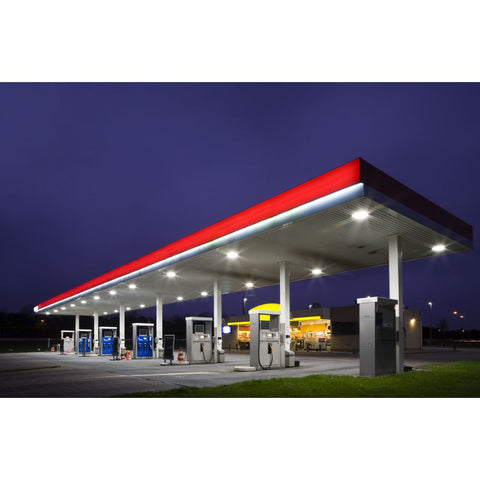

The 110° beam angle spreads light broadly across a wide area beneath canopies, parking structures, gas station roofs, or walkways. This wide spread helps create even illumination with fewer dark spots and good coverage across the entire space without needing an excessive number of fixtures.

Why is UL & DLC listing important for commercial canopy lighting projects?

Being UL Listed means the product has been tested for safety and meets established electrical and fire standards. Being DLC Listed means the fixture meets recognized energy‑efficiency and performance standards required by many utility rebate and incentive programs. Both certifications give confidence in safety, performance, and potential eligibility for energy rebates on commercial lighting projects.

.
