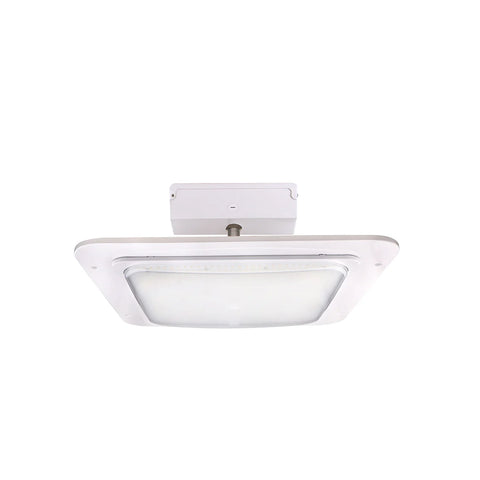

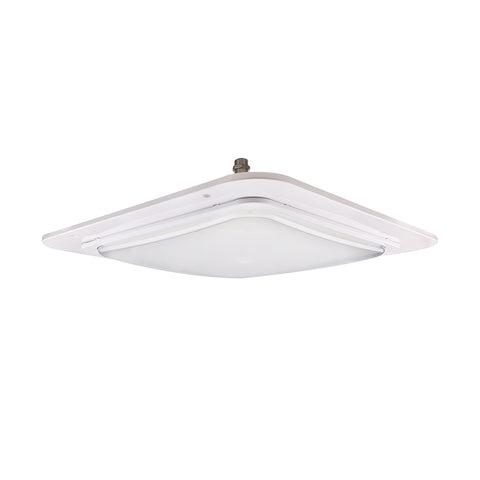

LED Canopy Light | 180 Watt | 28080 Lumens | 5700K | 120V-277V

LED Canopy Light | 180 Watt | 28080 Lumens | 5700K | 120V-277V

White Housing - IP65 - UL & DLC Listed - 5 Year Warranty

  • Up to 156 Lumens per watt
  • Includes J-Box
  • Matte Lens
  • IP65
  • No UV or IR in the beam
  • Light is soft and uniform, safe to eyes
  • Beam angle 110 Degree
  • Input Voltage 120-277Vac
  • CRI: >80
  • UL & DLC listed
  • 5 Year warranty

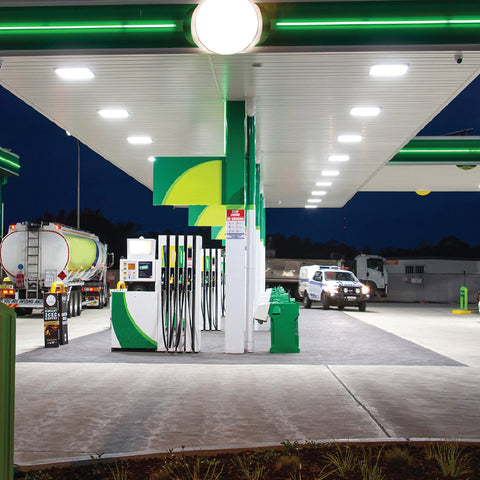

Our Nothing But LEDs Canopy Light Luminaire offers exceptional performance, efficiency and a unique design. Features such as high lumens per watt, outstanding efficacy and field serviceability, make it an ideal commercial canopy solution. The cont...
View Important Details
SKU: 1560792
Regular price $189.99 ea.
Sale price $189.99 ea. Regular price ea.
Call for Bulk Order
800-414-8919
Product Details
  • Up to 156 Lumens per watt
  • Includes J-Box
  • Matte Lens
  • IP65
  • No UV or IR in the beam
  • Light is soft and uniform, safe to eyes
  • Beam angle 110 Degree
  • Input Voltage 120-277Vac
  • CRI: >80
  • UL & DLC listed
  • 5 Year warranty

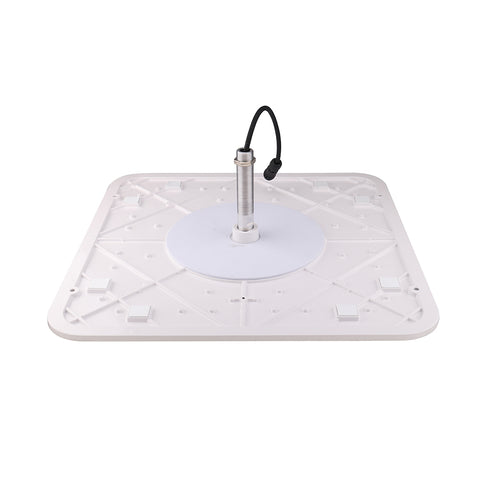

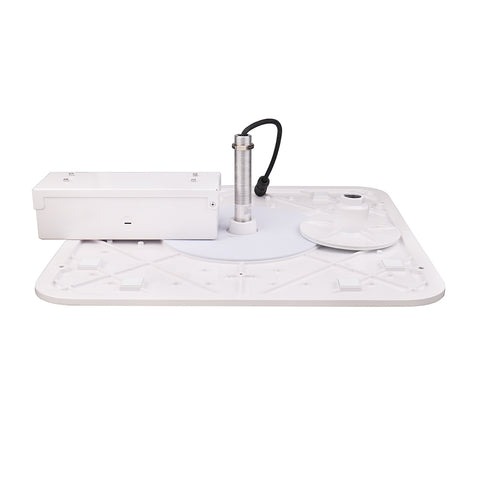

Our Nothing But LEDs Canopy Light Luminaire offers exceptional performance, efficiency and a unique design. Features such as high lumens per watt, outstanding efficacy and field serviceability, make it an ideal commercial canopy solution. The contractor-friendly LED canopy Light luminaire includes fasteners and a locking collar, making installation easy, secure and water-tight. It can be surface mounted easily from below the canopy deck and also has the ability to be pendant mounted.

  • Up to 156 Lumens per watt
  • Includes J-Box
  • Matte Lens
  • IP65
  • No UV or IR in the beam
  • Light is soft and uniform, safe to eyes
  • Beam angle 110 Degree
  • Input Voltage 120-277Vac
  • CRI: >80
  • UL & DLC listed
  • 5 Year warranty
General Performance
Description Value
  • Model #
  • Wattage
  • Lumen
  • Lumen Efficacy
  • Color Temperature
  • CRI (Ra)
  • Beam Angle
  • Diffuser Type
  • AST-CP02B-180WSBMA3-WH57
  • 180W
  • 28080LM
  • Up to 156LM/W
  • 5700K
  • >80
  • 110° Degree
  • Matte lens
Electrical
Description Value
  • Input Voltage
  • Frequency
  • THD (Tolerance: +5%)
  • Dimming
  • Power Factor
  • Driver Brand
  • Driver Model
  • Driver Surge Protection
  • Flicker Percent
  • 120-277Vac
  • 50/60Hz
  • ≤20%
  • 0-10V
  • ≥0.9
  • SOSEN
  • SS-200NH-E260BH
  • L/N-PE: 6kV, L-N: 6kV
  • <5%
Physical
Description Value
  • Operating Temperature
  • Operating Humidity
  • Storage Temperature
  • Storage Humidity

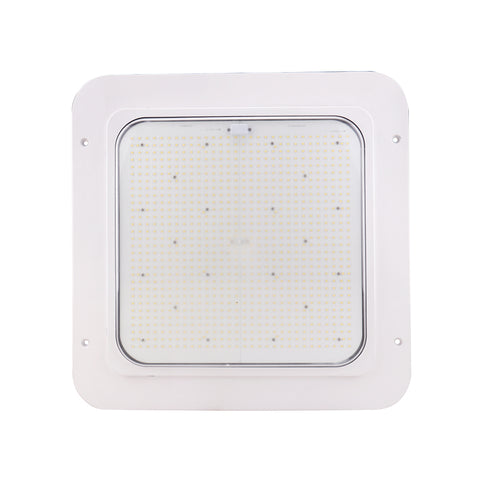

  • LED Brand
  • LED Type
  • LED QTY
  • Housing
  • Housing Color
  • -40°C To 40°C
  • 20% - 90% RH
  • -40°C TO 80°C
  • -10% - 95% RH
  • LUMILEDS
  • SMD2835
  • 1110 PCS
  • Die-cast Aluminum
  • White
