LED Canopy Light | Adj Watt 35W/50W/70W | 10500 Lumens | Adj CCT 3000K/4000K/5000K | 120-277Vac

LED Canopy Light | Adj Watt 35W/50W/70W | 10500 Lumens | Adj CCT 3000K/4000K/5000K | 120-277Vac

IP65 - UL & DLC Listed

  • Up to 150 lm/W
  • Adjustable wattage
  • Adjustable CCT
  • 0-10V Dimmable
  • 110° Beam Angle
  • Easy installation and maintenance design
  • Supports pendant, J-box, and ceiling mounts
  • Die-cast aluminum
  • Bronze housing
  • Input Voltage 120-277VAC
  • UL & DLC listed

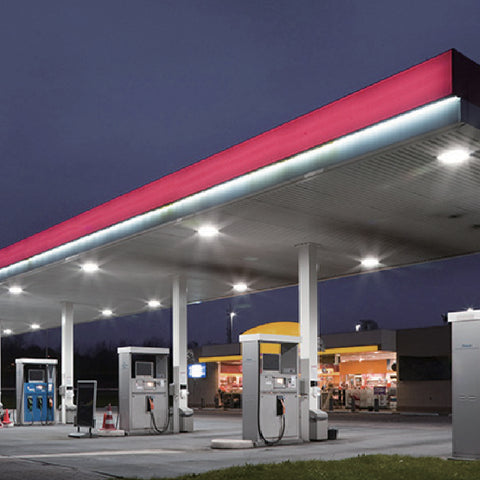

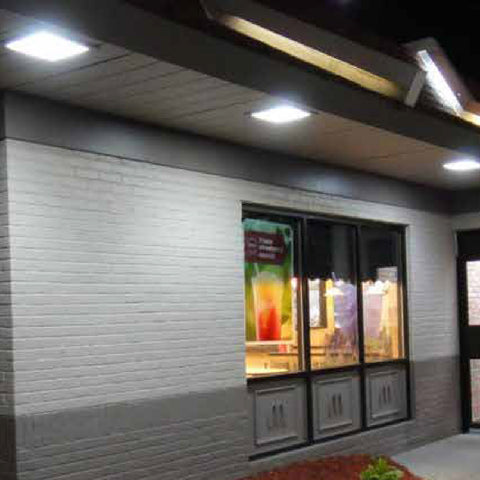

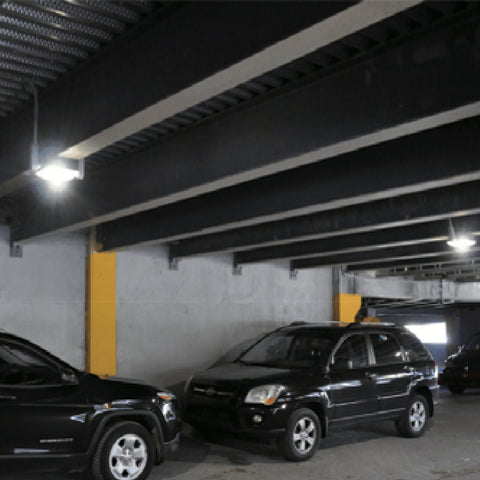

Nothing But LEDs Parking Garage Light is a versatile, high-efficiency lighting solution tailored for a wide range of commercial and industrial applications. With adjustable wattage and color temperature settings, this Parking Garage Light ensures optimal illumination and energy savings, making it ideal for garages, stairwells, gas stations, awnings, and more. The sleek, functional design makes installation and maintenance a breeze, while its w...
View Important Details
SKU: 1570089
$54.99 ea.
$54.99 ea. ea.
Call for Bulk Order
800-414-8919
Spec Logo Spec Logo Spec Logo
Product Details
  • Up to 150 lm/W
  • Adjustable wattage
  • Adjustable CCT
  • 0-10V Dimmable
  • 110° Beam Angle
  • Easy installation and maintenance design
  • Supports pendant, J-box, and ceiling mounts
  • Die-cast aluminum
  • Bronze housing
  • Input Voltage 120-277VAC
  • UL & DLC listed

Nothing But LEDs Parking Garage Light is a versatile, high-efficiency lighting solution tailored for a wide range of commercial and industrial applications. With adjustable wattage and color temperature settings, this Parking Garage Light ensures optimal illumination and energy savings, making it ideal for garages, stairwells, gas stations, awnings, and more. The sleek, functional design makes installation and maintenance a breeze, while its weatherproof construction ensures durability in the harshest conditions. Whether you're looking to light up a large parking structure or a small outdoor area, the Parking Garage Light delivers high performance and reliability.

  • Up to 150 lm/W
  • Adjustable wattage
  • Adjustable CCT
  • 0-10V Dimmable
  • 110° Beam Angle
  • Easy installation and maintenance design
  • Supports pendant, J-box, and ceiling mounts
  • Die-cast aluminum
  • Bronze housing
  • Input Voltage 120-277VAC
  • UL & DLC listed
    Spec Sheet and Reports
    General Performance
    Description Value
    • Model #
    • Adjustable Watt
    • Max Lumens
    • Lumen Efficacy
    • Color Temperature
    • CRI (Ra)
    • Light Spread
    • Diffuser Type
    • ZPS-MX114-70W-V1-T1-E6-D1-D-G2
    • 35W/50W/70W
    • 10500
    • Up to 150Lm/W
    • 3000K/4000K/5000K
    • >70
    • 110°
    • Glass
    • Operating Temperature
    • Operating Humidity
    • Storage Temperature
    • Storage Humidity
    • LED Brand
    • LED Type
    • LED QTY
    • Construction
    • -40°C to 40°C
    • 10%~ 90%RH
    • -30°C to 60°C
    • 10%~ 90%RH
    • Bridgelux
    • SMD2835
    • 312 Pcs
    • Die-Cast Aluminum
    Electrical
    Description Value
    • Input Voltage
    • Frequency
    • Dimming
    • Power Factor
    • Driver Surge Protection
    • Flicker Percent
    • 120-277Vac
    • 50/60Hz
    • 0-10V
    • >0.9
    • 2KV
    • <30%
    Frequently Asked Questions
    How does adjustable wattage help optimize lighting and energy savings in parking garages?

    Being able to choose between 35W, 50W, and 70W lets you set the light level to match the needs of a space. Lower wattage uses less electricity in areas with lighter traffic or smaller garages, while higher wattage gives brighter illumination for busier zones. This flexibility reduces energy waste and lowers operational costs because you aren’t running more power than necessary.

    What advantages does adjustable CCT provide for different commercial and industrial environments?

     The adjustable color temperature lets you select from warmer and cooler whites—3000K for softer light, 4000K for neutral illumination, and 5000K for brighter, daylight‑like light. Warmer tones create a more inviting atmosphere for customer areas or walkways, while cooler tones improve visibility and contrast in work zones, garages, and loading areas. This makes the fixture versatile for a range of commercial and industrial settings.

    How does the 0–10V dimming feature enhance control and reduce electricity costs?

    The 0–10V dimming capability lets the canopy light connect to dimmers or building control systems so you can lower light output when full brightness isn’t needed. Dimming helps extend lamp life and reduce energy use during off‑peak hours or overnight, saving electricity without sacrificing safety or visibility.

    What installation options are supported by this fixture (pendant, J‑box, ceiling)?

    This canopy light supports pendant, junction box (J‑box), and ceiling mounts, so you can install it under canopies, overhangs, or ceilings in garages, gas stations, stairwells, and awnings. The multiple options make it easy to adapt the fixture to different site requirements and mounting preferences.

    How does the 110° beam angle ensure even illumination across parking areas and stairwells?

    The 110° beam angle spreads light widely and evenly across a large area. Instead of shining in a tight spot, it covers broad spaces like garage floors, ramps, and stairwells with uniform illumination. This reduces dark spots and improves visibility and safety for pedestrians and vehicles

    Why is die‑cast aluminum housing important for long‑term durability in harsh conditions?

    The die‑cast aluminum housing provides strength and corrosion resistance while dissipating heat efficiently. This rugged construction helps keep internal components cool, which improves the LEDs’ lifespan and ensures the fixture holds up in outdoor and industrial environments where moisture, dust, and temperature changes are common.

    .
