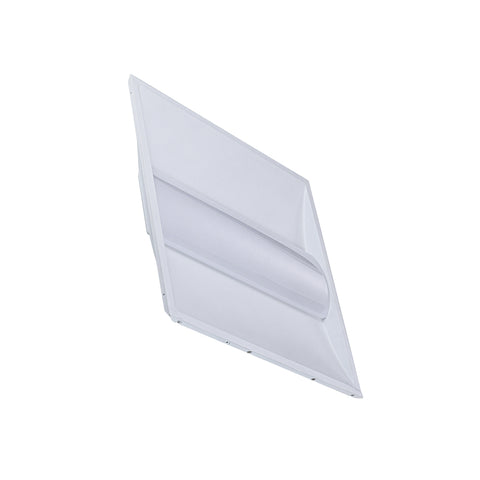

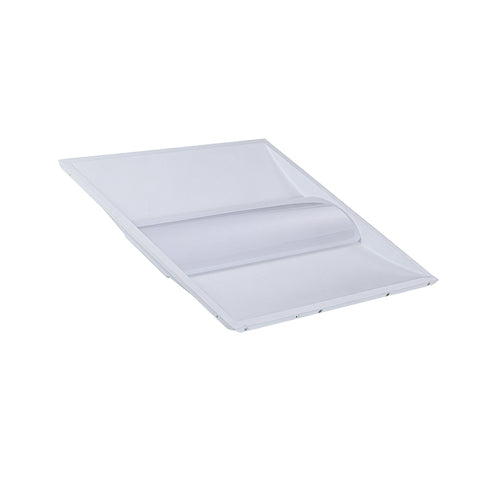

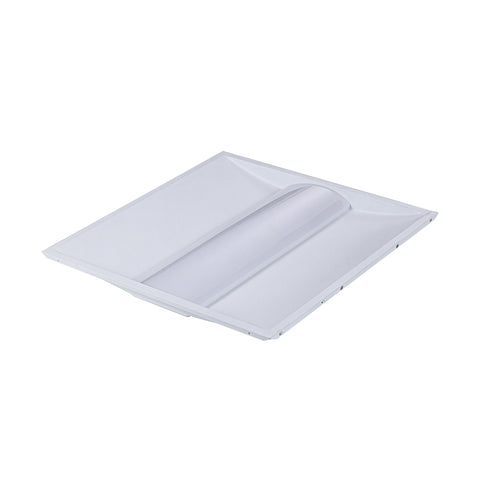

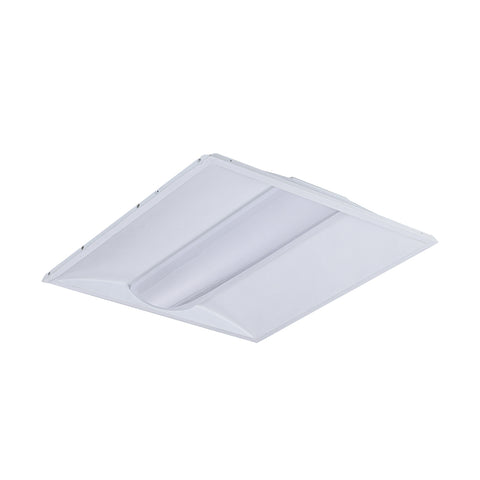

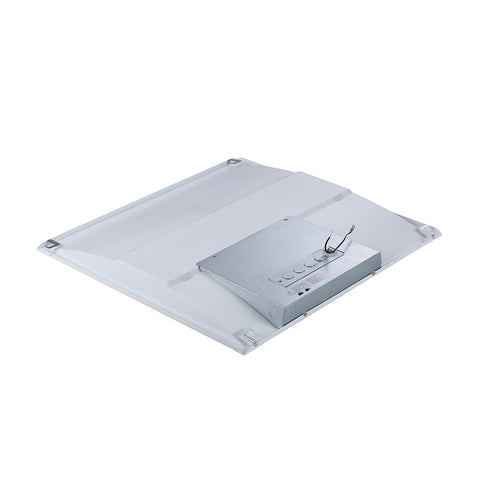

LED Center Basket Troffer | Adj Watt 20W/25W/30W/35W/40W | 5200 Lumens | Adj CCT 3K/3500K/4K/5K/6500K | 100-277V

LED Center Basket Troffer | Adj Watt 20W/25W/30W/35W/40W | 5200 Lumens | Adj CCT 3K/3500K/4K/5K/6500K | 100-277V

2X2 - ETL & DLC Listed - 5 Year Warranty

  • Up to 130 lm/W
  • Available in 2x2
  • Adjustable wattage
  • Adjustable CCT
  • 120° beam angle
  • IP40 rated
  • 0-10V dimmable
  • White housing
  • Input voltage 100-277VAC
  • ETL & DLC listed
  • 5 years warranty
Nothing But LEDs (NBL) LED Troffer is a high-efficiency lighting solution designed to bring clean, modern illumination to commercial spaces. Available in 2x2 ft and 2x4 ft sizes, each troffer offers field-adjustable wattage and color temperature, ...
View Important Details
SKU: 1570105
Regular price $49.99 ea.
Sale price $49.99 ea. Regular price ea.

Sold as a Pack 4
for $199.96

Call for Bulk Order
800-414-8919
Product Details
  • Up to 130 lm/W
  • Available in 2x2
  • Adjustable wattage
  • Adjustable CCT
  • 120° beam angle
  • IP40 rated
  • 0-10V dimmable
  • White housing
  • Input voltage 100-277VAC
  • ETL & DLC listed
  • 5 years warranty

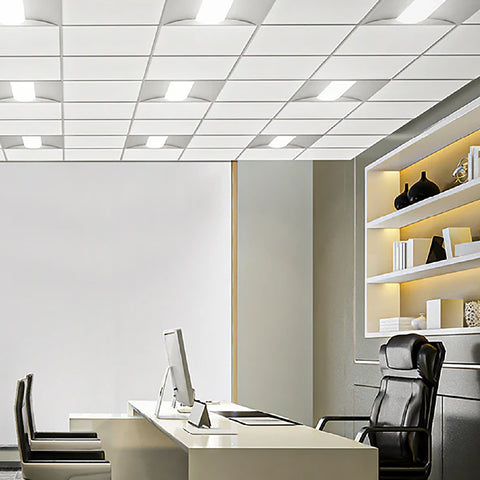

Nothing But LEDs (NBL) LED Troffer is a high-efficiency lighting solution designed to bring clean, modern illumination to commercial spaces. Available in 2x2 ft and 2x4 ft sizes, each troffer offers field-adjustable wattage and color temperature, giving you the flexibility to meet a variety of lighting requirements. With an output of up to 130 lumens per watt, this troffer ensures bright, consistent lighting while helping reduce energy costs. Its sleek design makes it an ideal fit for offices, schools, hospitals, and retail environments, delivering both performance and style in one fixture.

  • Up to 130 lm/W
  • Available in 2x2
  • Adjustable wattage
  • Adjustable CCT
  • 120° beam angle
  • IP40 rated
  • 0-10V dimmable
  • White housing
  • Input voltage 100-277VAC
  • ETL & DLC listed
  • 5 years warranty
Spec Sheet and Reports
General Performance
Description Value
  • Model #
  • Adjustable Watt
  • Max Lumen
  • Lumen Efficacy
  • Color Temperature
  • CRI (Ra)
  • Light Spread
  • Diffuser Type
  • ZS-TF22-Q01-S40-3065
  • 20W / 25W / 30W / 35W / 40W
  • 5200
  • Up to 130 lm/W
  • 3000K / 3500K / 4000K / 5000K / 6500K
  • >80
  • 120°
  • PC Cover
Electrical
Description Value
  • Input Voltage
  • Frequency
  • Dimming
  • Power Factor
  • Flicker
  • THD
  • 100-277Vac
  • 50/60Hz
  • 0-10V Dimmable
  • > 0.95
  • Yes
  • <10%
Physical
Description Value

  • Operating Temperature
  • Operating Humidity
  • LED Brand
  • LED Type
  • LED QTY
  • Construction
  • -20°C ~ +45°C
  • 20% - 75%
  • Everfine
  • SMD2835
  • 72 Pcs
  • Steel Housing + Frosted PC Lens
