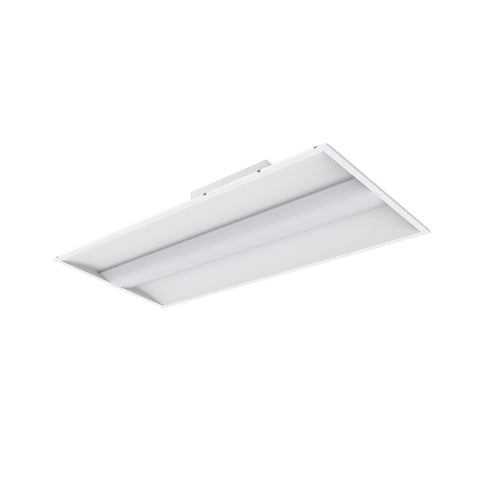

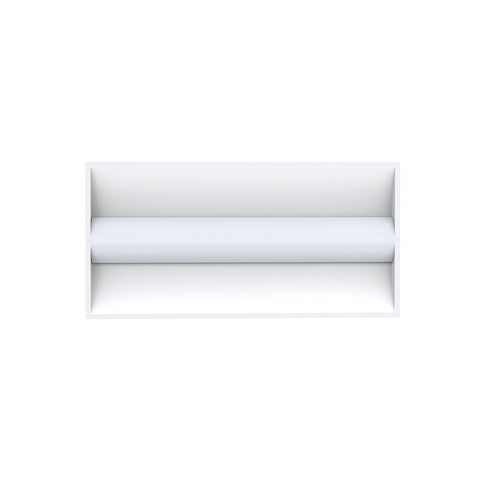

LED Center Basket Troffer | Adj Watt 30W/40W/50W/60W/72W | 9720 Lumens | Adj CCT 3000K/3500K/4000K/5000K/6500K | 120-277Vac

LED Center Basket Troffer | Adj Watt 30W/40W/50W/60W/72W | 9720 Lumens | Adj CCT 3000K/3500K/4000K/5000K/6500K | 120-277Vac

2'X4' - UL & DLC Listed - 5 Year Warranty

  • Up to 135 lm/W
  • Available in 2'x4'
  • Adjustable wattage
  • Adjustable CCT
  • 120° Beam Angle
  • 0-10V Dimmable
  • White housing
  • Input Voltage 120-277VAC
  • UL & DLC listed
  • 5-year warranty
Nothing But LEDs’ LED Center Basket Troffer delivers uniform illumination and exceptional energy efficiency, making it an ideal upgrade from traditional T5, T8, or T12 fluorescent troffers. With its sleek center-basket design, it provides soft, glare-free ambient lighting, suitable for both renovations and new construction projects. This LED troffer features five adjustable wattage settings and five CCT options, offering maximum flexibility an...
View Important Details
SKU: 1560971
$57.99 ea.
$57.99 ea. ea.

Sold as a Pack 2
for $115.98

Call for Bulk Order
800-414-8919
Spec Logo Spec Logo Spec Logo
Product Details
  • Up to 135 lm/W
  • Available in 2'x4'
  • Adjustable wattage
  • Adjustable CCT
  • 120° Beam Angle
  • 0-10V Dimmable
  • White housing
  • Input Voltage 120-277VAC
  • UL & DLC listed
  • 5-year warranty

Nothing But LEDs’ LED Center Basket Troffer delivers uniform illumination and exceptional energy efficiency, making it an ideal upgrade from traditional T5, T8, or T12 fluorescent troffers. With its sleek center-basket design, it provides soft, glare-free ambient lighting, suitable for both renovations and new construction projects. This LED troffer features five adjustable wattage settings and five CCT options, offering maximum flexibility and ensuring reliable performance across a variety of lighting needs. As part of Nothing But LEDs’ advanced line of troffer lights, it delivers up to 135 lumens per watt, optimizing energy usage while maintaining excellent light quality. Its wide 120° beam angle ensures even, full-coverage illumination, while the 0–10V dimming capability allows precise control of brightness levels for further energy savings and visual comfort.

  • Up to 135 lm/W
  • Available in 2'x4'
  • Adjustable wattage
  • Adjustable CCT
  • 120° Beam Angle
  • 0-10V Dimmable
  • White housing
  • Input Voltage 120-277VAC
  • UL & DLC listed
  • 5-year warranty
Spec Sheet and Reports
General Performance
Description Value
  • Adjustable Watt
  • Max Lumen
  • Lumen Efficacy
  • Color Temperature
  • CRI (Ra)
  • Light Spread
  • Diffuser Type
  • 30W / 40W / 50W / 60W / 72W
  • 9720
  • Up to 135LM/W
  • 3000K / 3500K / 4000K / 5000K / 6500K
  • >80
  • 120°
  • PC
  • Driver Brand
  • Driver Model
  • Operating Temperature
  • Operating Humidity
  • Storage Temperature
  • Storage Humidity
  • LED Brand
  • LED Type
  • LED QTY
  • Construction
  • HXS
  • HXS072-UL
  • -20°C to 40°C
  • 10% - 90% RH
  • -20°C to 45°C
  • 10% - 90% RH
  • Lumileds
  • 2835
  • 720 Pcs
  • Steel
Electrical
Description Value
  • Input Voltage
  • Frequency
  • Dimming
  • Power Factor
  • Flicker
  • THD
  • 120-277Vac
  • 50/60 Hz
  • 0-10V Dimmable
  • >0.9
  • Flicker free driver available
  • <20%
Frequently Asked Questions
What is the benefit of the center basket design in LED troffers?

A center basket design helps distribute light more evenly across the room by directing illumination outward from the center of the fixture. This reduces dark spots and creates a balanced, comfortable light field that’s easier on the eyes compared with fixtures that only direct light straight down.

How does adjustable wattage improve energy efficiency and performance?

Adjustable wattage lets you choose the right light output for your space. You can use lower wattage where less brightness is needed to save energy, and higher wattage where more light is necessary, all without changing fixtures. That means better performance and lower operating costs.

What are the advantages of adjustable CCT in different environments?

Adjustable CCT lets you select from warmer to cooler color temperatures, so you can tailor the light to the room’s purpose. Warmer tones (3000K–3500K) are inviting for hospitality or break areas, neutral tones (4000K) are good for general workspaces, and cooler tones (5000K–6500K) enhance clarity in task-oriented areas.

Is this LED center basket troffer suitable for replacing fluorescent troffers?

Yes. This LED center basket troffer is designed as a direct replacement for traditional fluorescent 2×4 troffers. It fits standard ceiling grids and offers higher efficiency, better light quality, and longer life than fluorescent fixtures.

How does the 120° beam angle improve light coverage?

A 120° beam angle spreads the light over a wider area instead of focusing it narrowly downward. In larger spaces, this broader spread improves uniformity, reduces dark corners, and often means fewer fixtures are needed to achieve the same level of illumination.

What is the purpose of 0–10V dimming in this LED troffer?

 0–10V dimming allows smooth control of brightness levels with compatible dimmer controls. This enhances lighting flexibility, helps save energy when full brightness isn’t needed, and supports customized lighting scenes for different tasks or times of day.

.
