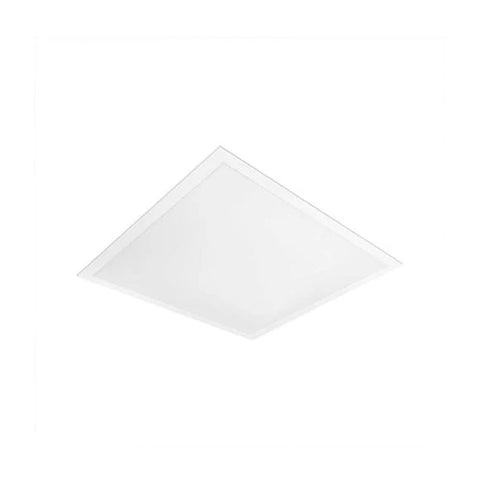

LED Flat Panel | Adj Watt 29/34/39/49 Watt | 5004 Lumens | Adj CCT 3500K-4000K-5000K | 120-277V

LED Flat Panel | Adj Watt 29/34/39/49 Watt | 5004 Lumens | Adj CCT 3500K-4000K-5000K | 120-277V

Built-in Battery Backup - 2'X2' - UL Listed - 5 Year Warranty

  • up to 130 lm/W
  • Adjustable Wattage
  • Adjustable CCT
  • Output Voltage 120–277V AC (50–60Hz)
  • 0–10V Dimmable
  • Glare-free lighting with remarkable light uniformity
  • Super slim design with durable construction
  • Optional hanging or surface mounting accessories available
  • Built-in standard earthquake clips
  • UL Listed
  • 5-Year warranty
Nothing But LED's backlit panels are the most innovative and revolutionary product of 2021. This feature-rich product is ultra-light for easy one-man installation. This model is CCT adjustable, wattage adjustable, and it also has a built-in emergency driver and junction box for easy and fast installation. High efficacy, up to 130 lm/W Wattage Adjustable CCT Adjustable 3500/4000/5000K Output Voltage 120–277V AC (50–60Hz) 0–10V Dimmable Gl...
View Important Details
SKU: 1540199
$77.99 ea.
$77.99 ea. ea.

Sold as a Pack 4
for $311.96

Call for Bulk Order
800-414-8919
Spec Logo Spec Logo Spec Logo
Product Details
  • up to 130 lm/W
  • Adjustable Wattage
  • Adjustable CCT
  • Output Voltage 120–277V AC (50–60Hz)
  • 0–10V Dimmable
  • Glare-free lighting with remarkable light uniformity
  • Super slim design with durable construction
  • Optional hanging or surface mounting accessories available
  • Built-in standard earthquake clips
  • UL Listed
  • 5-Year warranty

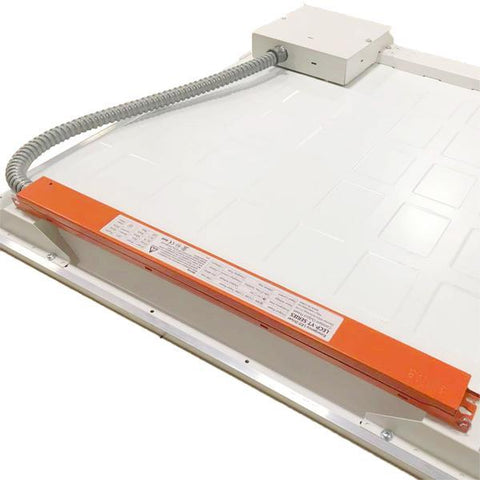

Nothing But LED's backlit panels are the most innovative and revolutionary product of 2021. This feature-rich product is ultra-light for easy one-man installation. This model is CCT adjustable, wattage adjustable, and it also has a built-in emergency driver and junction box for easy and fast installation.

  • High efficacy, up to 130 lm/W
  • Wattage Adjustable
  • CCT Adjustable 3500/4000/5000K
  • Output Voltage 120–277V AC (50–60Hz)
  • 0–10V Dimmable
  • Glare-free lighting with remarkable light uniformity
  • Super slim design with durable construction
  • Optional hanging or surface mounting accessories available
  • Built-in standard earthquake clips
  • UL Listed
  • 5-Year warranty

Spec Sheet

Spec Sheet and Reports
General Performance
Description Value
  • Wattage Adjustable
  • Lumen
  • Lumen Efficacy
  • Color Temperature
  • CRI (Ra)
  • Beam Angle
  • Diffuser Type
  • 24W / 29W / 32W / 39W
  • Up to 5004LM
  • Up to 130LM/W
  • 3500K / 4000K / 5000K
  • >80
  • 120° Degree
  • Frosted
  • Operating Humidity
  • Storage Humidity
  • LED QTY
  • 10% - 65% RH
  • 10% - 65% RH
  • PCS
Electrical
Description Value
  • Input Voltage
  • Frequency
  • Dimming
  • Power Factor
  • Operating Temperature
  • 120-277Vac
  • 50/60Hz
  • 0-10V Dimmable
  • ≥0.9
  • -20°C To 40°C
Frequently Asked Questions
What are the benefits of adjustable wattage in LED backlit panels?

Adjustable wattage lets you control how much light the panel produces. You can lower the wattage where less brightness is needed to save energy or increase it in areas that require more illumination, all without changing the fixture.

How does adjustable CCT improve lighting flexibility for different environments?

Adjustable CCT lets you switch between 3500K, 4000K, and 5000K so you can match the light color to the space’s needs. Warmer tones are great for relaxed settings, neutral tones for general tasks, and cooler tones for focus-intensive work environments.

What is the advantage of having a built-in emergency driver in this panel?

 A built-in emergency driver means the panel continues to provide light during power outages. That enhances safety and code compliance because you don’t need a separate emergency pack or additional wiring, the panel itself handles emergency backup illumination.

Is this LED backlit panel suitable for suspended and surface mounting installations?

Yes. This panel is designed to support both suspended and surface mounting options with the right accessories, giving you flexibility in how it’s installed depending on the architectural needs of the space.

How does the glare-free design enhance visual comfort in commercial spaces?

The glare-free backlit design spreads light evenly without hot spots or harsh brightness, reducing eyestrain and creating a more comfortable and consistent lighting environment — especially important in offices, schools, and healthcare spaces.

What input voltage range does this LED panel support?

This LED panel supports a wide input voltage range from 120V to 277V, making it compatible with both residential and commercial electrical systems without needing a transformer.

.
