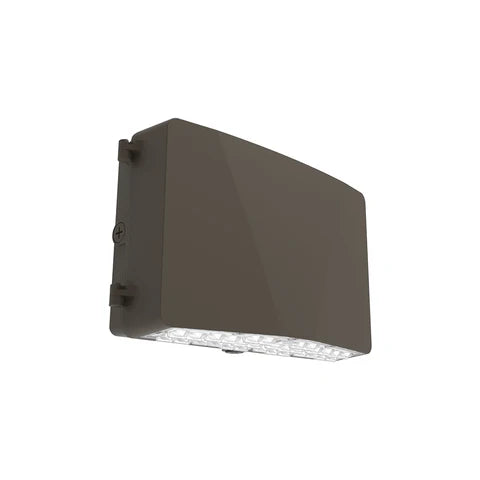

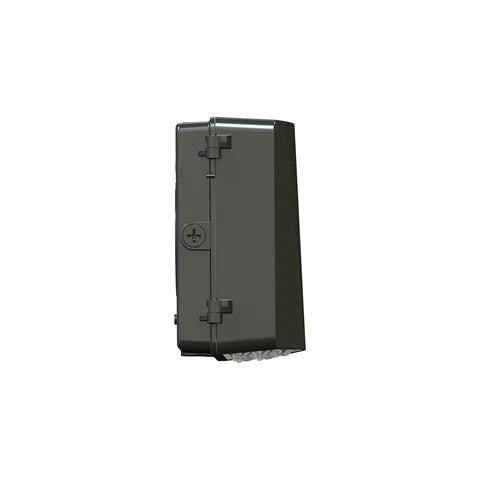

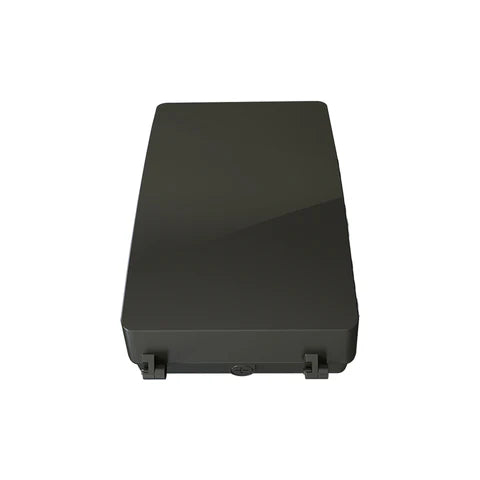

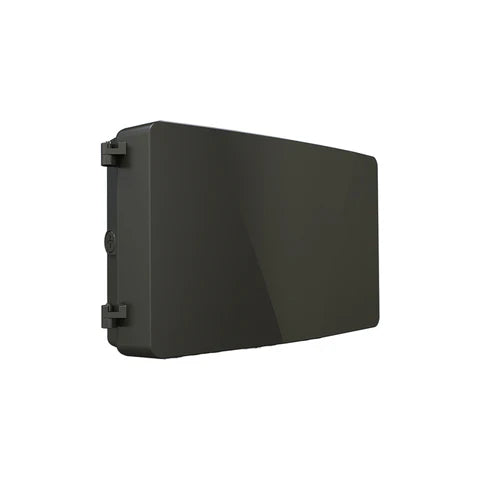

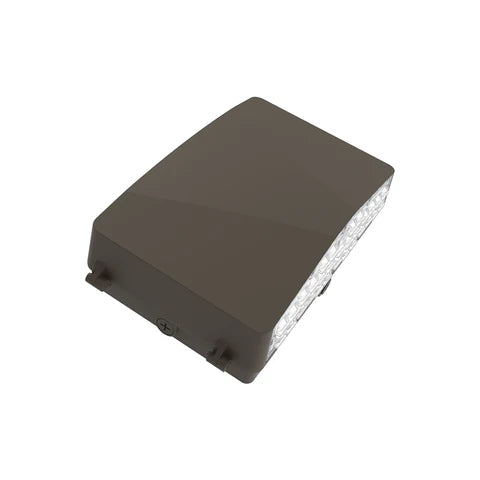

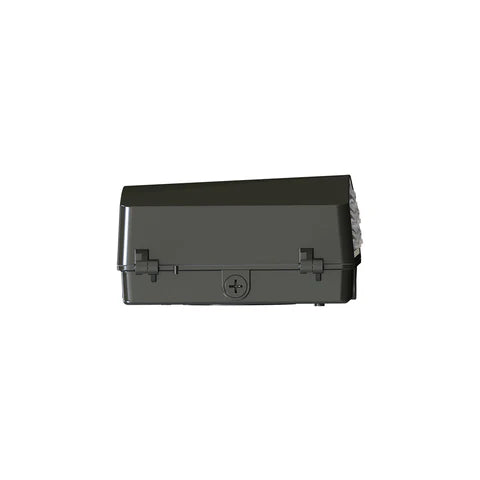

LED Full Cut-off Wall Pack | Adj Watt 35W/50W/70W | 9450 Lumens | CCT 5000K | 100V-277V

LED Full Cut-off Wall Pack | Adj Watt 35W/50W/70W | 9450 Lumens | CCT 5000K | 100V-277V

UL & DLC Listed

  • Up to 130 lm/W
  • Adjustable Wattages
  • 0-10V Dimmable
  • 4KV Surge Protection
  • Input Voltage 100-277VAc
  • UL & DLC Listed
Nothing But LEDs Full Cut off Wall Pack offers a high-performance, energy-efficient lighting solution designed for a wide range of outdoor applications. Featuring adjustable wattage and color temperature, this versatile wall pack delivers customizable lighting that adapts to your specific needs. Its robust dark bronze housing ensures durability and long-lasting use, while the full cutoff design directs light precisely where it's needed, enhanc...
View Important Details
SKU: 1570088
$64.99 ea.
$64.99 ea. $79.99 ea.

Save $15.00

Call for Bulk Order
800-414-8919
Spec Logo Spec Logo Spec Logo
Product Details
  • Up to 130 lm/W
  • Adjustable Wattages
  • 0-10V Dimmable
  • 4KV Surge Protection
  • Input Voltage 100-277VAc
  • UL & DLC Listed

Nothing But LEDs Full Cut off Wall Pack offers a high-performance, energy-efficient lighting solution designed for a wide range of outdoor applications. Featuring adjustable wattage and color temperature, this versatile wall pack delivers customizable lighting that adapts to your specific needs. Its robust dark bronze housing ensures durability and long-lasting use, while the full cutoff design directs light precisely where it's needed, enhancing visibility and reducing unnecessary glare. Ideal for parking lots, stairwells, gas stations, and other commercial spaces, the wall pack is built to withstand the elements with its IP65-rated weatherproof protection.

  • Up to 130 lm/W
  • Adjustable Wattages
  • 0-10V Dimmable
  • 4KV Surge Protection
  • Input Voltage 100-277VAc
  • UL & DLC Listed
    Spec Sheet and Reports
    General Performance
    Description Value

    • Adjustable Watt
    • Max Lumens
    • Lumen Efficacy
    • Color Temperature
    • CRI (Ra)
    • Light Spread
    • Diffuser Type

    • 35W / 50W /70W
    • 9450
    • Up to 130LM/W
    • 5000K
    • ≥80
    • 105°
    • PC Lens
    • Driver Brand
    • Driver Model
    • Operating Temperature
    • Operating Humidity
    • Storage Temperature
    • Storage Humidity
    • LED Brand
    • LED Type
    • LED QTY
    • Construction
    • GUYUAN
    • GY-70W-115V-0690-UNV-10-H-ADJ1
    • -40°C TO 40°C
    • 10%~ 80%RH
    • -30°C TO 70°C
    • 10%~ 90%RH
    • Samsung
    • SMD2835
    • 112 Pcs
    • Die-cast Aluminum
    Electrical
    Description Value
    • Input Voltage
    • Frequency
    • Dimming
    • Light Distribution
    • Power Factor
    • THD
    • Flicker Percent
    • Driver Surge protection
    • 100-277Vac
    • 50/60Hz
    • 0-10V
    • Type III
    • ≥0.9
    • <20%
    • ≤30%
    • 4KV(L-N);6KV(L/N-G)
    Frequently Asked Questions
    What is a full cut-off wall pack, and how does it help reduce glare and light spill?

    A full cut-off wall pack is designed so the light is directed downward and outward without shining above the horizontal plane. This focused distribution helps reduce glare for people nearby and prevents light from spilling into the sky or into adjacent properties. It improves visibility where you need it and minimizes wasted light.

    How do the adjustable wattage options (35W, 50W, 70W) impact brightness and energy efficiency?

    The adjustable wattage lets you choose the power level that matches your site’s needs. Lower settings use less electricity and produce softer light, which is useful for smaller or less critical areas. Higher settings provide brighter output for larger spaces or areas that need stronger illumination. Being able to lower the wattage when full brightness is not required helps reduce energy consumption and operating costs.

    Is this LED full cut-off wall pack compatible with 0–10V dimming controls?

    Yes. This wall pack supports 0–10V dimming, so it can work with standard dimming systems used in commercial and industrial lighting controls. This lets you adjust light levels for energy savings or to match lighting needs throughout the night.

    Can this fixture operate across a wide voltage range from 100V to 277V?

    Yes. This wall pack is designed to operate on 100V to 277V, covering a wide range of electrical systems used in commercial and industrial settings. That makes it compatible with most common power supplies without the need for special transformers or converters.

    How does the built-in 4KV surge protection enhance fixture reliability?

    The built-in 4KV surge protection helps guard the driver and internal electronics against voltage spikes and electrical surges that can happen from storms, utility switching, or other power fluctuations. This protection reduces the risk of damage from surges and helps the fixture last longer in demanding electrical environments.

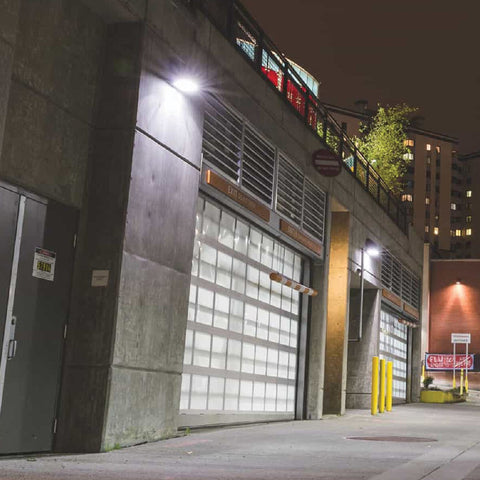

    What outdoor or commercial applications are best suited for this full cut-off LED wall pack?

    This wall pack is ideal for outdoor commercial and industrial lighting needs where controlled, downward illumination is important. It works well for building exteriors, walkways, stairwells, parking lot edges, loading docks, security perimeters, and similar areas where focused light improves safety and visibility without spilling into unwanted areas.

    .
