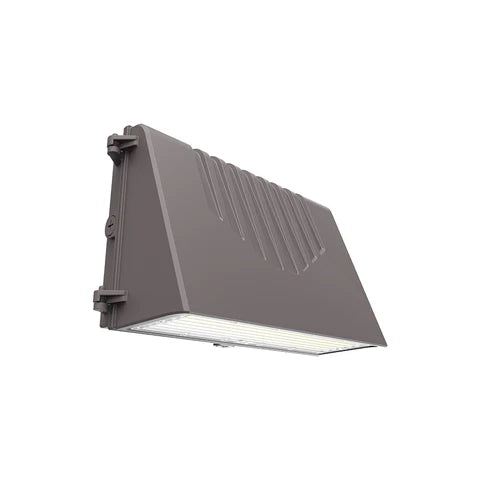

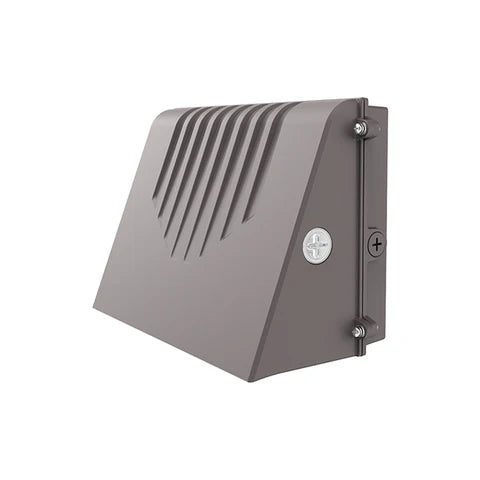

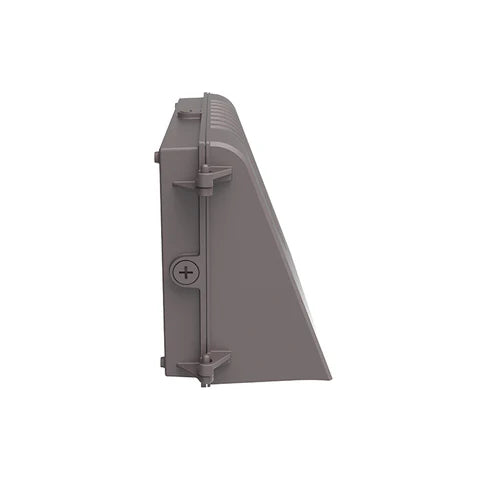

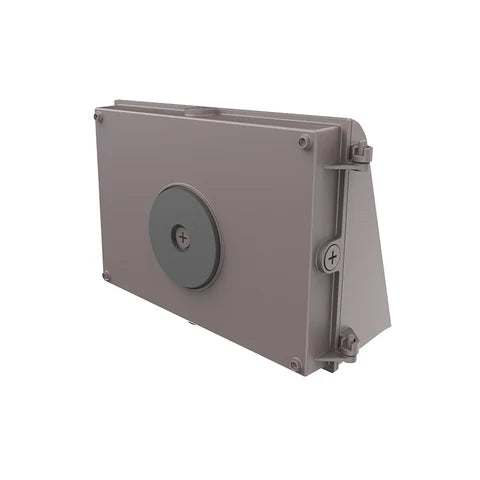

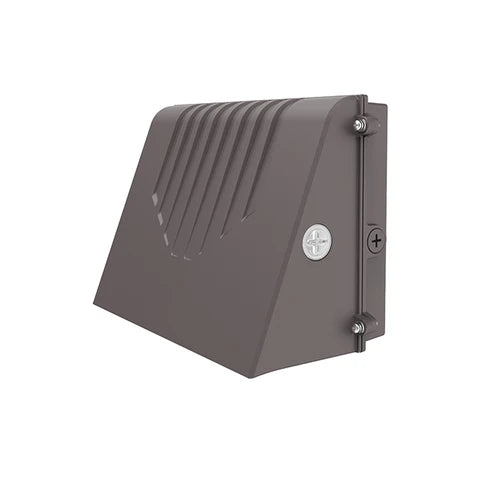

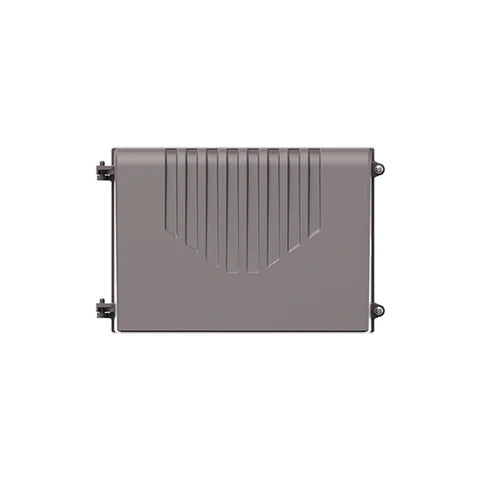

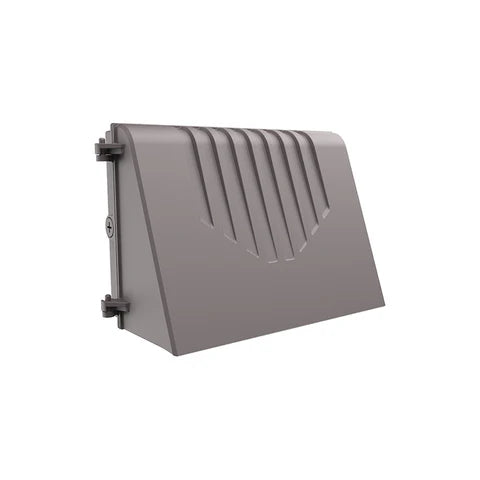

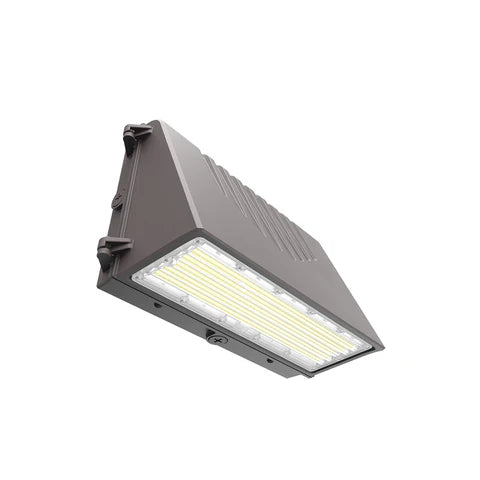

LED Full Cut-off Wall Pack | Adj Watt 60W/90W/100W/120W | 19200 Lumens | Adj CCT 3000K/4000K/5000K | 120-277V

LED Full Cut-off Wall Pack | Adj Watt 60W/90W/100W/120W | 19200 Lumens | Adj CCT 3000K/4000K/5000K | 120-277V

UL & DLC Listed - 5 Year Warranty

  • Up to 160 lm/W
  • Adjustable CCT
  • Adjustable wattages
  • Available in 14”
  • 0–10V dimmable
  • Photocell ON/OFF built-in
  • Input voltage 120–277V
  • Aluminum die-cast housing
  • IP65 rated
  • UL & DLC listed
  • 5-year warranty
Nothing But LEDs’ Full Cutoff LED Wall Pack is a reliable and energy-efficient outdoor lighting solution designed to deliver powerful, focused illumination. With selectable wattage, color temperature (CCT), and photocell ON/OFF control, this LED wall pack offers versatile configuration options while helping reduce inventory SKUs. Delivering up to 170 lumens per watt, it ensures exceptional brightness and long-term energy savings. The integrate...
View Important Details
SKU: 1570055
Regular price $79.99 ea.
Sale price $79.99 ea. Regular price $109.99 ea.

Save $30.00

Call for Bulk Order
800-414-8919
Spec Logo Spec Logo Spec Logo
Product Details
  • Up to 160 lm/W
  • Adjustable CCT
  • Adjustable wattages
  • Available in 14”
  • 0–10V dimmable
  • Photocell ON/OFF built-in
  • Input voltage 120–277V
  • Aluminum die-cast housing
  • IP65 rated
  • UL & DLC listed
  • 5-year warranty

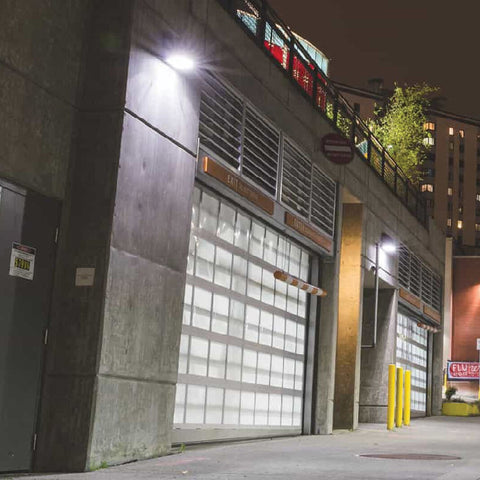

Nothing But LEDs’ Full Cutoff LED Wall Pack is a reliable and energy-efficient outdoor lighting solution designed to deliver powerful, focused illumination. With selectable wattage, color temperature (CCT), and photocell ON/OFF control, this LED wall pack offers versatile configuration options while helping reduce inventory SKUs. Delivering up to 170 lumens per watt, it ensures exceptional brightness and long-term energy savings. The integrated dusk-to-dawn photocell enables automatic lighting based on ambient light levels, enhancing convenience and efficiency. Optional microwave motion sensors and emergency driver compatibility further boost safety and adaptability—making these wall pack LED lights an ideal choice for a wide range of outdoor applications.

  • Up to 160 lm/W
  • Adjustable CCT
  • Adjustable wattages
  • Available in 14”
  • 0–10V dimmable
  • Photocell ON/OFF built-in
  • Input voltage 120–277V
  • Aluminum die-cast housing
  • IP65 rated
  • UL & DLC listed
  • 5-year warranty
General Performance
Description Value
  • Model #
  • Adjustable Watt
  • Max Lumens
  • Lumen Efficacy
  • Color Temperature
  • CRI (Ra)
  • Light Spread
  • Diffuser Type
  • WP28-14-120L-S2D4C3
  • 60W/90W/100W/120W
  • 19200
  • Up to 160LM/W
  • 3000K/4000K/5000K
  • ≥80
  • 100°
  • PC Lens
  • Driver Brand
  • Driver Model
  • Operating Temperature
  • Operating Humidity
  • Storage Temperature
  • Storage Humidity
  • LED Brand
  • LED Type
  • LED QTY
  • Construction
  • Sosen
  • SS-120NH
  • -40°C TO 50°C
  • 10% - 90% RH
  • -40°C TO 90°C
  • 5% - 95% RH
  • Lumileds
  • SMD2835
  • 480PCS
  • Die-cast Aluminum
Electrical
Description Value
  • Input Voltage
  • Frequency
  • Dimming
  • Light Distribution
  • Power Factor
  • THD
  • Flicker Percent
  • Driver Surge protection
  • 120-277Vac
  • 50/60Hz
  • 0-10V
  • Type III
  • ≥0.9
  • <20%
  • <5%
  • L/N 6KV, L/N-P 6KV
.
