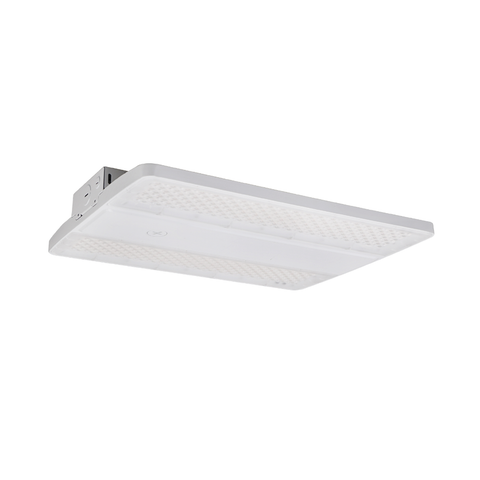

LED Linear High Bay | Adj Watt 110W-130W-160W | 24974 Lumens | Adj CCT 3500K-4000K-5000K | 120-347Vac

LED Linear High Bay | Adj Watt 110W-130W-160W | 24974 Lumens | Adj CCT 3500K-4000K-5000K | 120-347Vac

UL & DLC Listed - 5 Year Warranty

  • Up to 160 lm/W
  • Adjustable Wattage
  • 0-10V Dimmable
  • 3-Pin Shark sensor base
  • Standard Chain mount included
  • Built-In 6kV surge protector
  • A high-quality polycarbonate lens protects LEDs.
  • Die-cast aluminum white housing
  • Input Voltage: 120-347Vac
  • UL and DLC Listed
  • 5-year warranty
Nothing But LED's Linear High Bay is a highly compact design with sleek and integral construction that uses a die-cast housing. It saves a lot of money on shipping and is easy to install. Standard 6kV surge protection keeps it working smoothly even in poor power conditions. It has high efficiency of up to 166 lumens per watt. There is a motion sensor and a 3-pin shark sensor base available. It is commonly utilized in warehouses, storage facili...
View Important Details
SKU: 1570279
$89.99 ea.
$89.99 ea. ea.
Call for Bulk Order
800-414-8919
Spec Logo Spec Logo Spec Logo
Spec Sheet and Reports
Product Details
  • Up to 160 lm/W
  • Adjustable Wattage
  • 0-10V Dimmable
  • 3-Pin Shark sensor base
  • Standard Chain mount included
  • Built-In 6kV surge protector
  • A high-quality polycarbonate lens protects LEDs.
  • Die-cast aluminum white housing
  • Input Voltage: 120-347Vac
  • UL and DLC Listed
  • 5-year warranty

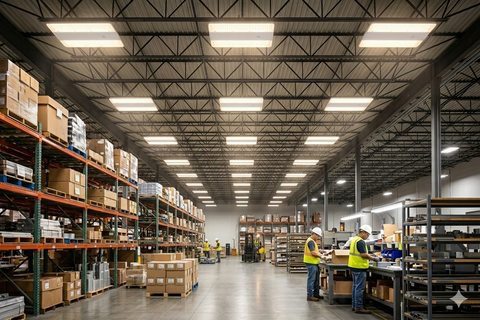

Nothing But LED's Linear High Bay is a highly compact design with sleek and integral construction that uses a die-cast housing. It saves a lot of money on shipping and is easy to install. Standard 6kV surge protection keeps it working smoothly even in poor power conditions. It has high efficiency of up to 166 lumens per watt. There is a motion sensor and a 3-pin shark sensor base available. It is commonly utilized in warehouses, storage facilities, industrial facilities, sports facilities, and gyms.

  • Up to 166 Lumens per watt
  • Wattage Adjustable
  • 0-10V Dimmable
  • Selectable CCT (3500K / 4000K / 5000K)
  • 3-Pin Shark sensor base
  • Standard Chain mount included
  • Built-In 6kV surge protector
  • A high-quality polycarbonate lens protects LEDs.
  • Die-cast aluminum white housing
  • Input Voltage: 120-347Vac
  • UL and DLC-listed
  • 5-year warranty
Spec Sheet and Reports
General Performance
Description Value
  • Wattage Adjustable
  • Lumen
  • Lumen Efficacy
  • Color Temperature
  • CRI (Ra)
  • Beam Angle
  • Diffuser Type
  • 110W/130W/160W
  • 24974 LM
  • Up to 166LM/W
  • 3500K / 4000K / 5000K
  • >80
  • 45°×100° / 65°×95° / 90°×90°
  • Polycarbonate
  • Operating Temperature
  • Storage Temperature
  • LED Brand
  • LED Type
  • Size
  • LED QTY
  • Housing Material
  • -40°C - +50°C
  • -40°C - +80°C
  • E-lite
  • SMD2835
  • 1.70 ft
  • 224 Pcs
  • Aluminum Die Cast
Electrical
Description Value
  • Input Voltage
  • Frequency
  • Dimming
  • Power Factor
  • Driver Surge Protector
  • Emergency Battery
  • Flicker Percent
  • 120-347Vac
  • 50/60 Hz
  • 0-10V
  • ≥0.9
  • 6 kV
  • 160 Watt
  • Flicker Free
Frequently Asked Questions
How does adjustable wattage help tailor light output for different ceiling heights?

Adjustable wattage lets you choose the right amount of light for your space. With settings like 240 W, 270 W, and 310 W, you can dial in lower output for lower ceilings or areas that don’t need intense brightness. Higher wattage gives stronger illumination needed for taller ceilings or wider floor layouts. This helps you avoid overlighting or wasting energy while giving consistently comfortable brightness throughout the space.

What advantages does the standard chain mount provide during installation?

 The standard chain mount makes installation simple and flexible. You can hang the high bay from overhead beams, rails, or structural supports without needing special hardware. Chain mounting also lets you adjust the fixture height easily, which is especially helpful in warehouse and industrial environments where ceiling heights and layouts vary.

How can the optional screw-in motion sensor improve energy efficiency?

 Adding a screw-in motion sensor lets the fixture detect movement below it. When no activity is present, the sensor can dim the light or switch it off. When motion resumes, the fixture returns to full brightness. This reduces energy use during low-traffic periods and cuts costs without sacrificing visibility when it’s needed.

What protection does the built-in 10 kV surge protector offer in unstable power conditions?

The built-in 10 kV surge protector shields the internal driver and electronics from voltage spikes and electrical surges that can occur from storms, grid switching, or unstable power. This defense helps prevent damage and extends the overall life of the fixture, especially in industrial settings with frequent power fluctuations.

How does the polycarbonate lens enhance durability in industrial environments?

The polycarbonate lens is strong, impact-resistant, and won’t yellow easily over time. It helps evenly distribute light and protects the LEDs from dust, debris, and mechanical stress common in industrial environments. Its toughness and clarity make the fixture both durable and reliable for long-term use.

Is this linear high bay compatible with optional emergency battery backup systems?

 Yes. This model already includes a built-in 40 W emergency battery backup. That means if there’s a power outage, the battery module can power the fixture long enough to maintain light for safety and evacuation routes. If needed, additional or higher-capacity backup systems can be integrated to meet specific emergency lighting requirements.

.
