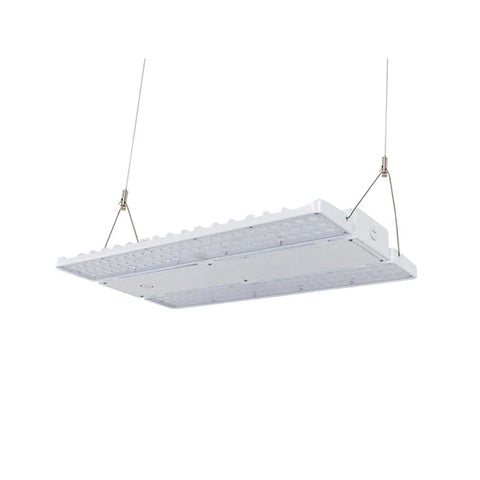

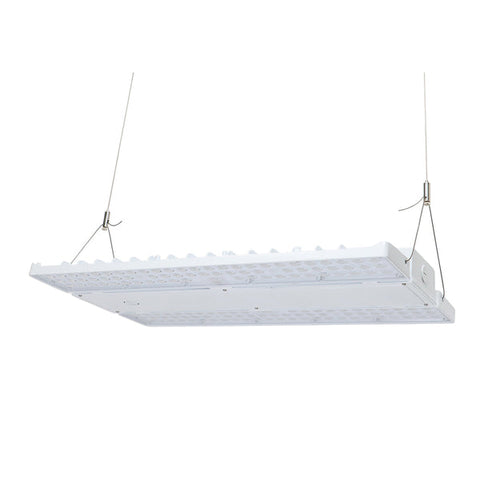

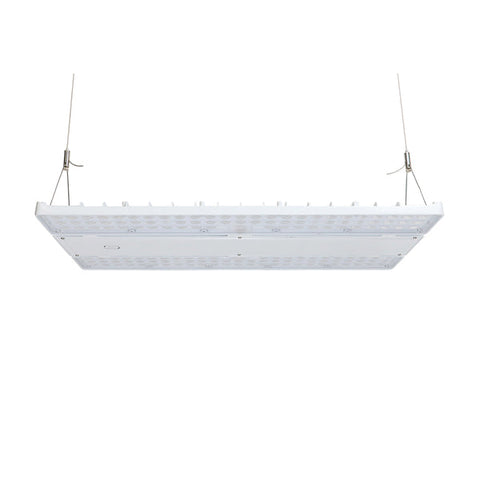

LED Linear High Bay | Adj Watt 240W-270W-310W | 46810 Lumens | Adj CCT 4000K-5000K | 277-480Vac

LED Linear High Bay | Adj Watt 240W-270W-310W | 46810 Lumens | Adj CCT 4000K-5000K | 277-480Vac

UL & DLC Listed - 5 Year Warranty

  • Up to 150 lm/W
  • Adjustable Wattage
  • 0-10V Dimmable
  • Optional screw-in Motion Sensor
  • Standard Chain mount included
  • Built-In 10kV surge protector
  • Emergency battery backup (Optional)
  • A high-quality polycarbonate lens protects LEDs.
  • Die-cast aluminum white housing
  • Input Voltage: 277-480Vac
  • UL and DLC Listed
  • 5-year warranty
Nothing But LED's Linear High Bay is a highly compact design with sleek and integral construction that uses a die-cast housing. It saves a lot of money on shipping and is easy to install. Standard 6,10KV surge protection keeps it working smoothly even in poor power conditions. It has high efficiency of up to 150 lumens per watt. There is a motion sensor and a remote controller available. It is commonly utilized in warehouses, storage facilitie...
View Important Details
SKU: 1560748
$109.99 ea.
$109.99 ea. ea.

Sold as a Pack 2
for $219.98

Call for Bulk Order
800-414-8919
Spec Logo Spec Logo Spec Logo
Product Details
  • Up to 150 lm/W
  • Adjustable Wattage
  • 0-10V Dimmable
  • Optional screw-in Motion Sensor
  • Standard Chain mount included
  • Built-In 10kV surge protector
  • Emergency battery backup (Optional)
  • A high-quality polycarbonate lens protects LEDs.
  • Die-cast aluminum white housing
  • Input Voltage: 277-480Vac
  • UL and DLC Listed
  • 5-year warranty

Nothing But LED's Linear High Bay is a highly compact design with sleek and integral construction that uses a die-cast housing. It saves a lot of money on shipping and is easy to install. Standard 6,10KV surge protection keeps it working smoothly even in poor power conditions. It has high efficiency of up to 150 lumens per watt. There is a motion sensor and a remote controller available. It is commonly utilized in warehouses, storage facilities, industrial facilities, sports facilities, and gyms.

  • Up to 150 Lumens per watt
  • Wattage Adjustable
  • 0-10V Dimmable
  • Optional screw-in Motion Sensor
  • Standard Chain mount included
  • Built-In 10kV surge protector
  • Emergency battery backup (Optional)
  • A high-quality polycarbonate lens protects LEDs.
  • Die-cast aluminum white housing
  • Input Voltage: 277-480Vac
  • UL and DLC-listed
  • 5-year warranty
Spec Sheet and Reports
General Performance
Description Value
  • Wattage Adjustable
  • Lumen
  • Lumen Efficacy
  • Color Temperature
  • CRI (Ra)
  • Beam Angle
  • Diffuser Type
  • 240W/270W/310W
  • 46810 LM
  • Up to 150LM/W
  • 4000K / 5000K
  • >80
  • 110° Degree
  • Polycarbonate
  • Operating Temperature
  • Storage Temperature
  • LED Brand
  • LED Type
  • Size
  • LED QTY
  • Housing Material
  • -40°C - +50°C
  • -40°C - +90°C
  • E-lite
  • SMD2835
  • 1.70 ft
  • 224 Pcs
  • Aluminum Die Cast
Electrical
Description Value
  • Input Voltage
  • Frequency
  • Dimming
  • Power Factor
  • Driver Surge Protector
  • Flicker Percent
  • 277-480Vac
  • 50/60 Hz
  • 0-10V
  • ≥0.9
  • L/N-PE: 10 kV, L-N: 6 kV
  • Flicker Free
Frequently Asked Questions
What is the wattage range of the LED Linear High Bay Light?

The light features an adjustable wattage range from 240W to 310W.

What is the lumen output of this LED light?

It delivers a total of 46,810 lumens.

What color temperature options are available?

The light offers adjustable color temperature settings of 4000K and 5000K.

What is the voltage range for this light?

 It operates within a voltage range of 277-480VAC.

Is this LED light UL and DLC certified?

Yes, it is UL listed and DLC certified for quality and safety.

.
