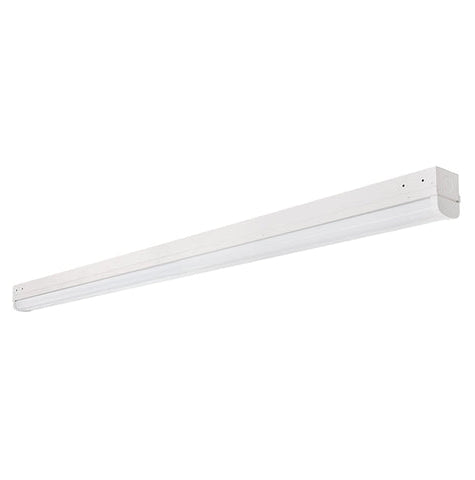

LED Linkable Strip Fixture | Adj Watt 40W/60/80W | 10400 Lumens | Adj CCT 3500K-4000K-5000K | 120-277Vac

LED Linkable Strip Fixture | Adj Watt 40W/60/80W | 10400 Lumens | Adj CCT 3500K-4000K-5000K | 120-277Vac

Built-In 8W Emergency Battery Backup - 8ft - UL & DLC Listed - 5 Year Warranty

  • Up to 130 lm/W
  • Adjustable Wattage
  • Adjustable CCT
  • Input Voltage 120-277Vac 50-60Hz
  • Usable as a stand-alone fixture
  • 4’ Linkable up to 20 Pcs
  • 8’ Linkable up to 10 Pcs
  • Operates directly from line voltage
  • Output constant current lever can be adjusted through output cable with 0-10V
  • Optional Surface mounting bracket for easy installation
  • Optional hanging kit available
  • Iron housing with white paint finish
  • Input Voltage 120-277Vac
  • UL & DLC Listed
  • 5 Year warranty
Nothing But LEDs strip fixtures perform efficiently in conditions where low-voltage, halogen, or fluorescent luminaires have traditionally been used. Our LED strip fixtures incorporate integral drivers, are self-supporting, and can be surface mounted. Individual units can be plugged together for continuous lengths up to 20 pieces (4'), and they’re CCT adjustable and wattage adjustable. Our LED strip fixture lamps connect directly to line volta...
View Important Details
SKU: 1560741
$119.99 ea.
$119.99 ea. ea.

Sold as a Pack 4
for $479.96

Call for Bulk Order
800-414-8919
Spec Logo Spec Logo Spec Logo
Product Details
  • Up to 130 lm/W
  • Adjustable Wattage
  • Adjustable CCT
  • Input Voltage 120-277Vac 50-60Hz
  • Usable as a stand-alone fixture
  • 4’ Linkable up to 20 Pcs
  • 8’ Linkable up to 10 Pcs
  • Operates directly from line voltage
  • Output constant current lever can be adjusted through output cable with 0-10V
  • Optional Surface mounting bracket for easy installation
  • Optional hanging kit available
  • Iron housing with white paint finish
  • Input Voltage 120-277Vac
  • UL & DLC Listed
  • 5 Year warranty

Nothing But LEDs strip fixtures perform efficiently in conditions where low-voltage, halogen, or fluorescent luminaires have traditionally been used. Our LED strip fixtures incorporate integral drivers, are self-supporting, and can be surface mounted. Individual units can be plugged together for continuous lengths up to 20 pieces (4'), and they’re CCT adjustable and wattage adjustable. Our LED strip fixture lamps connect directly to line voltage and can be used in any interior space.

  • Efficacy up to 130 Lumens per watt
  • Wattage adjustable
  • CCT Adjustable 3500K / 4000K / 5000K
  • Input Voltage 120-277Vac 50-60Hz
  • Usable as a stand alone fixture
  • 4’ Linkable up to 20 Pcs
  • 8’ Linkable up to 10 Pcs
  • Operates directly from line voltage
  • Output constant current lever can be adjusted through output cable with 0-10V
  • Optional Surface mounting bracket for easy installation
  • Optional hanging kit available
  • Iron housing with white paint finish
  • Input Voltage 120-277Vac
  • UL & DLC Listed
  • 5 Year warranty
Spec Sheet and Reports
General Performance
Description Value
  • Wattage Adjustable
  • Color Temperature
  • Lumen
  • Lumen Efficacy
  • CRI (Ra)
  • Beam Angle
  • 40W / 60W / 80W
  • 3500K / 4000K / 5000K
  • Up to 10400 LM
  • Up to 130LM/W
  • >80
  • 120° Degree
  • Operating Temperature
  • Storage Temperature
  • Storage Humidity
  • LED Brand
  • LED Type
  • LED QTY
  • Housing Material
  • -20°C-40°C
  • -25°C-80°C
  • 5% RH Min; 95% Max
  • Lumileds
  • 2835
  • 560 Pcs
  • Metal
Electrical
Description Value
  • Input Voltage
  • Frequency
  • Dimming
  • Power Factor
  • THD
  • Flicker Percent
  • Driver Brand
  • Driver Model
  • 120-277V
  • 50/60 Hz
  • 0-10V Dimmable
  • >0.9
  • <20
  • NON-FLICKERING
  • Nothing But LEDs
  • SDU40CS090V42DN3A
Frequently Asked Questions
What does linkable mean in LED strip fixtures?

Linkable means you can connect multiple strip fixtures end to end to create one continuous run of lighting. Instead of powering each fixture separately, you can daisy chain them together from a single power feed. This simplifies wiring, reduces the number of power entries, and creates clean, uniform light along long aisles or open ceilings.

How do adjustable wattage and CCT improve lighting efficiency?

Adjustable wattage lets you choose how much power and light output you need, from 40 W up to 80 W. Lower wattages are more energy efficient in general areas, while higher wattages give stronger illumination when tasks require it. Adjustable CCT allows you to select between 3500K, 4000K, and 5000K to match the environment. Together, these features help you use only the light and energy required for the space.

Can this LED strip fixture be used as a standalone lighting solution?

Yes. This fixture can be installed on its own without linking it to other units. With up to 10,400 lumens of output at full power, it delivers strong, consistent illumination and works well as a primary light source in many commercial and industrial settings.

What types of spaces are ideal for LED strip fixtures?

LED strip fixtures are ideal for warehouses, workshops, garages, storage areas, utility rooms, corridors, stairwells, and retail backrooms. Their long, even light distribution makes them especially effective in spaces that require continuous, uniform illumination.

Does this LED strip light support dimming control?

Yes. This fixture supports 0 to 10V dimming when paired with compatible controls. Dimming allows you to adjust brightness based on occupancy or activity levels, helping reduce energy consumption and extend the lifespan of the LEDs.

What is the advantage of direct line voltage operation?

Direct line voltage operation from 120 to 277 VAC means the fixture can connect directly to standard commercial electrical systems without the need for an external transformer. This simplifies installation, lowers labor costs, and reduces potential points of failure in the lighting system.

.
