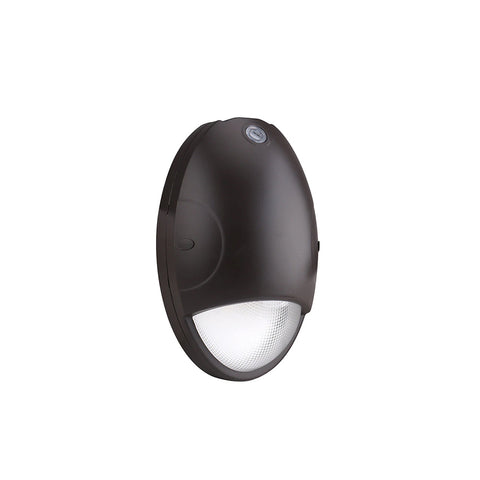

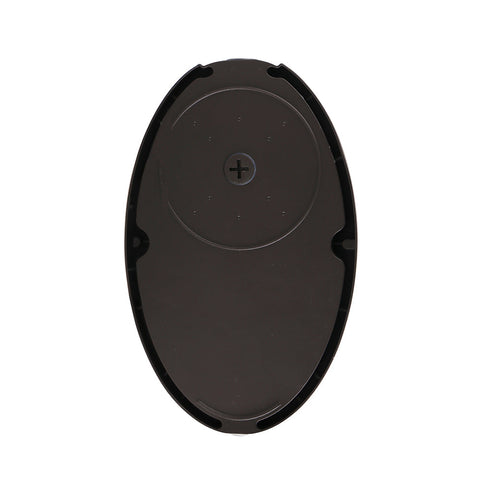

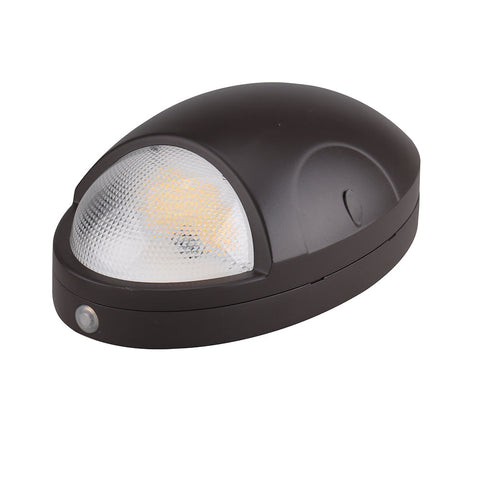

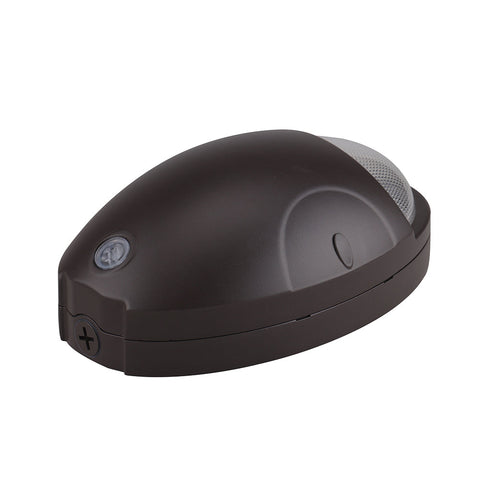

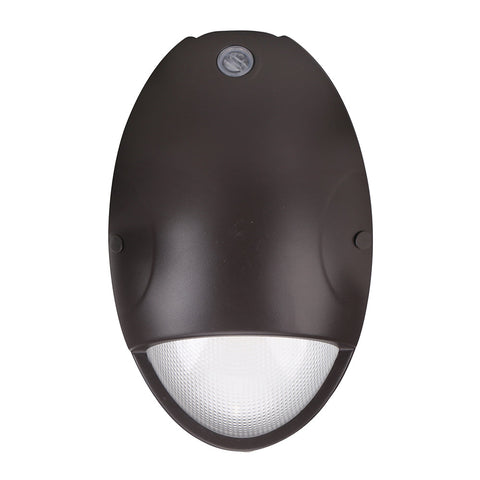

LED Mini Wall Pack | 15 Watt | 2010 Lumens | 5000K | 120-277V

LED Mini Wall Pack | 15 Watt | 2010 Lumens | 5000K | 120-277V

Built-in Battery Backup 5W-90min - IP65 - UL & DLC Listed - 5 Year Warranty

  • Up to 134 lm/W
  • 90 mins emergency battery backup.
  • Instant start, NO flickering, NO humming.
  • Easy to install and operate.
  • Built-in photocell.
  • 0-10V Dimmable.
  • IP65 Waterproof Rated.
  • Universal 120-277V.
  • UL & DLC Listed.
  • 5 Year Warranty.
Nothing But LED's Mini Wall Pack is the newest mini wall pack of 2023. LED Mini Wall Pack is specially designed wall pack which can be used as traditional wall pack and as emergency lighting. LED Mini Wall Pack comes with 90 mins of emergency lighting and along with built in photocell. LED Mini Wall Pack luminaires offers classical elegance with an aluminum housing and an excellent optic design for uniform light distribution. The LED Mini Wall...
View Important Details
SKU: 1560205
$69.99 ea.
$69.99 ea. ea.
Call for Bulk Order
800-414-8919
Spec Logo Spec Logo Spec Logo
Product Details
  • Up to 134 lm/W
  • 90 mins emergency battery backup.
  • Instant start, NO flickering, NO humming.
  • Easy to install and operate.
  • Built-in photocell.
  • 0-10V Dimmable.
  • IP65 Waterproof Rated.
  • Universal 120-277V.
  • UL & DLC Listed.
  • 5 Year Warranty.

Nothing But LED's Mini Wall Pack is the newest mini wall pack of 2023. LED Mini Wall Pack is specially designed wall pack which can be used as traditional wall pack and as emergency lighting. LED Mini Wall Pack comes with 90 mins of emergency lighting and along with built in photocell. LED Mini Wall Pack luminaires offers classical elegance with an aluminum housing and an excellent optic design for uniform light distribution. The LED Mini Wall Pack luminaires are ideal for applications such as, hotel lobbies, Entrance, driveways etc.

  • Up to 134 Lumens per watt.
  • 90 mins emergency battery backup.
  • Instant start, NO flickering, NO humming.
  • Easy to install and operate.
  • Built-in photocell.
  • 0-10V Dimmable.
  • IP65 Waterproof Rated.
  • Universal 120-277V.
  • UL & DLC Listed.
  • 5 Year Warranty.
Spec Sheet and Reports
General Performance
Description Value
  • Wattage
  • Color Temperature Adj.
  • Lumens
  • Lumen Efficacy
  • CRI (Ra)
  • Distribution Pattern
  • 15W
  • 5000K
  • Up to 2010Lm
  • Up to 134LM/W
  • >80
  • Clear Drop Lens
  • Operating Temperature
  • Storage Temperature
  • Operating Humidity
  • Storage Humidity
  • LED Brand
  • LED Type
  • LEDs QTY
  • Housing
  • Housing Color
  • -40°C TO 45°C / With EM: 0°C TO 45°C
  • -40°C TO 85°C
  • 20% - 90% RH
  • 10% - 95% RH
  • Lumileds
  • SMD2835
  • 80 PCS
  • Die-cast Aluminum
  • Bronze
Electrical
Description Value
  • Beam Angle
  • Input Voltage
  • Frequency
  • Dimming
  • PF
  • THD
  • Flicker Percent
  • Driver Model
  • Driver Surge Protection
  • Optional Accessory
  • 100° Degree
  • 120-277V
  • 50/60Hz
  • 0-10V Dimmable
  • ≥0.9
  • ≤20%
  • <70%
  • HB-LPG015G-52
  • L/N-PE: 2.5kV, L-N: 2.5kV
  • Photocell / Emergency Battery
Frequently Asked Questions
How does the built-in 90-minute battery backup function during a power outage?

 If the power goes out, the built-in battery backup automatically takes over and powers the light for up to 90 minutes. This ensures the area stays illuminated even when the main electrical supply fails, giving you reliable emergency lighting when it matters most.

Can this LED mini wall pack be used both as standard outdoor lighting and emergency lighting?

Yes. This mini wall pack works as a normal outdoor light during regular operation and also provides emergency illumination through its built-in battery backup. You get everyday lighting plus backup light without needing a separate emergency fixture.

Does the built-in photocell work alongside the battery backup feature?

Yes. The built-in photocell automatically turns the light on at dusk and off at dawn, and it continues to function even with the battery backup. That means the fixture will switch on every night as needed and still serve as emergency lighting when power is lost.

Is this 15 W LED mini wall pack compatible with 0–10 V dimming systems?

Yes. The mini wall pack supports 0–10 V dimming, so you can connect it to standard commercial dimming systems if you want adjustable brightness or advanced lighting control.

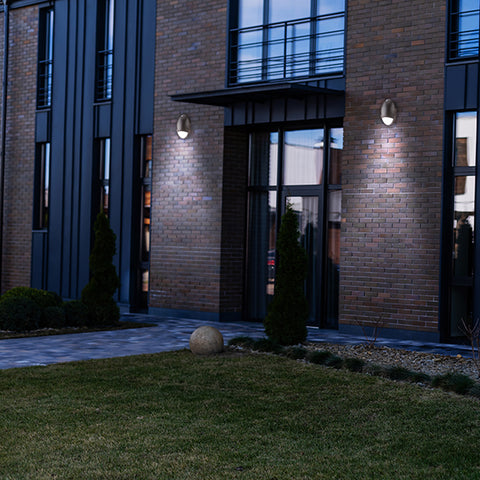

What types of indoor and outdoor locations are ideal for installing this mini wall pack?

This light suits both indoor exit ways and outdoor locations. It is ideal for building entrances, driveways, walkways, emergency exit points, and perimeter lighting where compact, efficient light with backup capability is needed. The combination of everyday illumination and emergency backup makes it useful for commercial, industrial, and residential settings.

.
