LED Mini Wall Pack | 20 Watt | 2745 Lumens | 5000K | 120V-277V

LED Mini Wall Pack | 20 Watt | 2745 Lumens | 5000K | 120V-277V

IP65 | UL & DLC Listed | 5 Year Warranty

  • Up to 135 lumens per watt
  • Enclosure provides a water-tight seal, making it suitable for outdoor applications
  • Built-in photocell
  • Integral LED driver eliminates the need for an external driver or ballast
  • Complies with UL safety regulations and is DLC5.1 listed
  • High Quality and Efficacy Lumiled 2835 chips
  • This product is IP65 rated; therefore, it is waterproof, sealed, and gasketed wire.
  • Universal operation at 120-277Vac, 50-60Hz
  • Environment-friendly with no mercury
  • Easy to install and operate, with instant and no humming
  • Energy-saving, long lifespan with 50,000-hour life rating

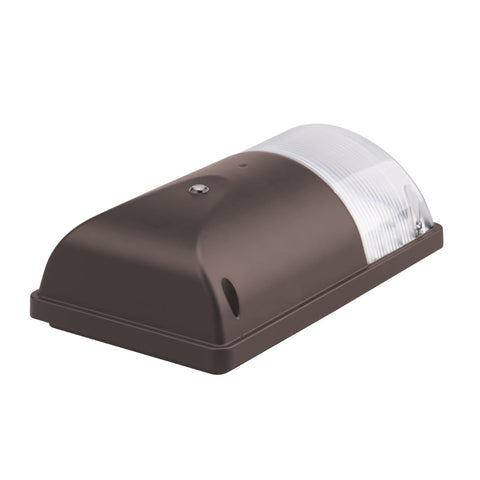

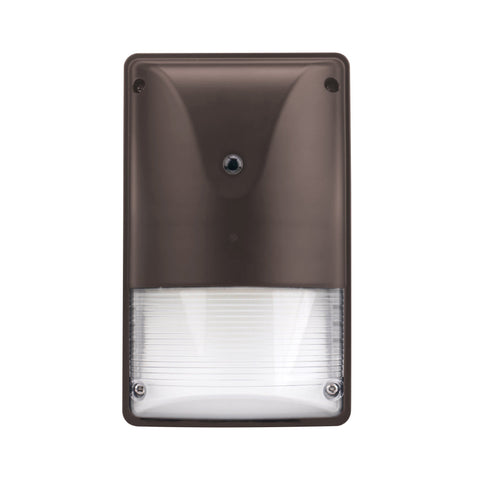

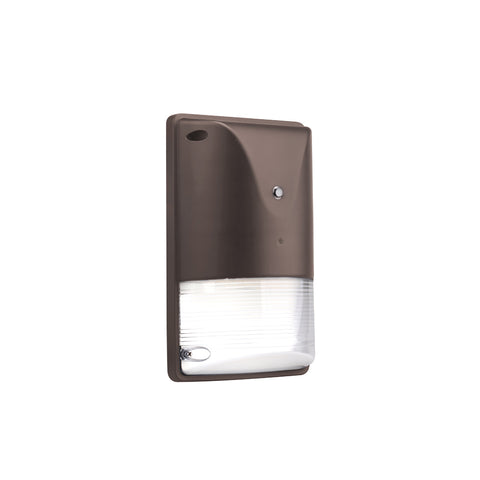

Nothing But LED's Mini Wall Pack is a traditional-style wall pack that you can depend on. luminaires offer the shape you have grown accustomed to, coupled with the high-powered, energy-efficient LEDs you want. Mini Wall Packs have an aluminum housing with an excellent optic design for uniform light distribution. The luminaires are ideal for outdoor applications such as personnel doors, loading areas, hotel lobbyes, driveways, and parking areas...
View Important Details
SKU: 1550604
$32.99 ea.
$32.99 ea. ea.
Call for Bulk Order
800-414-8919
Spec Logo Spec Logo Spec Logo
Product Details
  • Up to 135 lumens per watt
  • Enclosure provides a water-tight seal, making it suitable for outdoor applications
  • Built-in photocell
  • Integral LED driver eliminates the need for an external driver or ballast
  • Complies with UL safety regulations and is DLC5.1 listed
  • High Quality and Efficacy Lumiled 2835 chips
  • This product is IP65 rated; therefore, it is waterproof, sealed, and gasketed wire.
  • Universal operation at 120-277Vac, 50-60Hz
  • Environment-friendly with no mercury
  • Easy to install and operate, with instant and no humming
  • Energy-saving, long lifespan with 50,000-hour life rating

Nothing But LED's Mini Wall Pack is a traditional-style wall pack that you can depend on. luminaires offer the shape you have grown accustomed to, coupled with the high-powered, energy-efficient LEDs you want. Mini Wall Packs have an aluminum housing with an excellent optic design for uniform light distribution. The luminaires are ideal for outdoor applications such as personnel doors, loading areas, hotel lobbyes, driveways, and parking areas.

  • Up to 135 lumens per watt
  • Enclosure provides a water-tight seal, making it suitable for outdoor applications
  • Built-in photocell
  • Integral LED driver eliminates the need for an external driver or ballast
  • Complies with UL safety regulations and is DLC5.1 listed
  • High Quality and Efficacy Lumiled 2835 chips
  • This product is IP65 rated; therefore, it is waterproof, sealed, and gasketed wire.
  • Universal operation at 120-277Vac, 50-60Hz
  • Environment-friendly with no mercury
  • Easy to install and operate, with instant and no humming
  • Energy-saving, long lifespan with 50,000-hour life rating
Spec Sheet and Reports
General Performance
Description Value
  • Wattage
  • Color Temperature
  • Lumens
  • Lumen Efficacy
  • CRI (Ra)
  • Beam Angle
  • 20 Watt
  • 5000K
  • Up to 2745Lm
  • Up to 135 LM/W
  • >80
  • 100° Degree
  • Operating Temperature
  • Storage Temperature
  • Operating Humidity
  • Storage Humidity
  • LED Brand
  • LED Type
  • LEDs QTY
  • Housing
  • -40°C TO 50°C / With EM: 0°C TO 50°C
  • -40°C TO 80°C
  • 20% - 90% RH
  • 10% - 95% RH
  • Lumileds
  • SMD2835
  • 40 Pcs
  • Die-cast Aluminum
Electrical
Description Value
  • Input Voltage
  • Frequency
  • Dimming
  • Power Factor
  • THD
  • Flicker Percent
  • Driver Brand
  • Driver Model
  • Driver Surge Protection
  • 120-277Vac
  • 50/60Hz
  • 0-10V Dimming
  • ≥0.9
  • ≤20%
  • <70%
  • HBE
  • HB-FL19F025
  • L/N-PE: 2.5kV, L-N: 2.5kV
Frequently Asked Questions
Is this 20W LED mini wall pack suitable for outdoor use in harsh weather conditions?

Yes. The fixture has an IP65 rating, which means the housing is sealed against dust and protected from water jets. This makes the light durable outdoors where it can be exposed to rain, windblown dust, and routine weather conditions without letting moisture or debris enter the unit.

Does the built-in photocell automatically turn the light on and off from dusk to dawn?

Yes. The built-in photocell senses the level of daylight and switches the light on when it gets dark and off when it gets light again. This ensures the fixture only operates at night without requiring manual switching, which saves energy and simplifies operation.

Can this LED mini wall pack operate on both 120V and 277V electrical systems?

 Yes. This mini wall pack is designed for universal operation on 120 V to 277 V systems, so it can be installed on standard residential or commercial circuits without needing a separate transformer or driver.

What types of outdoor applications are best suited for this mini wall pack light?

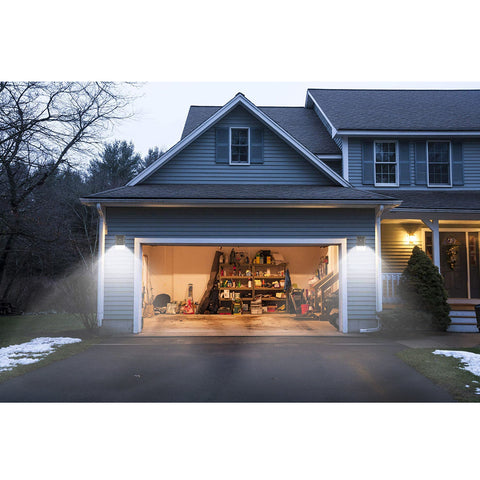

This compact wall pack works well for areas where a small but effective exterior light is needed, such as personnel doors, walkways, driveways, building perimeters, loading zones, and parking areas. Its size and output make it a good choice for commercial and residential exterior lighting where visibility and safety are important.

How long is the expected lifespan of this LED wall pack, and does it require regular maintenance?

This wall pack uses efficient LED chips that are rated for about 50,000 hours of life. That long lifespan means it should run for many years before needing replacement, and because LEDs don’t burn out suddenly like older bulbs, regular maintenance is minimal beyond occasional cleaning of the housing.

Is this LED mini wall pack eligible for utility rebates with UL and DLC 5.1 listings?

Yes. Because it is UL Listed and DLC 5.1 Listed, it meets widely recognized safety and energy efficiency standards that many utility rebate programs require. This often makes it eligible for energy-efficiency incentives when installed in qualifying commercial or retrofit projects.

.
