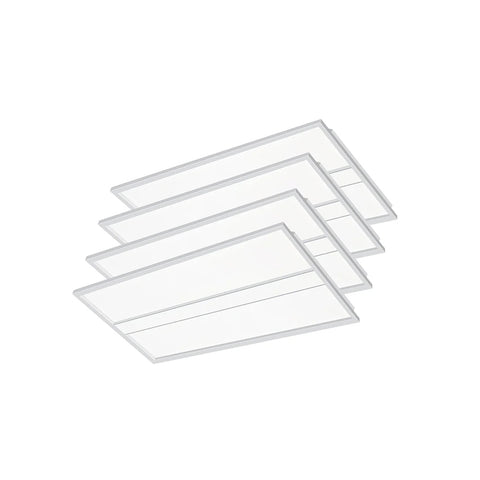

LED Panel/Troffer | Adj Watt 30W/40W/50W | 5500 Lumens | Adj CCT 3500K/4K/5K | 100-277V

LED Panel/Troffer | Adj Watt 30W/40W/50W | 5500 Lumens | Adj CCT 3500K/4K/5K | 100-277V

2'X4' - UL Listed - 5 Year Warranty

  • Up to 110 lm/W
  • Architectural quality design and construction
  • Fully luminous center panel

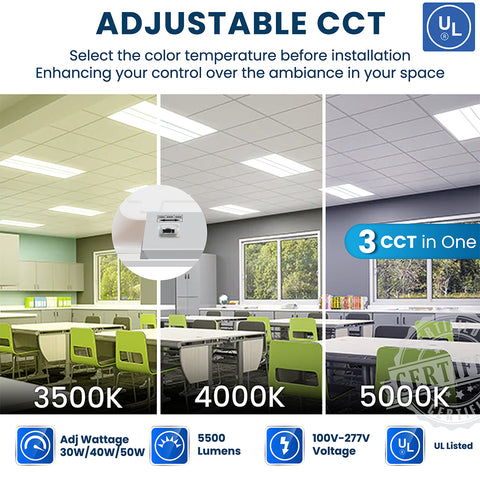

  • CCT Adjustable 3500K/4K/5K

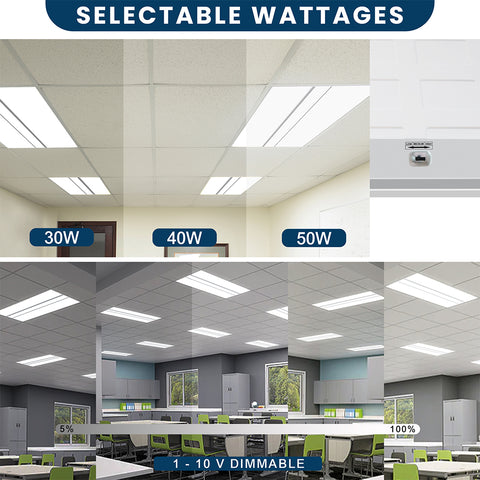

  • Wattage Adjustable
  • 1-10 Dimming

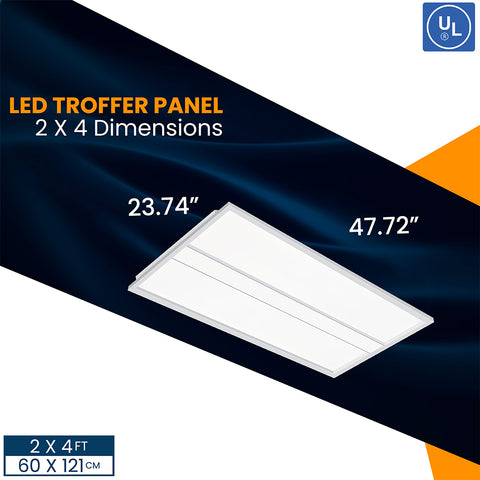

  • Available in 2x4
  • Beam Angle 120º Degree
  • Suitable for all standard 2x4’ grid ceilings

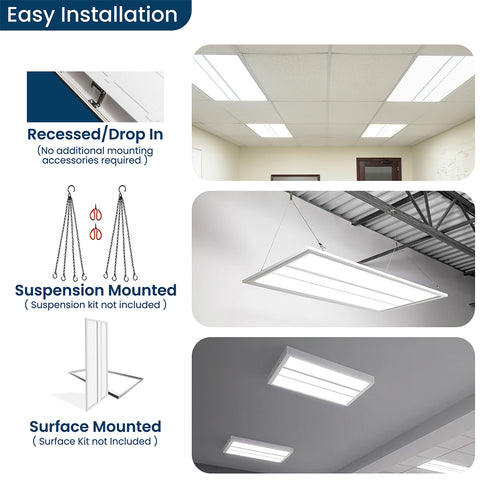

  • Optional hanging mount & Surface mounting kit
  • Input Voltage 100-277Vac 50-60Hz
  • UL Listed
  • 5 Years warranty

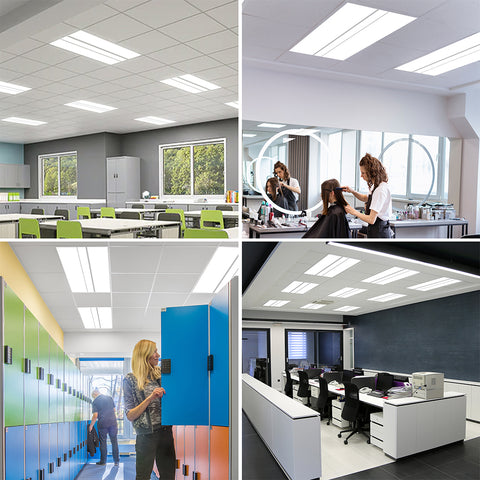

Nothing But LED's newest architectural recessed troffer offers subtle, clean geometry in a fully luminous door-frame design. This contemporary, high-quality luminaire provides superior visual comfort and is dedicated to the latest solid-state lighting and driver technology for optimal performance and energy efficiency. Available in 2x2’ & 2x4’, it delivers stylish design and clear illumination to commercial, hospitality offices, and restau...
View Important Details
SKU: 1550658
$72.99 ea.
$72.99 ea. ea.

Sold as a Pack 4
for $291.96

Call for Bulk Order
800-414-8919
Spec Logo Spec Logo Spec Logo
Product Details
  • Up to 110 lm/W
  • Architectural quality design and construction
  • Fully luminous center panel
  • CCT Adjustable 3500K/4K/5K
  • Wattage Adjustable
  • 1-10 Dimming
  • Available in 2x4
  • Beam Angle 120º Degree
  • Suitable for all standard 2x4’ grid ceilings
  • Optional hanging mount & Surface mounting kit
  • Input Voltage 100-277Vac 50-60Hz
  • UL Listed
  • 5 Years warranty

Nothing But LED's newest architectural recessed troffer offers subtle, clean geometry in a fully luminous door-frame design. This contemporary, high-quality luminaire provides superior visual comfort and is dedicated to the latest solid-state lighting and driver technology for optimal performance and energy efficiency. Available in 2x2’ & 2x4’, it delivers stylish design and clear illumination to commercial, hospitality offices, and restaurants.

  •  Up to 110 Lm/W
  • Architectural quality design and construction
  • Fully luminous center panel
  • CCT Adjustable 3500K/4K/5K
  • Wattage Adjustable
  • 1-10 Dimming
  • Available in 2x4
  • Beam Angle 120º Degree
  • Suitable for all standard 2x4’ grid ceilings
  • Optional hanging mount & Surface mounting kit
  • Input Voltage 100-277Vac 50-60Hz
  • UL Listed
  • 5 Years warranty
Spec Sheet and Reports
General Performance
Description Value
  • Model #
  • Wattage Adjustable
  • Lumen
  • Lumen Efficacy
  • Color Temperature
  • CRI
  • Beam Angle
  • Diffuser Type
  • BLT-TR24-DM-TWTS
  • 30W/40W/50W
  • 5500Lm
  • Up to 110LM/W
  • 3500K/4000K/5000K
  • >80
  • 110° Degree
  • PS
  • Operating Humidity
  • Storage Temperature
  • Storage Humidity
  • LED Brand
  • LED Type
  • Housing
  • Housing Color
  • <50%
  • 25°C -1°C
  • <50%
  • HWX
  • SMD2835
  • Aluminum
  • White
Electrical
Description Value
  • Input Voltage
  • Frequency
  • Dimming
  • Power Factor
  • Operating Temperature
  • 110-277Vac
  • 50/60Hz
  • 1-10V
  • >0.9
  • -20°C -40°C
Frequently Asked Questions
What makes this architectural recessed troffer different from standard LED troffers?

This architectural recessed troffer goes beyond basic LED troffers by offering adjustable wattage, adjustable color temperature, and a fully luminous center panel that delivers more even light distribution with a refined visual appearance. It’s designed for higher visual comfort and flexibility in commercial and professional settings.

How does the fully luminous center panel improve visual comfort?

 The fully luminous center panel spreads light evenly across the entire surface instead of emitting from a small area. This reduces glare and hotspots, creating a smoother, more uniform illumination that’s easier on the eyes, especially during long periods of work or occupancy.

What wattage adjustment options are available for this troffer light?

This troffer lets you adjust the wattage between 30W, 40W, and 50W, so you can match the brightness to the space’s needs and optimize for energy efficiency without swapping fixtures.

How does adjustable CCT help customize lighting for different environments?

Adjustable CCT lets you choose between 3500K, 4000K, and 5000K color temperatures. That means you can select warmer light for areas that need a softer feel or cooler, crisper light for task-oriented zones like offices or retail floors.

Is this troffer compatible with standard 2x4 grid ceiling systems?

Yes. This architectural troffer is designed to fit standard 2x4 ceiling grid systems, making it easy to install in typical commercial and institutional ceiling layouts.

What are the benefits of 1–10V dimming capability in commercial lighting?

1–10V dimming allows smooth and precise control of light levels with compatible dimmers or control systems. This enhances energy savings by reducing brightness when full power isn’t needed, supports lighting scene control, and extends lamp life by reducing thermal stress on LEDs.

.
