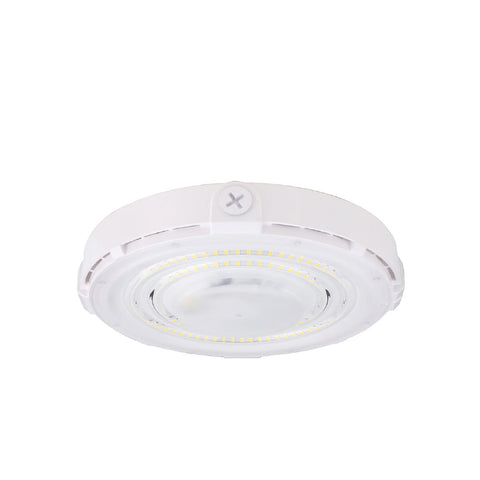

LED Parking Garage Light | 60 Watt | 6900 Lumens | 5000K | 120-277V

LED Parking Garage Light | 60 Watt | 6900 Lumens | 5000K | 120-277V

IP65 - UL Listed - 3 Year Warranty

  • Up to 115 lumens per watt
  • No Dimming
  • Lumileds Chip SMD 2835
  • Energy saving, long lifespan
  • Beam Angle 150° Degree
  • Light is soft and uniform, safe to eyes
  • Green and eco-friendly without mercury
  • Input Voltage 120-277VAC
  • UL Listed
  • 3 Year warranty
Nothing But LEDs Parking Garage Light is a modern and efficient lighting solution designed specifically for parking garage environments. With its sleek and contemporary design this light fixture not only provides ample illumination but also enhances the overall aesthetic of the parking area. Our parking garage light comes with 60W & 90W also with (DOB) Driver on Board technology which offers high lumens per watt for maximum power savings a...
View Important Details
SKU: 1560694
$44.99 ea.
$44.99 ea. ea.
Call for Bulk Order
800-414-8919
Spec Logo Spec Logo Spec Logo
Product Details
  • Up to 115 lumens per watt
  • No Dimming
  • Lumileds Chip SMD 2835
  • Energy saving, long lifespan
  • Beam Angle 150° Degree
  • Light is soft and uniform, safe to eyes
  • Green and eco-friendly without mercury
  • Input Voltage 120-277VAC
  • UL Listed
  • 3 Year warranty

Nothing But LEDs Parking Garage Light is a modern and efficient lighting solution designed specifically for parking garage environments. With its sleek and contemporary design this light fixture not only provides ample illumination but also enhances the overall aesthetic of the parking area. Our parking garage light comes with 60W & 90W also with (DOB) Driver on Board technology which offers high lumens per watt for maximum power savings and rebates from power companies. Our DOB Parking Garage Light is built to withstand the challenging conditions of a parking garage, including exposure to dust, moisture and temperature fluctuations. Its robust construction and durable materials make it a reliable option for long-term use, minimizing maintenance requirements and associated costs.

  • Up to 115 lumens per watt
  • No Dimming
  • Lumileds Chip SMD 2835
  • Energy saving, long lifespan
  • Beam Angle 150° Degree
  • Light is soft and uniform, safe to eyes
  • Green and eco-friendly without mercury
  • Input Voltage 120-277VAC
  • UL Listed
  • 3 Year warranty
Spec Sheet and Reports
General Performance
Description Value

  • Wattage
  • Lumens
  • Lumen Efficacy
  • Color Temperature
  • CRI (Ra)
  • Beam Angle
  • Diffuser Type

  • 60 Watts
  • 6900 LM
  • Up to 115LM/W
  • 5000K
  • >80
  • 150° Degree
  • PC Lens
  • Operating Temperature
  • Operating Humidity
  • Storage Temperature
  • Storage Humidity
  • LED Brand
  • LED Type
  • LED QTY
  • Housing
  • -30°C to 45°C
  • 20% - 90% RH
  • -40°C To 80°C
  • 10% - 95% RH
  • Lumileds
  • SMD2835
  • 120 PCs
  • Die-cast aluminum
Electrical
Description Value
  • Input Voltage
  • Frequency
  • THD
  • Dimming
  • Power Factor
  • Driver Brand
  • Driver Surge Protection
  • Flicker Percent
  • 120-277Vac
  • 50/60 Hz
  • ≥25%
  • No Dimming
  • ≥0.93
  • DOB Driver
  • L/N-PE: 2KV, L-N: 2KV
  • <30%
Frequently Asked Questions
What parking garage environments are best suited for this non-dimmable LED fixture?

This 60 W LED parking garage light is ideal for covered and enclosed parking garages, walkways, entryways, and similar commercial spaces where consistent, bright illumination is required without dimming controls. Its energy-efficient 6,900 lumens output works well for improving visibility and safety in both public and private garage environments.

How does the 150° beam angle help achieve uniform light coverage?

The wide 150° beam angle spreads light broadly across the floor and surrounding area, reducing dark spots and shadows. This wide coverage helps deliver even illumination throughout the space, making it easier for drivers and pedestrians to see clearly across aisles and parking stalls.

What advantages does DOB (Driver on Board) technology offer in garage lighting

This light uses DOB (Driver on Board) technology, which integrates the driver directly into the fixture without a separate external driver box. That simplifies the design, improves reliability, and reduces potential points of failure. It also helps the light achieve higher lumen output per watt and can make the fixture eligible for energy rebates from some utility companies.

How do Lumileds SMD 2835 chips contribute to efficiency and light quality?

The fixture uses Lumileds SMD 2835 LED chips, which are known for delivering bright, efficient light with a long service life. These chips help the fixture reach up to about 115 lumens per watt, meaning more light with less energy use. They also provide consistent color and uniform illumination without flicker.

What benefits does soft, eye-safe illumination provide in parking structures?

This LED produces soft and uniform light that is easy on the eyes, which reduces glare and harsh contrasts in parking structures. This makes it safer and more comfortable for drivers and pedestrians by minimizing sharp brightness differences and improving visual clarity throughout the space.

How does this fixture support long-term, low-maintenance operation?

Built with a die-cast aluminum housing and IP65 rating, this parking garage light resists dust, moisture, and challenging conditions typical of garage environments. The robust components and high-quality LED chips also contribute to a long operating life and reduced maintenance needs, lowering total cost of ownership over time

.
