LED Parking Garage Light | 75 Watt | 10485 Lumens | Adj CCT 3000K-4000K-5000K | 100-277V

LED Parking Garage Light | 75 Watt | 10485 Lumens | Adj CCT 3000K-4000K-5000K | 100-277V

White housing | IP65 | UL & DLC Listed | 5 Year Warranty

  • Up to 140 lm/W
  • Adjustable CCT
  • New housing design for quick and easy mounting and installation
  • UV-stabilized acrylic prismatic refractor with self-retaining screws
  • 3/4” conduit entry on top for pendant mounting
  • 1/2” conduit entries on two sides
  • IP65 Rated
  • Universal 100-277Vac
  • UL & DLC Listed
  • 5 Years warranty
Nothing But LEDs’ Parking Garage Light is a fully featured and highly innovative solution designed specifically for structured garage environments. With adjustable CCT options of 3000K, 4000K, and 5000K, it offers the flexibility to suit a wide ra...
View Important Details
SKU: 1510393
Regular price $89.99 ea.
Sale price $89.99 ea. Regular price $119.99 ea.
Call for Bulk Order
800-414-8919
Product Details
  • Up to 140 lm/W
  • Adjustable CCT
  • New housing design for quick and easy mounting and installation
  • UV-stabilized acrylic prismatic refractor with self-retaining screws
  • 3/4” conduit entry on top for pendant mounting
  • 1/2” conduit entries on two sides
  • IP65 Rated
  • Universal 100-277Vac
  • UL & DLC Listed
  • 5 Years warranty

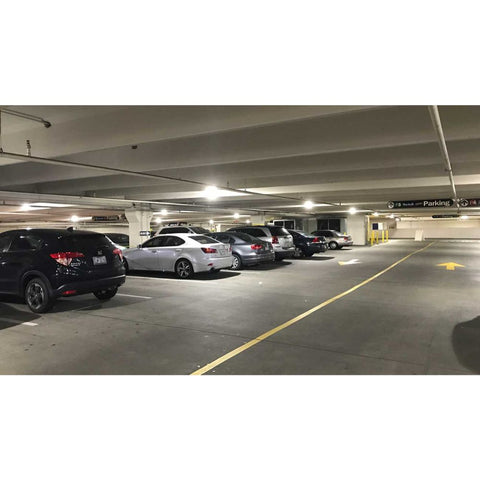

Nothing But LEDs’ Parking Garage Light is a fully featured and highly innovative solution designed specifically for structured garage environments. With adjustable CCT options of 3000K, 4000K, and 5000K, it offers the flexibility to suit a wide range of lighting preferences and project needs. At Nothing But LEDs, we recognize that every garage is unique. That’s why we take a comprehensive approach—evaluating the entire space to deliver LED garage lighting solutions that are tailored for maximum effectiveness. These high-performance LED garage lights combine energy efficiency with cutting-edge technology to enhance visibility, safety, and overall security. As with all our products, this lighting solution is supported by expert pre-sale and post-sale service, including detailed layout assistance to ensure your LED garage lighting project runs smoothly from start to finish.

  • Up to 140 lm/W
  • Adjustable CCT
  • New housing design for quick and easy mounting and installation
  • UV-stabilized acrylic prismatic refractor with self-retaining screws
  • 3/4” conduit entry on top for pendant mounting
  • 1/2” conduit entries on two sides
  • IP65 Rated
  • Universal 100-277Vac
  • UL & DLC Listed
  • 5 Years warranty
General Performance
Description Value
  • Model #
  • Watt
  • Max Lumen
  • Lumen Efficacy
  • Color Temperature
  • CRI (Ra)
  • Beam Angle
  • Diffuser Type
  • BLT-PG05B-75WAT2A1-abcd
  • 75W
  • 10485Lm
  • Up to 140lm/W
  • 3000K / 4000K / 5000K
  • >80
  • 150° Beam Angle
  • Clear Stripe PC
Electrical
Description Value
  • Input Voltage
  • Frequency
  • THD
  • Dimming
  • Power Factor
  • Driver Brand
  • Driver Model
  • Driver Surge Protection
  • Flicker Percent
  • 100-277V
  • 50/60Hz
  • ≤20%
  • 1-10V
  • ≥0.9
  • Daermay
  • M-080D100
  • L/N-PE: 3kV, L-N: 3kV
  • <80%
Physical
Description Value
  • Operating Temperature
  • Operating Humidity
  • Storage Temperature
  • Storage Humidity
  • LED Brand
  • LED Type
  • LED QTY
  • Housing Material
  • -30°C TO +50°C
  • 20% - 90% RH
  • -40oC TO 80oC
  • 10% - 95% RH
  • LUMILEDS
  • SMD2835
  • 168 PCS
  • Die-cast Aluminum
