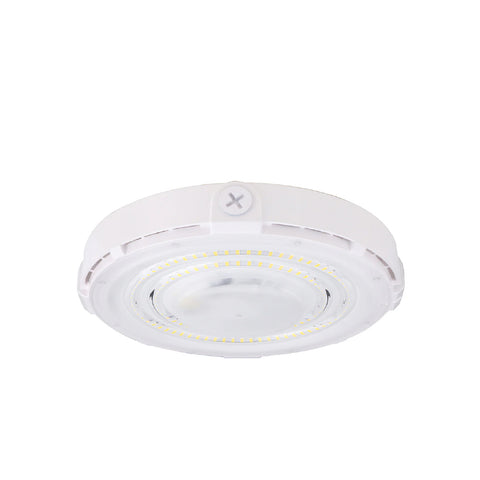

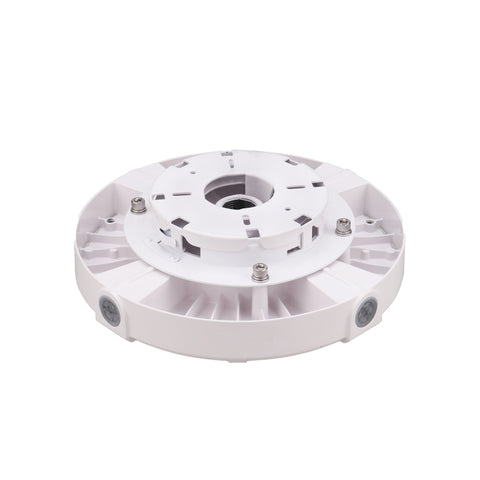

LED Parking Garage Light | 90 Watt | 10350 Lumens | 5000K | 120-277V

LED Parking Garage Light | 90 Watt | 10350 Lumens | 5000K | 120-277V

IP65 - UL Listed - 3 Year Warranty

  • Up to 115 lumens per watt
  • No Dimming
  • Lumileds Chip SMD 2835
  • Energy saving, long lifespan
  • Beam Angle 150° Degree
  • Light is soft and uniform, safe to eyes
  • Green and eco-friendly without mercury
  • Input Voltage 120-277VAC
  • UL Listed
  • 3 Year warranty
Nothing But LEDs Parking Garage Light is a modern and efficient lighting solution designed specifically for parking garage environments. With its sleek and contemporary design this light fixture not only provides ample illumination but also enhances the overall aesthetic of the parking area. Our parking garage light comes with 60W & 90W also with (DOB) Driver on Board technology which offers high lumens per watt for maximum power savings a...
View Important Details
SKU: 1560695
$49.99 ea.
$49.99 ea. ea.
Call for Bulk Order
800-414-8919
Spec Logo Spec Logo Spec Logo
Product Details
  • Up to 115 lumens per watt
  • No Dimming
  • Lumileds Chip SMD 2835
  • Energy saving, long lifespan
  • Beam Angle 150° Degree
  • Light is soft and uniform, safe to eyes
  • Green and eco-friendly without mercury
  • Input Voltage 120-277VAC
  • UL Listed
  • 3 Year warranty

Nothing But LEDs Parking Garage Light is a modern and efficient lighting solution designed specifically for parking garage environments. With its sleek and contemporary design this light fixture not only provides ample illumination but also enhances the overall aesthetic of the parking area. Our parking garage light comes with 60W & 90W also with (DOB) Driver on Board technology which offers high lumens per watt for maximum power savings and rebates from power companies. Our DOB Parking Garage Light is built to withstand the challenging conditions of a parking garage, including exposure to dust, moisture and temperature fluctuations. Its robust construction and durable materials make it a reliable option for long-term use, minimizing maintenance requirements and associated costs.

  • Up to 115 lumens per watt
  • No Dimming
  • Lumileds Chip SMD 2835
  • Energy saving, long lifespan
  • Beam Angle 150° Degree
  • Light is soft and uniform, safe to eyes
  • Green and eco-friendly without mercury
  • Input Voltage 120-277VAC
  • UL Listed
  • 3 Year warranty
Spec Sheet and Reports
General Performance
Description Value

  • Wattage
  • Lumens
  • Lumen Efficacy
  • Color Temperature
  • CRI (Ra)
  • Beam Angle
  • Diffuser Type

  • 90 Watts
  • 10350 LM
  • Up to 115LM/W
  • 5000K
  • >80
  • 150° Degree
  • PC Lens
  • Operating Temperature
  • Operating Humidity
  • Storage Temperature
  • Storage Humidity
  • LED Brand
  • LED Type
  • LED QTY
  • Housing
  • -30°C to 45°C
  • 20% - 90% RH
  • -40°C To 80°C
  • 10% - 95% RH
  • Lumileds
  • SMD2835
  • 210 PCs
  • Die-cast aluminum
Electrical
Description Value
  • Input Voltage
  • Frequency
  • Dimming
  • Power Factor
  • Flicker Percent
  • THD
  • Driver Model
  • Driver Surge Protection
  • 120-277Vac
  • 50/60 Hz
  • ≥25%
  • No Dimming
  • ≥0.93
  • DOB Driver
  • L/N-PE: 2KV, L-N: 2KV
  • <30%
Frequently Asked Questions
What wattage options are available for this parking garage light?

This parking garage fixture is available as a 90 W model producing about 10,350 lumens. Nothing But LEDs also offers a 60 W version of this style for smaller or lower-brightness installations.

How does the wide 150° beam angle improve visibility in parking structures?

The 150° beam angle spreads light broadly across the area beneath and around the fixture. In a parking garage, this wide distribution helps reduce dark spots and shadows between vehicles, aisles, and walkways, giving you more even, uniform illumination from wall to wall.

What are the advantages of using DOB (Driver on Board) technology?

This light uses DOB (Driver on Board) technology, which integrates the power driver directly onto the LED board rather than using a separate external driver. That simplifies the design, improves reliability, and reduces components that can fail over time. DOB technology also helps deliver high lumens per watt, which supports energy savings and can make the fixture eligible for some utility rebates.

How do Lumileds SMD 2835 chips impact light quality and efficiency?

The fixture uses Lumileds SMD 2835 LED chips, which are known for producing bright, efficient light with a long service life. These chips help the fixture reach around 115 lumens per watt of output, meaning strong illumination with lower energy use. They also deliver consistent color quality and uniform light without flicker.

Why is soft, uniform illumination important for parking garage safety?

Soft, uniform light reduces harsh glare and sharp contrast between bright and dark areas. That helps drivers and pedestrians see vehicles, obstacles, steps, and pedestrians more easily. Even lighting improves overall safety and makes navigation more comfortable in a parking garage environment.

How does this fixture support long-term, low-maintenance operation?

This parking garage light is built with a die-cast aluminum housing and has an IP65 rating, which protects it from dust and water exposure. The durable construction and high-quality LED chips give it a long operating life with minimal maintenance, making it a reliable solution for parking structures, garages, and other commercial spaces where lights run for long hours.

.
