LED Parking Garage Light | 90 Watt | 12600 Lumens | Adjustable CCT 3000K-4000K-5000K | 100-277V | White Housing | IP65 | UL & DLC Listed | 5 Year Warranty

LED Parking Garage Light | 90 Watt | 12600 Lumens | Adjustable CCT 3000K-4000K-5000K | 100-277V | White Housing | IP65 | UL & DLC Listed | 5 Year Warranty

White Housing - IP65 - UL & DLC Listed - 5 Year Warranty

  • Up to 140 Lumens per watt.
  • Adjustable CCT 3000K/4000K/5000K.

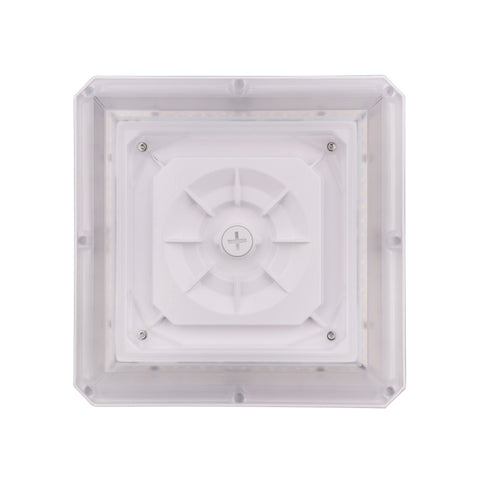

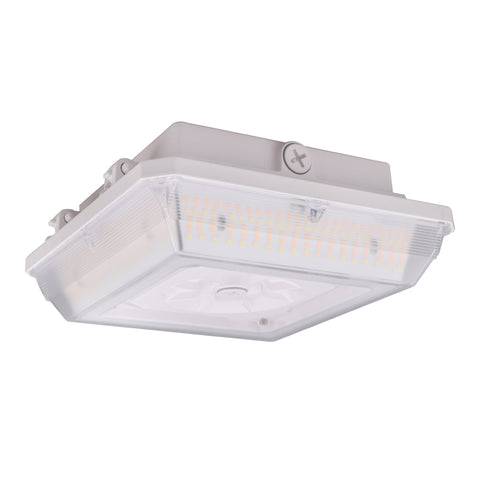

  • Die-cast aluminum housing with prismatic polycarbonate lens Designed for 9 to 16-foot mounting heights.
  • Beam angle 190º Degree.
  • Optional Screw-in Motion Sensor.
  • Programmable remote which can program the entire project.
  • Instant start, NO flickering, NO humming.
  • 0-10V Dimmable.
  • Input voltage 100-277VAC.
  • IP65 Rated.
  • UL & DLC listed.
  • 5 Years warranty.

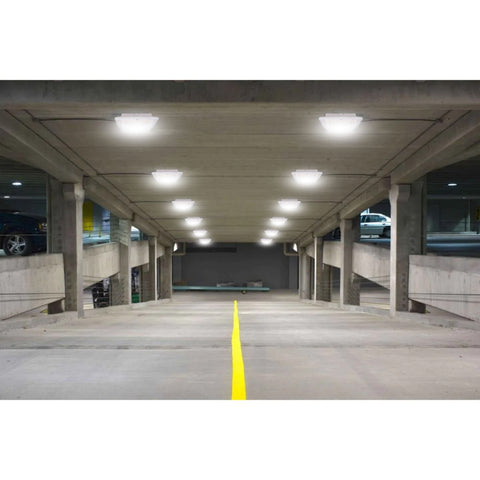

Nothing But LED's Parking Garage Light fixture is fully-featured and the most innovative product of its kind. This new 2022 model offers CCT Adjustable options of 3000K, 4000K & 5000K. Because of it unique design, it offers 190 degree beam angle and more efficient light distribution. At Nothing But LED's we know every parking garage application is unique. Our Parking Garage fixtures offer high performance, energy-efficiency and the best te...
View Important Details
SKU: 1550656
$84.99 ea.
$84.99 ea. ea.
Call for Bulk Order
800-414-8919
Spec Logo Spec Logo Spec Logo
Spec Sheet and Reports
Product Details
  • Up to 140 Lumens per watt.
  • Adjustable CCT 3000K/4000K/5000K.
  • Die-cast aluminum housing with prismatic polycarbonate lens Designed for 9 to 16-foot mounting heights.
  • Beam angle 190º Degree.
  • Optional Screw-in Motion Sensor.
  • Programmable remote which can program the entire project.
  • Instant start, NO flickering, NO humming.
  • 0-10V Dimmable.
  • Input voltage 100-277VAC.
  • IP65 Rated.
  • UL & DLC listed.
  • 5 Years warranty.
Nothing But LED's Parking Garage Light fixture is fully-featured and the most innovative product of its kind. This new 2022 model offers CCT Adjustable options of 3000K, 4000K & 5000K. Because of it unique design, it offers 190 degree beam angle and more efficient light distribution. At Nothing But LED's we know every parking garage application is unique. Our Parking Garage fixtures offer high performance, energy-efficiency and the best technology to deliver parking garage lighting for optimum “sealability”, safety and security.
  • Up to 140 Lumens per watt.
  • Adjustable CCT 3000K/4000K/5000K.
  • Die-cast aluminum housing with prismatic polycarbonate lens Designed for 9 to 16-foot mounting heights.
  • Beam angle 190º Degree.
  • Optional Screw-in Motion Sensor.
  • Programmable remote which can program the entire project.
  • Instant start, NO flickering, NO humming.
  • 0-10V Dimmable.
  • Input voltage 100-277VAC.
  • IP65 Rated.
  • UL & DLC listed.
  • 5 Years warranty.
Spec Sheet and Reports
General Performance
Description Value
  • Model #
  • Wattage
  • Lumens
  • Lumen Efficacy
  • Color Temperature
  • CRI (Ra)
  • Beam Angle
  • Diffuser Type
  • BLT-PG07-90WBSP1DA1-WH30/40/50
  • 90W
  • 12600Lm
  • Up to 140Lm/W
  • 3000K / 4000K / 5000K
  • >80
  • 190° Degree
  • Stripe Lens
  • Operating Temperature
  • Operating Humidity
  • Storage Temperature
  • Storage Humidity
  • LED Brand
  • LED Type
  • LED QTY
  • Housing Material
  • Housing Color
  • Without Motion Sensor: -40°C TO 50°C;
    With Motion Sensor: -30°C TO 50°C
  • 10％-90％ RH
  • -40°C TO 75°C
  • 10％-90％ RH
  • Lumileds 2835
  • SMD2835 (0.5W)
  • 280 *2PCS
  • Die-Cast Aluminum
  • White
Electrical
Description Value
  • Input Voltage
  • Frequency
  • Dimming
  • Power Factor
  • Driver Surge Protection
  • Flicker Percent
  • 100-277Vac
  • 50/60Hz
  • 0-10V
  • ≥0.9
  • L/N-PE: 6kV, L-N: 6kV
  • <5%
.
