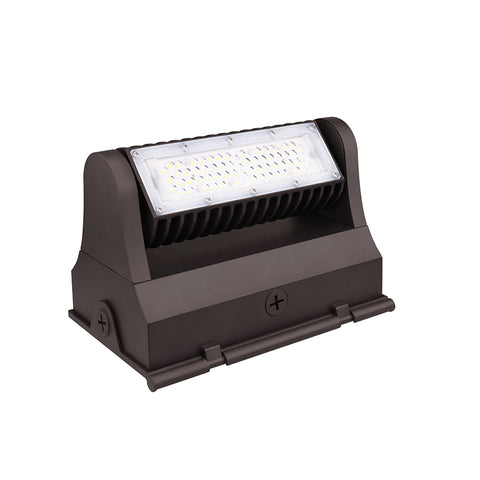

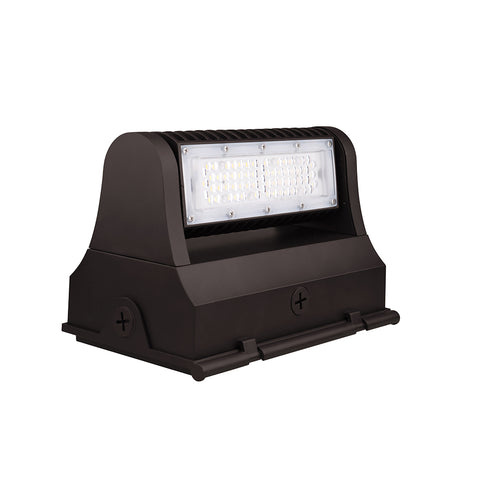

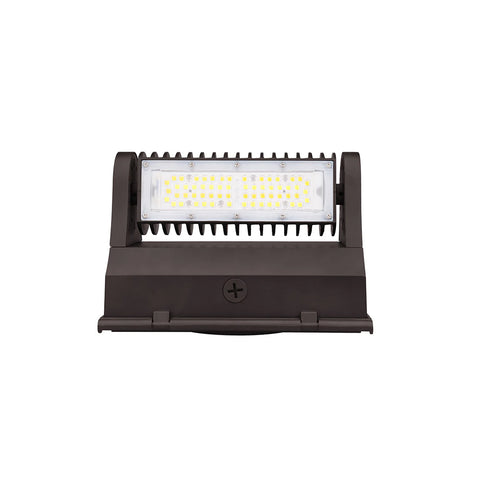

LED Rotatable Wall Pack | Adj Watt 30W/40W/60W | 8199 Lumens | 5000K | 100V-277V

LED Rotatable Wall Pack | Adj Watt 30W/40W/60W | 8199 Lumens | 5000K | 100V-277V

IP65 - UL & DLC Listed - 5 Year Warranty

  • Up to 145 lm/W
  • Adjustable Wattage
  • Universal operation at 120-277Vac 50-60Hz
  • Operating temperature: -30°C to 45°C
  • Durable die-cast aluminium housing
  • Enclosure provides a water-tight seal making it suitable for outdoor application
  • Integral LED driver (isolated), eliminates the need for an external driver or ballast
  • High Quality and Efficacy SMD3030 chips
  • This product is IP65 rated, therefore, it is waterproof, sealed and gasketed wire
  • 60° viewing angle
  • Environment friendly with no mercury
  • Easy to install and operate, with instant and no humming
  • UL & DLC Listed
  • 5 Year warranty
Nothing But LED's rotatable wall pack is the newest and most revolutionary product of 2021. It offers a rotatable classic appearance with energy-efficient LED technology. With our Range luminaires, you can angle the light exactly where you need it! You don't have to guess which light to buy; you can easily rotate the light to push it all away from the building, all down, or find that perfect balance. Our LED offers three adjustable wattages. O...
View Important Details
SKU: 1530594
$69.99 ea.
$69.99 ea. ea.
Call for Bulk Order
800-414-8919
Spec Logo Spec Logo Spec Logo
Product Details
  • Up to 145 lm/W
  • Adjustable Wattage
  • Universal operation at 120-277Vac 50-60Hz
  • Operating temperature: -30°C to 45°C
  • Durable die-cast aluminium housing
  • Enclosure provides a water-tight seal making it suitable for outdoor application
  • Integral LED driver (isolated), eliminates the need for an external driver or ballast
  • High Quality and Efficacy SMD3030 chips
  • This product is IP65 rated, therefore, it is waterproof, sealed and gasketed wire
  • 60° viewing angle
  • Environment friendly with no mercury
  • Easy to install and operate, with instant and no humming
  • UL & DLC Listed
  • 5 Year warranty

Nothing But LED's rotatable wall pack is the newest and most revolutionary product of 2021. It offers a rotatable classic appearance with energy-efficient LED technology. With our Range luminaires, you can angle the light exactly where you need it! You don't have to guess which light to buy; you can easily rotate the light to push it all away from the building, all down, or find that perfect balance. Our LED offers three adjustable wattages. Our LED luminaires come with a die-cast aluminum housing and a polycarbonate lens to stand up to many years of punishing environmental conditions.

  • Up to 145 lumens per watt
  • Universal operation at 120-277Vac 50-60Hz
  • Wattage Adjustable
  • Operating temperature: -30°C to 45°C
  • Durable die-cast aluminium housing
  • Enclosure provides a water-tight seal making it suitable for outdoor application
  • Integral LED driver (isolated), eliminates the need for an external driver or ballast
  • High Quality and Efficacy SMD3030 chips
  • This product is IP65 rated, therefore, it is waterproof, sealed and gasketed wire
  • 60° viewing angle
  • Environment friendly with no mercury
  • Easy to install and operate, with instant and no humming
  • UL & DLC Listed
  • 5 Year warranty
Spec Sheet and Reports
General Performance
Description Value
  • Adjustable Wattage
  • Lumen
  • Lumen Efficacy
  • Color Temperature
  • CRI
  • Viewing Angle
  • 30W / 40W / 60W
  • Up to 8700LM
  • Up to 145LM/W
  • 5000K
  • >70
  • 60 Degree
  • Operating Temperature
  • Operating Humidity
  • Storage Temperature
  • Storage Humidity
  • LED Brand
  • LED Type
  • LED QTY
  • Housing
  • Housing Color
  • -30℃ TO 45℃
  • 10％-90％ RH
  • -40℃ TO 80℃
  • 10％-95％ RH
  • Seoul
  • SMD 3030
  • 63 PCS
  • Aluminium Alloy
  • Bronze
Electrical
Description Value
  • Input Voltage
  • PF
  • THD
  • Driver Model
  • 120-277VAC 50/60Hz
  • ≥0.9
  • ≤20%
  • FD-150E-054B
Frequently Asked Questions
How does the rotatable design help direct light away from or toward the building?

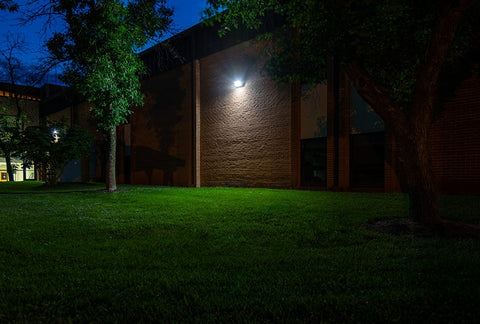

 The rotatable housing lets you aim the light where you want it. You can turn the fixture outward to light a pathway, parking space, or courtyard, or you can angle it inward to wash a wall surface. This flexibility helps reduce unwanted glare into windows or adjacent properties and allows you to control light placement based on the specific layout of your site.

What is the difference between the adjustable wattage options (30W, 40W, 60W)?

The wattage settings let you choose between different brightness levels and energy use. 30W uses the least energy and works well for small walkways or areas that need mild illumination. 40W gives a moderate level of light for general exterior lighting needs. 60W produces the highest brightness suited for larger spaces or areas with greater security or visibility requirements. This lets you match light output to the task at hand.

Is this LED rotatable wall pack suitable for outdoor use in extreme temperatures?

 Yes. This wall pack is built for outdoor environments and is rated IP65, which means it resists dust and water exposure. The LED driver and components are designed to handle a wide range of outdoor temperatures, so the light performs reliably in heat, cold, rain, and other conditions that outdoor fixtures typically face.

Can this wall pack operate on both 120V and 277V electrical systems?

Yes. This wall pack supports a wide input voltage range from 100 V up to 277 V. That means it can be installed on standard residential circuits as well as commercial or industrial power systems without the need for special transformers or power supplies.

What types of applications benefit most from the 60° viewing angle design?

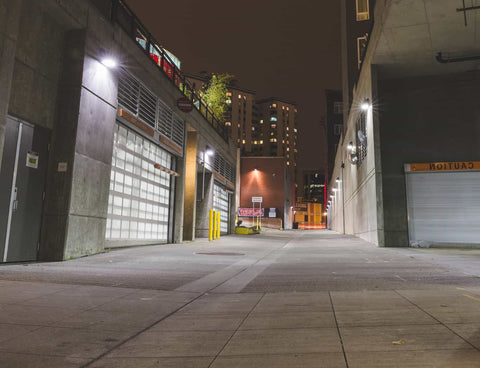

The 60-degree viewing angle focuses light in a controlled beam that is ideal for walkways, building perimeters, entryways, loading docks, and courtyards. It spreads light over the intended area without wasting illumination on surrounding spaces, making it useful where directed light improves safety, reduces glare, and enhances visibility.

Is this LED rotatable wall pack eligible for rebates with UL and DLC listings?

Yes. This fixture is both UL Listed and DLC Listed, which are certifications required by many utility rebate and energy-efficiency incentive programs. Because it meets recognized safety and performance standards, it is often eligible for utility rebates when installed as part of an energy-efficient lighting upgrade.

.
