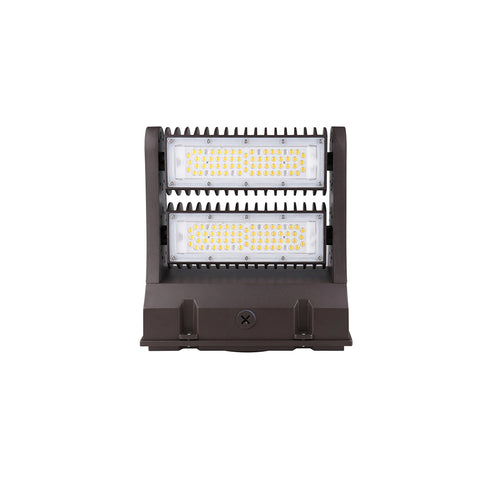

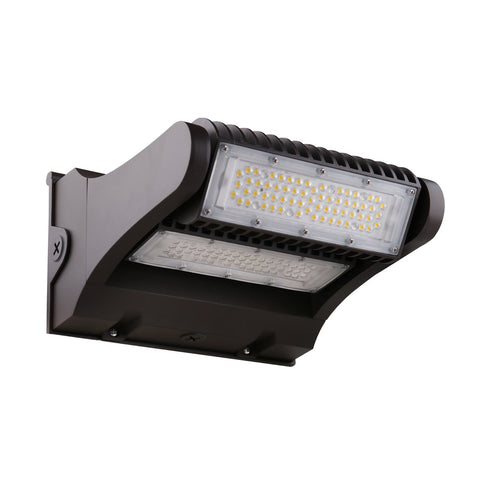

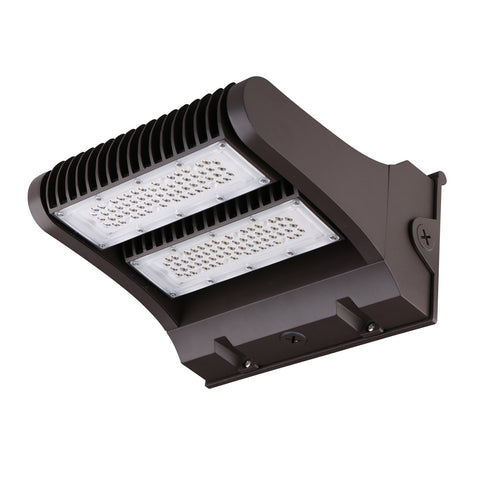

LED Rotatable Wall Pack | Adj Watt 80W/100W/120W | 16527 Lumens | 5000K | 100V-277V

LED Rotatable Wall Pack | Adj Watt 80W/100W/120W | 16527 Lumens | 5000K | 100V-277V

IP65 - UL & DLC Listed - 5 Year Warranty

  • Up to 145 lm/W
  • Adjustable wattage
  • Durable die-cast aluminum housing with black powder coat finish
  • 0-10V Dimmable
  • 360° rotatable lens
  • IP65
  • Universal 100-277Vac
  • UL & DLC Listed
  • 5 Year Warranty
Nothing But LED's rotatable wall pack is the newest and most revolutionary product of 2021. It offers a rotatable classic appearance with energy-efficient LED technology. With our Range luminaires, you can angle the light exactly where you need it! You don’t have to guess which light to buy; you can easily rotate the light to push it all away from the building, all down, or find that perfect balance. Our LED offers three adjustable wattages. O...
View Important Details
SKU: 1530593
$84.99 ea.
$84.99 ea. ea.
Call for Bulk Order
800-414-8919
Spec Logo Spec Logo Spec Logo
Product Details
  • Up to 145 lm/W
  • Adjustable wattage
  • Durable die-cast aluminum housing with black powder coat finish
  • 0-10V Dimmable
  • 360° rotatable lens
  • IP65
  • Universal 100-277Vac
  • UL & DLC Listed
  • 5 Year Warranty
Nothing But LED's rotatable wall pack is the newest and most revolutionary product of 2021. It offers a rotatable classic appearance with energy-efficient LED technology. With our Range luminaires, you can angle the light exactly where you need it! You don’t have to guess which light to buy; you can easily rotate the light to push it all away from the building, all down, or find that perfect balance. Our LED offers three adjustable wattages. Our LED luminaires come with a die-cast aluminum housing and a polycarbonate lens to stand up to many years of punishing environmental conditions.

  • Up to 145 lumens per watt
  • Rotatable Wall pack / 5000K / Adjustable Wattage 120W/100W/80W
  • Adjustable wattage
  • Durable die-cast aluminum housing with black powder coat finish
  • 0-10V Dimmable
  • 360° rotatable lens
  • IP65 Waterproof sealed and gasketed wire way enclosure provides a water-tight seal
  • Universal 100-277Vac
  • UL & DLC Listed
Spec Sheet and Reports
General Performance
Description Value
  • Adjustable Wattage
  • Lumen
  • Lumen Efficacy
  • Color Temperature
  • CRI
  • Viewing Angle
  • 80W /100W /120W
  • Up to 17400LM
  • Up to 145LM/W
  • 5000K
  • >70
  • 60 Degree
  • Operating Temperature
  • Operating Humidity
  • Storage Temperature
  • Storage Humidity
  • LED Brand
  • LED Type
  • LED QTY
  • Housing
  • Housing Color
  • -30℃ TO 45℃
  • 10％-90％ RH
  • -40℃ TO 80℃
  • 10％-95％ RH
  • Seoul
  • SMD 3030
  • 126 PCS
  • Aluminium Alloy
  • Bronze
Electrical
Description Value
  • Input Voltage
  • PF
  • THD
  • Driver Model
  • 120-277VAC 50/60Hz
  • ≥0.9
  • ≤20%
  • FD-150E-054B
Frequently Asked Questions

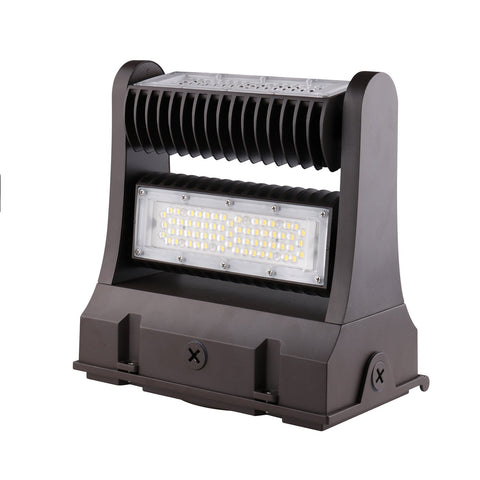

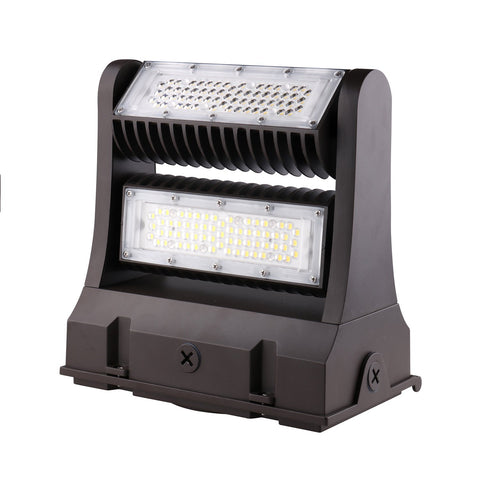

How does the 360° rotatable lens help control light direction and reduce light spill?

The rotatable design lets you turn the optical assembly so the light points exactly where you need it. You can tilt the beam down toward a walkway or out across a parking area, or angle it away from windows and neighboring properties to cut down on glare and light spill. This makes your lighting more efficient and focused on the intended area.

What are the benefits of choosing between the 80W, 100W, and 120W wattage settings?

Each wattage setting gives you a different level of brightness and energy use. The 80W setting uses less power and is good for smaller exterior areas or lower height walls. The 100W setting provides a balanced performance for medium-sized spaces. The 120W setting delivers the most light for larger areas, perimeter lighting, and places that need stronger visibility. This lets you tailor the output to the application and save energy when less light is acceptable.

Is this LED rotatable wall pack compatible with 0-10V dimming systems?

Yes. It supports 0-10V dimming, so you can connect it to lighting control systems that use this standard. This allows you to adjust brightness levels for energy savings or integrate it with smart controls and lighting schedules.

Can this wall pack operate on a wide voltage range from 100V to 277V?

 Yes. This wall pack is designed to work across a wide range of input voltages from 100 V up to 277 V. That means it can be installed on most common electrical systems found in commercial and industrial settings without needing special transformers or power conversion.



Is this fixture suitable for wet or outdoor locations with its IP65 rating?

 Yes. The IP65 rating means the fixture is sealed against dust and protected from water jets from all directions. This makes it well-suited for outdoor and wet locations where it may be exposed to rain, splashing, or dust and wind, helping it maintain reliable performance over time.

What commercial or outdoor applications are best suited for this high-output rotatable wall pack?

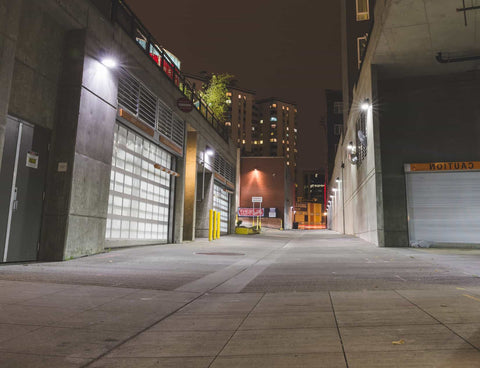

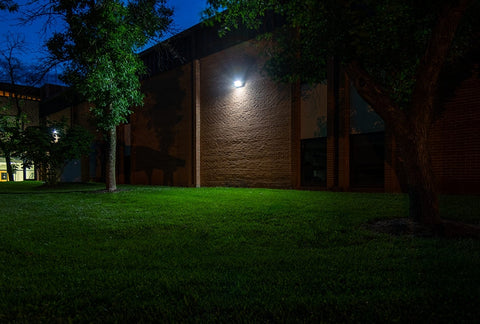

 This high-output rotatable wall pack works well for a variety of outdoor commercial and industrial applications. It is a good choice for security and perimeter lighting around buildings, loading docks, warehouse exteriors, walkways, parking areas, and entrances where directed, powerful illumination improves safety and visibility. Its ability to turn the light where it is needed and its strong lumen output make it versatile for many exterior lighting needs.

.
