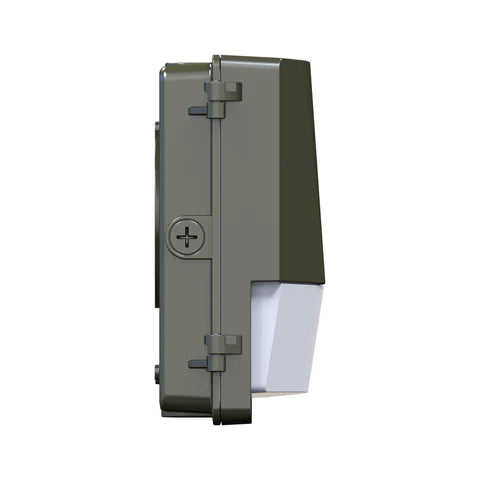

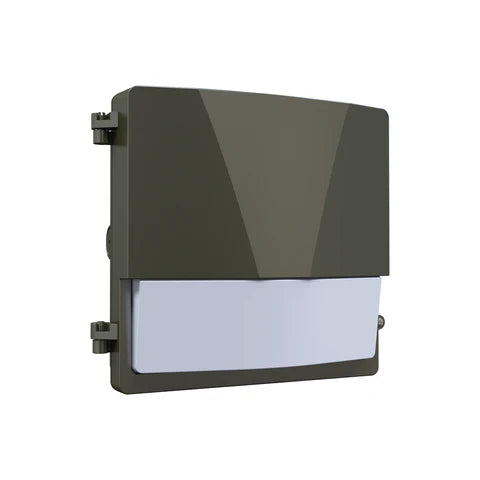

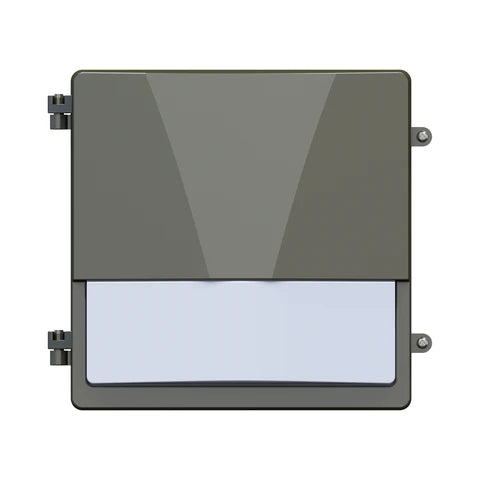

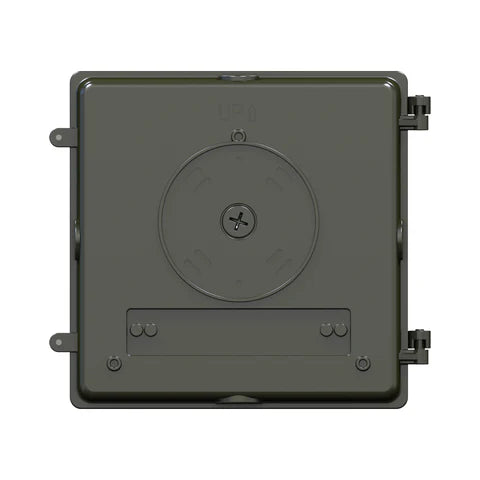

LED Semi Cut-off Wall Pack | Adj Watt 35W/50W/70W | 9450 Lumens | 5000K | 100-277Vac

LED Semi Cut-off Wall Pack | Adj Watt 35W/50W/70W | 9450 Lumens | 5000K | 100-277Vac

Bronze Housing - IP65 - UL & DLC Listed

  • Up to 135 lm/W
  • Adjustable wattages
  • Adjustable CCT
  • Built-in photocell
  • Die-cast aluminum
  • Bronze Housing
  • Input Voltage 100-277Vac
  • IP65 rated
  • UL & DLC Listed
Nothing But LEDs (SEMI CUT-OFF) LED Wall Pack is an innovative, high-performance lighting solution designed for a wide range of outdoor applications. Featuring a sleek, modern design, the Semi Cut-off Wall Pack offers adjustable wattage and CCT selections, providing flexible lighting options to meet various requirements. It delivers exceptional performance while maximizing energy savings. The Semi Cut-off Wall Pack is engineered for durability...
View Important Details
SKU: 1570087
$54.99 ea.
$54.99 ea. $69.99 ea.

Save $15.00

Call for Bulk Order
800-414-8919
Spec Logo Spec Logo Spec Logo
Product Details
  • Up to 135 lm/W
  • Adjustable wattages
  • Adjustable CCT
  • Built-in photocell
  • Die-cast aluminum
  • Bronze Housing
  • Input Voltage 100-277Vac
  • IP65 rated
  • UL & DLC Listed

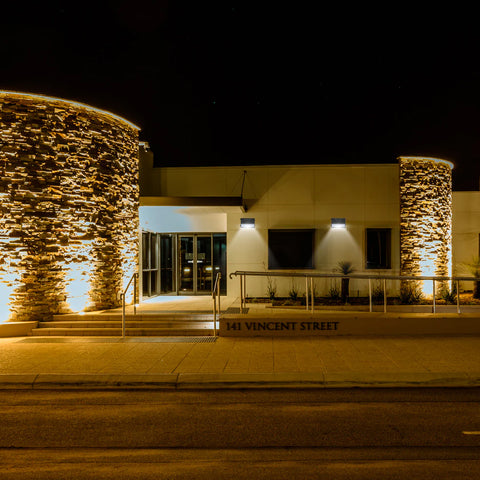

Nothing But LEDs (SEMI CUT-OFF) LED Wall Pack is an innovative, high-performance lighting solution designed for a wide range of outdoor applications. Featuring a sleek, modern design, the Semi Cut-off Wall Pack offers adjustable wattage and CCT selections, providing flexible lighting options to meet various requirements. It delivers exceptional performance while maximizing energy savings. The Semi Cut-off Wall Pack is engineered for durability, with a die-cast aluminum housing and polycarbonate lens that ensures long-lasting protection. A built-in photocell allows for automatic dusk-to-dawn operation, further enhancing energy efficiency. IP65-rated, this fixture is dustproof and water-resistant, making it perfect for outdoor environments such as parking lots, walkways, building exteriors, and more.

  • Up to 135 lm/W
  • Adjustable wattages
  • Adjustable CCT
  • Built-in photocell
  • Die-cast aluminum
  • Bronze Housing
  • Input Voltage 100-277Vac
  • IP65 rated
  • UL & DLC Listed
    Spec Sheet and Reports
    General Performance
    Description Value

    • Watt
    • Max Lumens
    • Lumen Efficacy
    • Color Temperature
    • CRI (Ra)
    • Light Spread
    • Diffuser Type

    • 35W/50W/70W
    • 9450
    • Up to 135LM/W
    • 5000K
    • >80
    • 100°
    • PC Lens
    • Operating Temperature
    • Operating Humidity
    • Storage Temperature
    • Storage Humidity
    • LED Brand
    • LED Type
    • LED QTY
    • Construction
    • -40°C +40°C
    • 10% - 80%RH
    • - 30°C + 70°C
    • 10% - 90%RH
    • Bridgelux
    • 2835
    • 340
    • Die-Cast Aluminum
    Electrical
    Description Value
    • Input Voltage
    • Frequency
    • Dimming
    • Power Factor
    • Flicker Percent
    • Driver Brand
    • Driver Model
    • Driver Surge Protection
    • 100-277Vac
    • 50/60Hz
    • 0-10V
    • ≥0.9
    • ≤50%
    • GUYUAN
    • GY-70W-115V-0690-UNV-10-H-ADJ1
    • 2KV(L-N);4KV(L/N-G)
    Frequently Asked Questions
    What does the semi cut-off design mean, and how does it affect light distribution?

    A semi cut-off design focuses more light downward and outward while reducing the amount that shines upward. This design helps direct illumination where it is needed on pathways, walls, and ground surfaces while cutting down glare and light spilling into the sky or into nearby properties. It improves visibility and comfort without wasting light.

    How do the adjustable wattage options (35W, 50W, 70W) help with energy savings?

    The adjustable wattage options let you choose the right level of brightness and power use for your space. Lower settings like 35 W and 50 W use less energy and are suitable for smaller outdoor areas or lower traffic zones. The 70 W setting delivers more light for larger areas or spots that need stronger illumination. Being able to choose the output helps you avoid using more power than necessary, which saves energy and lowers operating costs.

    Can the adjustable CCT feature be changed on-site after installation?

     Yes. This product includes an adjustable CCT feature, so you can change the color temperature on site to match the look and function you want. You can select the preferred light tone during installation or later without swapping out the fixture.

    Does the built-in photocell enable automatic dusk-to-dawn operation?

    Yes. This wall pack includes a built-in photocell that senses ambient light. It automatically turns the fixture on at dusk and off at dawn without manual switching. This keeps the light operating only when needed and helps reduce energy use.

    Is this semi cut-off wall pack suitable for wet or outdoor locations with its IP65 rating?

    Yes. The IP65 rating means the fixture is sealed against dust and protected from water jets from any direction. This level of protection makes it suitable for outdoor and wet locations where rain, splashes, and dirt are common. The housing and lens are designed to handle these conditions reliably.

    What types of outdoor applications are best suited for this LED semi cut-off wall pack?

     This wall pack is a good choice for a range of outdoor lighting needs. It works well on building exteriors, walkways, parking perimeters, loading zones, and entrances where controlled downward lighting is needed. The adjustable wattage and built-in photocell make it useful for both commercial and residential exterior lighting projects.

    .
