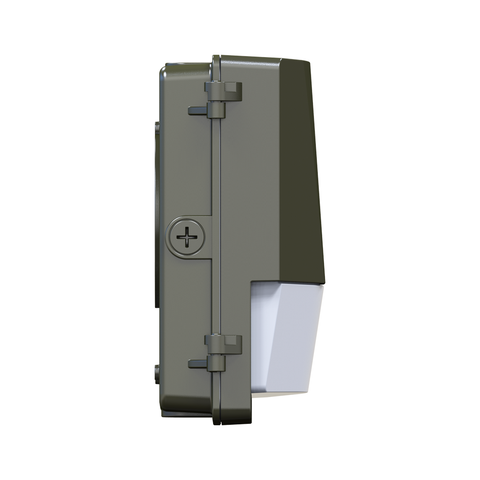

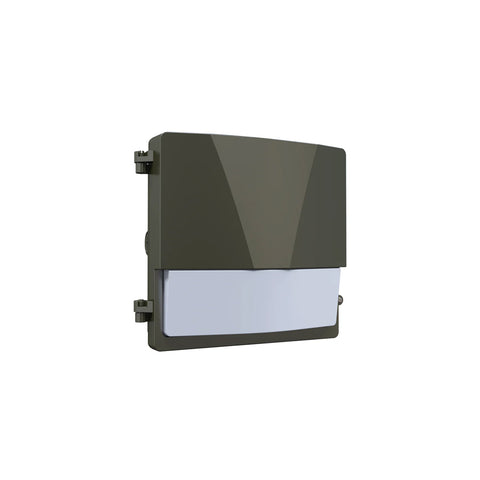

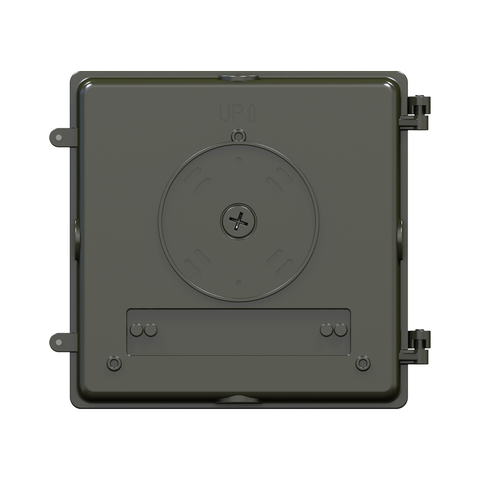

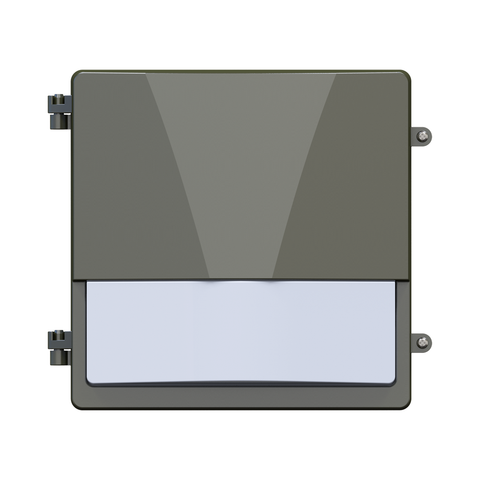

LED Semi Cut-off Wall Pack | Adj Watt 40W/50W/60W | 7200 Lumens | Adj CCT 3000K/4000K/5000K | 120-277V

LED Semi Cut-off Wall Pack | Adj Watt 40W/50W/60W | 7200 Lumens | Adj CCT 3000K/4000K/5000K | 120-277V

Built In Photocell - IP65 - UL & DLC Listed - 5 Year Warranty

  • High Efficiency 2835 Chips
  • Up to 120 lumens per watt
  • Adjustable Wattage
  • Adjustable CCT
  • Built-in photocell
  • Durable die-cast aluminum housing with dark bronze powder coat finish
  • Rated IP65 with sealed and gasketed wire way enclosure provides a water-tight seal
  • Universal 120-277Vac
  • 0-10V Dimming
  • UL & DLC Listed
  • 5 years warranty
Nothing But LED's Semi Cut-off Wall Pack is the newest, most innovative, and feature-rich product of 2022. Its unique and sleek design offers three wattages and CCT selection. The wall pack comes with energy-efficient LED technology and has a built-in photocell. Wall pack luminaires come with die-cast aluminum housings and a polycarbonate lens to stand up to many years of punishing environmental conditions. High Efficiency 2835 Chips Up to 12...
View Important Details
SKU: 1540305
$99.99 ea.
$99.99 ea. ea.
Call for Bulk Order
800-414-8919
Spec Logo Spec Logo Spec Logo
Product Details
  • High Efficiency 2835 Chips
  • Up to 120 lumens per watt
  • Adjustable Wattage
  • Adjustable CCT
  • Built-in photocell
  • Durable die-cast aluminum housing with dark bronze powder coat finish
  • Rated IP65 with sealed and gasketed wire way enclosure provides a water-tight seal
  • Universal 120-277Vac
  • 0-10V Dimming
  • UL & DLC Listed
  • 5 years warranty

Nothing But LED's Semi Cut-off Wall Pack is the newest, most innovative, and feature-rich product of 2022. Its unique and sleek design offers three wattages and CCT selection. The wall pack comes with energy-efficient LED technology and has a built-in photocell. Wall pack luminaires come with die-cast aluminum housings and a polycarbonate lens to stand up to many years of punishing environmental conditions.

  • High Efficiency 2835 Chips
  • Up to 120 lumens per watt
  • Adjustable Wattage
  • Adjustable CCT
  • Built-in photocell
  • Durable die-cast aluminum housing with dark bronze powder coat finish
  • Rated IP65 with sealed and gasketed wire way enclosure provides a water-tight seal
  • Universal 120-277Vac
  • 0-10V Dimming
  • UL & DLC Listed
  • 5 years warranty
Spec Sheet and Reports
General Performance
Description Value

  • Wattage Adjustable
  • Lumen
  • Lumen Efficacy
  • Color Temperature
  • CRI (Ra)
  • Beam Angle
  • Diffuser Type

  • 60W/50W/40W
  • 7200Lm
  • Up to 120LM/W
  • 3K/4K/5K
  • >80
  • 120°X90°X10° Degree
  • PC Lens
  • Operating Temperature
  • Operating Humidity
  • Storage Temperature
  • Storage Humidity
  • LED Brand
  • LED Type
  • LED QTY
  • -40 +40 ºC
  • 10% - 80%RH
  • - 30 + 70 ºC
  • 10% - 90%RH
  • Lightsource
  • 2835
  • 216
Electrical
Description Value
  • Input Voltage
  • Frequency
  • Dimming
  • Power Factor
  • Flicker Percent
  • Driver Surge Protection
  • 120-277Vac
  • 50/60Hz
  • 0-10V
  • ≥0.9
  • ≤50%
  • 2KV(L-N);4KV(L/N-G)
Frequently Asked Questions
How does the semi cut-off design help reduce glare and light spill?

The semi cut-off shape directs light more precisely where it is needed and blocks it from shining upward and outward into unwanted areas. This reduces glare for drivers and pedestrians and minimizes light spilling beyond the target surface. As a result, the wall pack gives you focused illumination along building exteriors and pathways without wasting light or causing nuisance lighting.

What advantages do the adjustable wattage settings offer for small to mid-scale exterior areas?

With adjustable wattage, you can choose between 40W, 50W, and 60W output on the same fixture. This means you can tailor light levels to match the size and needs of different outdoor areas. Lower wattages work well for entryways or walkways while higher wattages give stronger illumination for mid-scale zones like loading areas or service doors. You get flexibility without buying separate models.

How does the built-in photocell support automatic dusk-to-dawn operation?

The built-in photocell senses ambient light levels and turns the wall pack on at dusk and off at dawn automatically. This removes the need for manual switching or separate timers and ensures the light operates only when needed, which saves energy and reduces operating costs.

How does the sealed IP65 construction protect the fixture in wet or dusty locations?

The IP65 rating means the wall pack is fully protected against dust and can withstand water jets from any direction. This keeps dirt and moisture out of the housing and internal components, making it suitable for outdoor installations exposed to rain, windblown dust, and daily weather conditions. The sealed construction helps maintain performance and durability over time.

What role do high-efficiency 2835 LED chips play in performance and longevity?

High-efficiency 2835 LED chips produce bright light while using less power and generating less heat compared with older LED types. This improves overall performance, boosts energy efficiency, and helps the fixture run cooler. Running cooler extends the life of the LEDs and internal components, giving you longer, reliable service.

Is this semi cut-off wall pack compatible with 0–10V dimming controls?

No. This specific semi cut-off wall pack does not include 0–10V dimming capability. It is designed for on/off control, typically managed through the built-in photocell for automatic dusk-to-dawn operation.

.
