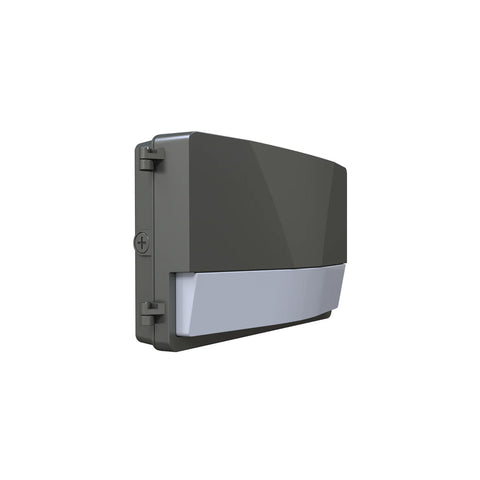

LED Semi Cut-off Wall Pack | Adjustable Watt 80W/100W/120W | 14400 Lumens | Adjustable CCT 3000K/4000K/5000K | 120V-277V

LED Semi Cut-off Wall Pack | Adjustable Watt 80W/100W/120W | 14400 Lumens | Adjustable CCT 3000K/4000K/5000K | 120V-277V

Built In Photocell - IP65 - UL & DLC Listed - 5 Year Warranty

  • Up to 120 lm/W
  • Adjustable Wattage
  • Adjustable CCT
  • 0-10V Dimmable
  • Built-in photocell
  • Bronze housing
  • Input Voltage 120-277VAC
  • UL & DLC Listed
  • 5-year warranty
Nothing But LED's Semi Cut-off Wall Pack is the newest, most innovative, and feature-rich product of 2022. Its unique and sleek design offers three wattages and CCT selection. The wall pack comes with energy-efficient LED technology and has a built-in photocell. Wall pack luminaires come with die-cast aluminum housings and a polycarbonate lens to stand up to many years of punishing environmental conditions. Up to 120 lm/W Adjustable Wattage A...
View Important Details
SKU: 1540304
Regular price $119.99 ea.
Sale price $119.99 ea. Regular price ea.
Call for Bulk Order
800-414-8919
Spec Logo Spec Logo Spec Logo
Product Details
  • Up to 120 lm/W
  • Adjustable Wattage
  • Adjustable CCT
  • 0-10V Dimmable
  • Built-in photocell
  • Bronze housing
  • Input Voltage 120-277VAC
  • UL & DLC Listed
  • 5-year warranty

Nothing But LED's Semi Cut-off Wall Pack is the newest, most innovative, and feature-rich product of 2022. Its unique and sleek design offers three wattages and CCT selection. The wall pack comes with energy-efficient LED technology and has a built-in photocell. Wall pack luminaires come with die-cast aluminum housings and a polycarbonate lens to stand up to many years of punishing environmental conditions.

  • Up to 120 lm/W
  • Adjustable Wattage
  • Adjustable CCT
  • 0-10V Dimmable
  • Built-in photocell
  • Bronze housing
  • Input Voltage 120-277VAC
  • UL & DLC Listed
  • 5-year warranty
General Performance
Description Value

  • Wattage Adjustable
  • Lumen
  • Lumen Efficacy
  • Color Temperature
  • CRI (Ra)
  • Beam Angle
  • Diffuser Type

  • 120W/100W/80W
  • 14400Lm
  • Up to 120LM/W
  • 3K/4K/5K
  • >80
  • 120°X100°X10° Degree
  • PC Lens
  • Operating Temperature
  • Operating Humidity
  • Storage Temperature
  • Storage Humidity
  • LED Brand
  • LED Type
  • LED QTY
  • -40 +40 ºC
  • 10% - 80%RH
  • - 30 + 70 ºC
  • 10% - 90%RH
  • Lightsource
  • 2835
  • 408
Electrical
Description Value
  • Input Voltage
  • Frequency
  • Dimming
  • Power Factor
  • Flicker Percent
  • Driver Surge Protection
  • 120-277Vac
  • 50/60Hz
  • 0-10V
  • ≥0.9
  • ≤50%
  • 2KV(L-N);4KV(L/N-G)
Frequently Asked Questions
How does the semi cut‑off optical design improve wall‑mounted light distribution?

 The semi cut‑off design shapes the light so it is directed more downward and outward where it is needed and not up into the sky or into nearby windows. This reduces glare for people passing by and keeps the light focused on the wall surface and the area below it. It gives better control of where the light goes and keeps unwanted light spill to a minimum.

When should the 80W, 100W, or 120W wattage setting be used for exterior spaces?

The different wattage settings let you match the brightness to the specific location. The 80W setting is sensible for smaller walkways, residential entrances, or areas that do not need very strong light. The 100W setting works well for medium entrances, pathways, and business fronts. The 120W setting should be used for larger walls, corridors, and areas where extra brightness helps with visibility or security. Adjusting the wattage helps you get the right level of light without using more energy than necessary.

How does the built‑in photocell simplify outdoor lighting control?

The built‑in photocell automatically turns the fixture on at dusk and off at dawn. You do not need separate timers or controls for daily operation. This makes outdoor lighting easier to manage and saves energy because the light only runs when it is dark.

What benefits do adjustable CCT options offer for security and perimeter lighting?

Having adjustable color temperature gives you choices for the look and feel of your lighting. A warmer tone like 3000K provides a more welcoming appearance near entrances. A neutral 4000K works well in general purpose areas. A cooler tone like 5000K boosts contrast and enhances visibility, which is useful for perimeter lighting, security walkways, and areas where clarity is important.

How does the bronze die‑cast housing hold up in long‑term outdoor installations?

The bronze die‑cast aluminum housing is built to resist corrosion and stand up to outdoor conditions. It is stronger than plastic and helps protect the internal components from impact, moisture, and rough weather. This durable construction contributes to long life and reliable performance in outdoor environments.

Is this semi cut‑off wall pack suitable for rebate‑qualified commercial projects?

Yes. This wall pack is both UL Listed and DLC Listed, which are common requirements for energy efficiency incentive and rebate programs offered by utilities. Because it meets recognized safety and efficiency standards, it is often eligible for rebates when used in commercial lighting upgrades and energy‑saving projects.

.
