LED Sign Tube | 10.5 Watt | 1181 Lumens | 6500K | 120-277V

42" - ETL Listed - 5 Year Warranty

  • Up to 125 lumens per watt
  • Operating temperature: -20°C to 45°C
  • High energy efficiency, long lifespan, 50,000-hour lifetime

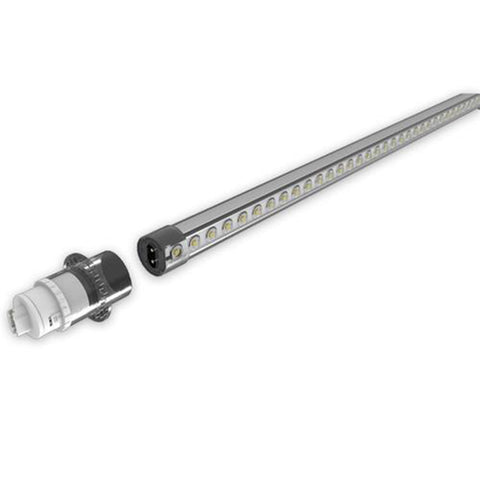

  • Lockable and rotatable R17d end cap ensures easy installation and consistent light distribution
  • Integral LED driver (non-isolated) eliminates the need for an external driver or ballast
  • ETL listed
  • High-quality and efficient Hongli 2835 chips
  • IP44 rated — touchproof and resistant to dust
  • Universal operation at 120–277VAC, 50–60Hz
  • Environment-friendly with no mercury
  • Type B ballast bypass design offers easy installation and operation
  • Direct replacement for fluorescent lamps
  • Reduced maintenance and replacement costs
  • Available in four different sizes
  • Option to create virtually any size by combining two parts of the product in one tube
  • Non-flicker optical lens covers eliminate hot spots and ensure consistent light distribution
  • Aluminum + PC lamp housing ensures less breakage and good heat dissipation
Our new and revolutionary Sign Tube offers significant energy efficiency and lifetime improvements over fluorescent lamps. Sign Tube lamps are installed by bypassing existing fluorescent ballasts and hard-wiring tombstone lamp holders directly to incoming AC power leads. Dual-ended bypass lamps eliminate the need to replace shunted tombstone lamp holders in existing fluorescent luminaires. An AC power cord is also provided for new installation...
View Important Details
SKU: 1520730
$27.99 ea.
$27.99 ea. ea.

Sold as a Pack 25
for $699.75

Call for Bulk Order
800-414-8919
Spec Logo Spec Logo Spec Logo
Product Details
  • Up to 125 lumens per watt
  • Operating temperature: -20°C to 45°C
  • High energy efficiency, long lifespan, 50,000-hour lifetime
  • Lockable and rotatable R17d end cap ensures easy installation and consistent light distribution
  • Integral LED driver (non-isolated) eliminates the need for an external driver or ballast
  • ETL listed
  • High-quality and efficient Hongli 2835 chips
  • IP44 rated — touchproof and resistant to dust
  • Universal operation at 120–277VAC, 50–60Hz
  • Environment-friendly with no mercury
  • Type B ballast bypass design offers easy installation and operation
  • Direct replacement for fluorescent lamps
  • Reduced maintenance and replacement costs
  • Available in four different sizes

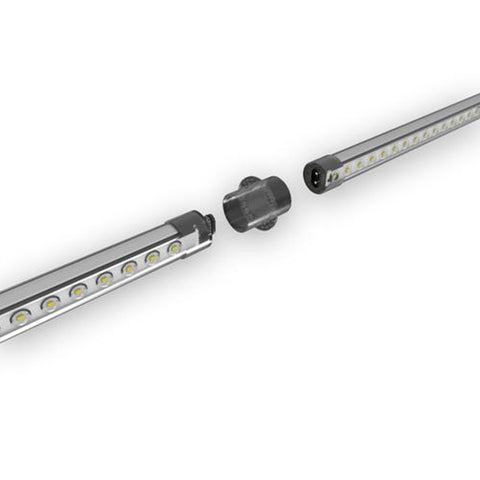

  • Option to create virtually any size by combining two parts of the product in one tube
  • Non-flicker optical lens covers eliminate hot spots and ensure consistent light distribution
  • Aluminum + PC lamp housing ensures less breakage and good heat dissipation

Our new and revolutionary Sign Tube offers significant energy efficiency and lifetime improvements over fluorescent lamps. Sign Tube lamps are installed by bypassing existing fluorescent ballasts and hard-wiring tombstone lamp holders directly to incoming AC power leads. Dual-ended bypass lamps eliminate the need to replace shunted tombstone lamp holders in existing fluorescent luminaires. An AC power cord is also provided for new installations.

  • Input Voltage 120-277VAC
  • 50,000 hr lifespan
  • Type B/Double Ended Power
  • Integral LED Driver
  • IP44 Rated
  • 30 LED Qty
  • Environment Friendly
  • Non-flicker
  • Beam Angle 180°
  • ETL Listed
  • 5 Years Warranty
Spec Sheet and Reports
General Performance
Description Value

  • Watt
  • Color Temperature Adj.
  • Lumens
  • Lumen Efficacy
  • CRI (Ra)
  • Diffuser Type
  • Beam Angle

  • 10.5W
  • 6500K
  • Up to 1181LM
  • Up to 112LM/W
  • >80
  • Clear
  • 180°
  • DLC Type
  • Power Ends
  • Size
  • Lens
  • Type B
  • 2 Power Ends
  • 42”
  • Clear Cover
Electrical
Description Value
  • Input Voltage
  • PF
  • 120-277VAC 50/60Hz
  • ≥0.9
Frequently Asked Questions
How do I ensure the LED Sign Tube is installed correctly?

For a smooth installation, simply bypass the existing fluorescent ballasts and wire the lamp holders directly to the AC power. The tube comes with an AC power cord, making it easier for both new and retrofit installations.

Can I use this LED Sign Tube in a damp or outdoor area?

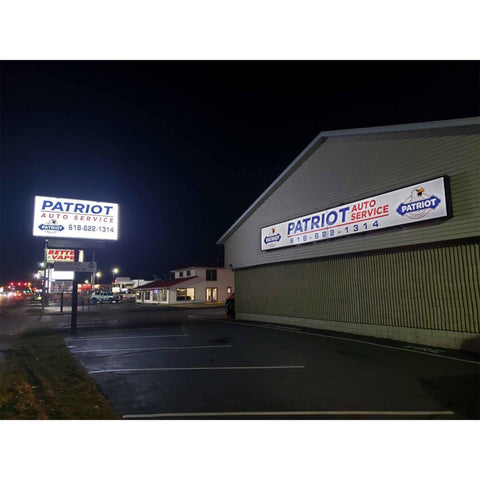

Yes! The IP44 rating means this LED Sign Tube is protected from dust and splashing water, making it perfect for outdoor signage or covered outdoor installations like lightboxes and displays.

What kind of maintenance is required for this LED Sign Tube?

Once installed, the 10.5W LED Sign Tube requires minimal maintenance. With a 50,000-hour lifespan, you can enjoy years of reliable lighting without frequent replacements or repairs.

What is the wattage and brightness of this LED Sign Tube?

This 9W LED Sign Tube delivers up to 1012 lumens of bright, clear light, providing excellent visibility while remaining energy-efficient.

How energy-efficient is the LED Sign Tube?

The LED Sign Tube offers an energy-efficient performance with a lumen efficacy of up to 112 lumens per watt, providing 1181 lumens of light while using only 10.5 watts of power, making it an environmentally friendly and cost-effective lighting solution.

.
