LED Sign Tube | 21 Watt | 2362 Lumens | 6500K | 120V-277V | 42" | Clear | Double Sided | IP44 | ETL Listed | 5 Year Warranty - Nothing But LEDs

LED Sign Tube | 21 Watt | 2362 Lumens | 6500K | 120V-277V | 42" | Clear | Double Sided | IP44 | ETL Listed | 5 Year Warranty

42" - ETL Listed - 5 Year Warranty

  • Input Voltage 120-277VAC
  • 50,000 hr lifespan
  • Type B/Double Ended Power
  • Integral LED Driver
  • IP44 Rated
  • 12 LED Qty
  • Environment Friendly
  • Non-flicker
  • Beam Angle 180°
  • ETL Listed
  • 5 Years Warranty

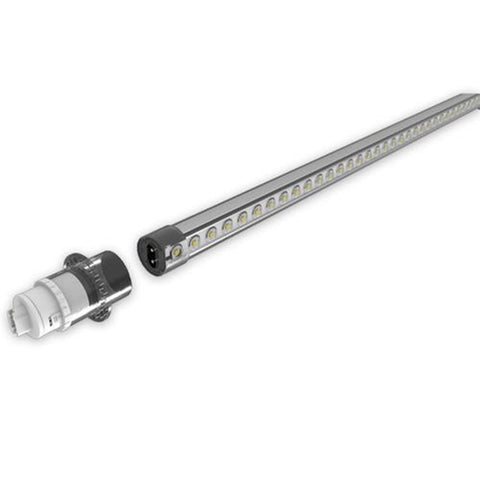

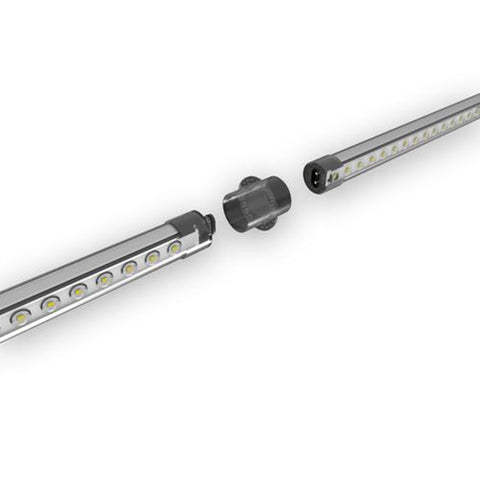

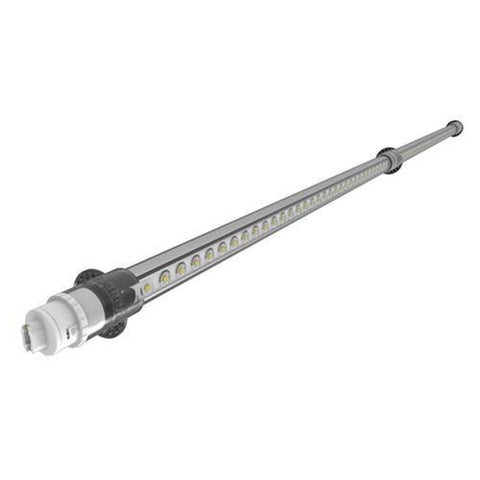

Our new and revolutionary Sign Tube offers significant energy efficiency and lifetime improvements over fluorescent lamps. Sign Tube lamps are installed by bypassing existing fluorescent ballasts and hard-wiring tombstone lamp holders directly to incoming AC power leads. Dual-ended bypass lamps eliminate the need to replace shunted tombstone lamp holders in existing fluorescent luminaires. An AC power cord is also provided for new installation...
View Important Details
SKU: 1520734
$32.99 ea.
$32.99 ea. ea.

Sold as a Pack 25
for $824.75

Call for Bulk Order
800-414-8919
Spec Logo Spec Logo Spec Logo
Product Details
  • Input Voltage 120-277VAC
  • 50,000 hr lifespan
  • Type B/Double Ended Power
  • Integral LED Driver
  • IP44 Rated
  • 12 LED Qty
  • Environment Friendly
  • Non-flicker
  • Beam Angle 180°
  • ETL Listed
  • 5 Years Warranty

Our new and revolutionary Sign Tube offers significant energy efficiency and lifetime improvements over fluorescent lamps. Sign Tube lamps are installed by bypassing existing fluorescent ballasts and hard-wiring tombstone lamp holders directly to incoming AC power leads. Dual-ended bypass lamps eliminate the need to replace shunted tombstone lamp holders in existing fluorescent luminaires. An AC power cord is also provided for new installations.

  • Input Voltage 120-277VAC
  • 50,000 hr lifespan
  • Type B/Double Ended Power
  • Integral LED Driver
  • IP44 Rated
  • 12 LED Qty
  • Environment Friendly
  • Non-flicker
  • Beam Angle 180°
  • ETL Listed
  • 5 Years Warranty
Spec Sheet and Reports
General Performance
Description Value

  • Watt
  • Color Temperature Adj.
  • Lumens
  • Lumen Efficacy
  • CRI (Ra)
  • Diffuser Type
  • Beam Angle

  • 21W
  • 6500K
  • Up to 2362LM
  • Up to 112LM/W
  • >80
  • Clear
  • 360°
  • DLC Type
  • Power Ends
  • Size
  • Lens
  • Type B
  • 2 Power Ends
  • 42”
  • Clear Cover
Electrical
Description Value
  • Input Voltage
  • PF
  • 120-277VAC 50/60Hz
  • ≥0.9
Frequently Asked Questions
How do I install the LED Sign Tube?

It’s super easy! Just bypass the old fluorescent ballasts and hard-wire the lamp holders directly to the AC power. You won’t need to do any complicated rewiring!

Do I need to replace the old lamp holders?

No, thanks to the dual-ended bypass feature, you won’t need to replace your existing tombstone lamp holders. It saves you time and keeps things simple.

Does the LED Sign Tube come with everything I need for installation?

Yes! The package includes an AC power cord, so you can start installing right away—whether it’s a new setup or a retrofit.

Can I use this LED Sign Tube to upgrade old fluorescent fixtures?

Yes, it’s designed for easy retrofitting, so you can replace your old fluorescent tubes with energy-efficient LED lighting without having to change the entire fixture.

Are these LED Sign Tubes suitable for commercial use?

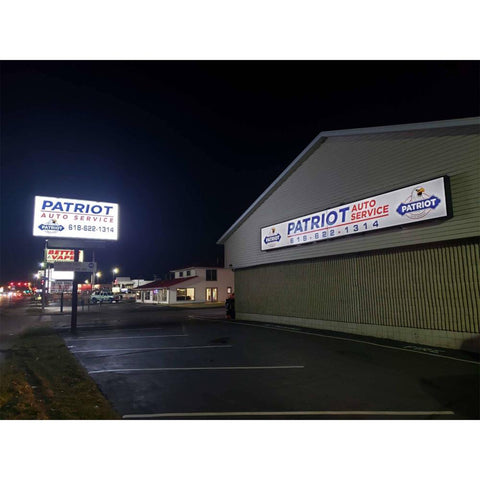

Absolutely! These LED tubes are ideal for business signage, lightboxes, and any commercial space that needs bright, reliable, and energy-efficient lighting.

.
