LED Sign Tube | 6 Watt | 675 Lumens | 6500K | 120V-277V | 12" | Clear | Double Sided | IP44 | ETL Listed | 5 Year Warranty - Nothing But LEDs

LED Sign Tube | 6 Watt | 675 Lumens | 6500K | 120-277V

12" - ETL Listed - 5 Year Warranty

  • Input Voltage 120-277VAC
  • 50,000 hr lifespan
  • Type B/Double Ended Power
  • Integral LED Driver
  • IP44 Rated
  • 18 LED Qty
  • Environment Friendly
  • Non-flicker
  • Beam Angle 360°
  • ETL Listed
  • 5 Years Warranty
Nothing But LEDs' LED Sign Tube is a retrofit solution that changes the traditional fluorescent sign lighting with better energy efficiency and performance. This Type B ballast bypass system eliminates the need for external drivers and delivers up to 125 lumens per watt and a 50,000-hour lifespan. Input Voltage 120-277VAC 50,000 hr lifespan Type B/Double Ended Power Integral LED Driver IP44 Rated 18 LED Qty Environment Friendly Non-flicker Be...
View Important Details
SKU: 1520731
$24.99 ea.
$24.99 ea. ea.

Sold as a Pack 25
for $624.75

Call for Bulk Order
800-414-8919
Spec Logo Spec Logo Spec Logo
Product Details
  • Input Voltage 120-277VAC
  • 50,000 hr lifespan
  • Type B/Double Ended Power
  • Integral LED Driver
  • IP44 Rated
  • 18 LED Qty
  • Environment Friendly
  • Non-flicker
  • Beam Angle 360°
  • ETL Listed
  • 5 Years Warranty

Nothing But LEDs' LED Sign Tube is a retrofit solution that changes the traditional fluorescent sign lighting with better energy efficiency and performance. This Type B ballast bypass system eliminates the need for external drivers and delivers up to 125 lumens per watt and a 50,000-hour lifespan.

  • Input Voltage 120-277VAC
  • 50,000 hr lifespan
  • Type B/Double Ended Power
  • Integral LED Driver
  • IP44 Rated
  • 18 LED Qty
  • Environment Friendly
  • Non-flicker
  • Beam Angle 360°
  • ETL Listed
  • 5 Years Warranty
Spec Sheet and Reports
General Performance
Description Value

  • Watt
  • Color Temperature Adj.
  • Lumens
  • Lumen Efficacy
  • CRI (Ra)
  • Diffuser Type
  • Beam Angle

  • 6W
  • 6500K
  • Up to 675LM
  • Up to 112LM/W
  • >80
  • Clear
  • 360°
  • DLC Type
  • Power Ends
  • Size
  • Lens
  • Type B
  • 2 Power Ends
  • 12”
  • Clear Cover
Electrical
Description Value
  • Input Voltage
  • PF
  • 120-277VAC 50/60Hz
  • ≥0.9
Frequently Asked Questions
How do I replace my old fluorescent sign light with this LED Sign Tube?

Replacing your old fluorescent sign light is straightforward! Simply bypass the ballast, and connect the tube directly to your power leads. This Type B ballast bypass system means you don’t need an external driver or ballast—just replace the old tube, and you're good to go.

What makes this LED Sign Tube energy-efficient?

The 6W LED Sign Tube produces 675 lumens, offering excellent brightness while using very little energy. With an efficiency of up to 112 lumens per watt, you’re getting bright light while saving on electricity costs compared to traditional fluorescent lights.

Can I install this LED Sign Tube outdoors?

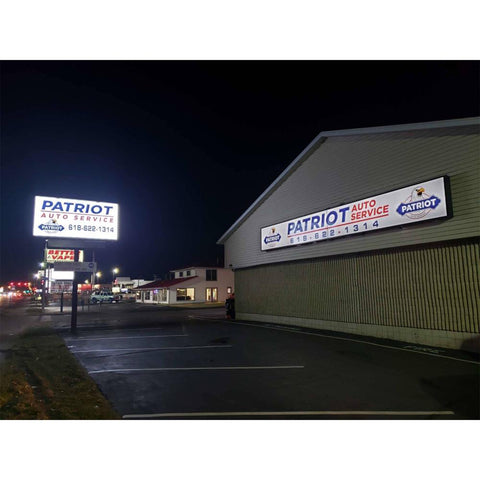

Yes! This LED Sign Tube is IP44 rated, meaning it is dustproof and resistant to water splashes. It’s perfect for use in covered outdoor settings like illuminated signage, lightboxes, and displays in public spaces.

What are the benefits of the 50,000-hour lifespan?

With a 50,000-hour lifespan, this LED Sign Tube lasts much longer than traditional fluorescent lighting. You’ll spend less time replacing tubes, saving money on maintenance and replacement costs in the long run.

How does this LED Sign Tube compare to traditional fluorescent tubes?

This LED Sign Tube offers better energy efficiency, longer life, and higher brightness. The Type B ballast bypass design makes it easy to retrofit your existing fluorescent fixtures without the need for a full overhaul.

.
