LED Sign Tube | 7.5 Watt | 844 Lumens | 6500K | 120V-277V | 30" | Clear | Single Sided | IP44| ETL Listed | 5 Year Warranty - Nothing But LEDs

LED Sign Tube | 7.5 Watt | 844 Lumens | 6500K | 120-277V

30" - ETL Listed - 5 Year Warranty

  • Up to 125 lumens per watt
  • Operating temperature: -20°C to 45°C
  • High energy efficiency, long lifespan, 50,000-hour lifetime

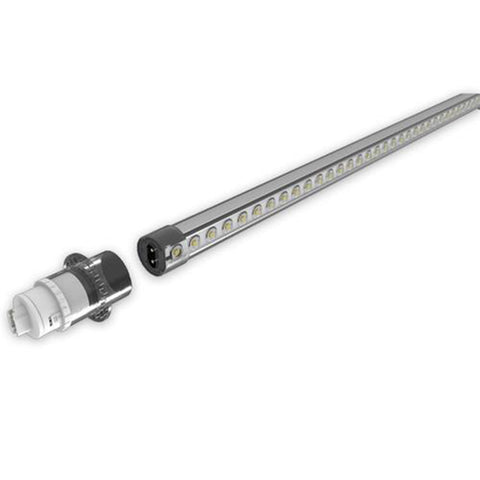

  • Lockable and rotatable R17d end cap ensures easy installation and consistent light distribution
  • Integral LED driver (non-isolated) eliminates the need for an external driver or ballast
  • ETL listed
  • High-quality and efficient Hongli 2835 chips
  • IP44 rated — touchproof and resistant to dust
  • Universal operation at 120–277VAC, 50–60Hz
  • Environment-friendly with no mercury
  • Type B ballast bypass design offers easy installation and operation
  • Direct replacement for fluorescent lamps
  • Reduced maintenance and replacement costs
  • Available in four different sizes

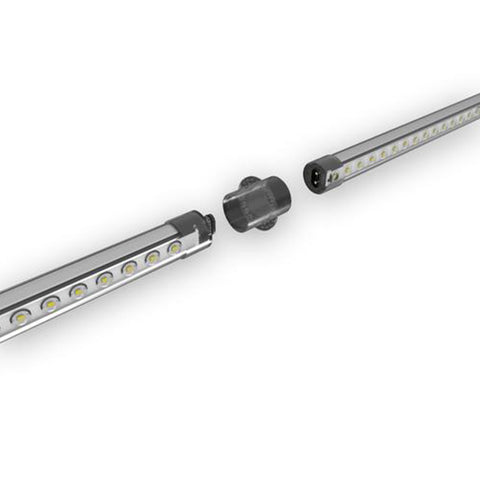

  • Option to create virtually any size by combining two parts of the product in one tube
  • Non-flicker optical lens covers eliminate hot spots and ensure consistent light distribution
  • Aluminum + PC lamp housing ensures less breakage and good heat dissipation
Our new and revolutionary Sign Tube offers significant energy efficiency and lifetime improvements over fluorescent lamps. Sign Tube lamps are installed by bypassing existing fluorescent ballasts and hard-wiring tombstone lamp holders directly to incoming AC power leads. Dual-ended bypass lamps eliminate the need to replace shunted tombstone lamp holders in existing fluorescent luminaires. An AC power cord is also provided for new installation...
View Important Details
SKU: 1520729
$24.99 ea.
$24.99 ea. ea.

Sold as a Pack 25
for $624.75

Call for Bulk Order
800-414-8919
Spec Logo Spec Logo Spec Logo
Product Details
  • Up to 125 lumens per watt
  • Operating temperature: -20°C to 45°C
  • High energy efficiency, long lifespan, 50,000-hour lifetime
  • Lockable and rotatable R17d end cap ensures easy installation and consistent light distribution
  • Integral LED driver (non-isolated) eliminates the need for an external driver or ballast
  • ETL listed
  • High-quality and efficient Hongli 2835 chips
  • IP44 rated — touchproof and resistant to dust
  • Universal operation at 120–277VAC, 50–60Hz
  • Environment-friendly with no mercury
  • Type B ballast bypass design offers easy installation and operation
  • Direct replacement for fluorescent lamps
  • Reduced maintenance and replacement costs
  • Available in four different sizes
  • Option to create virtually any size by combining two parts of the product in one tube
  • Non-flicker optical lens covers eliminate hot spots and ensure consistent light distribution
  • Aluminum + PC lamp housing ensures less breakage and good heat dissipation

Our new and revolutionary Sign Tube offers significant energy efficiency and lifetime improvements over fluorescent lamps. Sign Tube lamps are installed by bypassing existing fluorescent ballasts and hard-wiring tombstone lamp holders directly to incoming AC power leads. Dual-ended bypass lamps eliminate the need to replace shunted tombstone lamp holders in existing fluorescent luminaires. An AC power cord is also provided for new installations.

  • Input Voltage 120-277VAC
  • 50,000 hr lifespan
  • Type B/Double Ended Power
  • Integral LED Driver
  • IP44 Rated
  • 22 LED Qty
  • Environment Friendly
  • Non-flicker
  • Beam Angle 180°
  • ETL Listed
  • 5 Years Warranty
Spec Sheet and Reports
General Performance
Description Value

  • Watt
  • Color Temperature Adj.
  • Lumens
  • Lumen Efficacy
  • CRI (Ra)
  • Diffuser Type
  • Beam Angle

  • 7.5W
  • 6500K
  • Up to 844LM
  • Up to 112LM/W
  • >80
  • Clear
  • 180°
  • DLC Type
  • Power Ends
  • Size
  • Lens
  • Type B
  • 2 Power Ends
  • 30”
  • Clear Cover
Electrical
Description Value
  • Input Voltage
  • PF
  • 120-277VAC 50/60Hz
  • ≥0.9
Frequently Asked Questions
What makes this LED Sign Tube a good replacement for fluorescent tubes?

This LED Sign Tube offers an easy Type B ballast bypass design, meaning it directly replaces fluorescent tubes without needing to change the ballast or driver. It’s energy-efficient, has a long lifespan, and reduces your maintenance costs—perfect for retrofitting older lighting systems.

How durable is the LED Sign Tube for long-term use?

With a 50,000-hour lifespan, this LED Sign Tube is built for durability. Its aluminum and PC housing ensures excellent heat dissipation, while the IP44 rating protects it from dust and water splashes, making it suitable for indoor and covered outdoor use.

Does the LED Sign Tube come with everything I need for installation?

Yes, the LED Sign Tube includes an AC power cord for easy installation, whether you’re retrofitting an existing setup or installing it in a new system. It’s designed to be installed by bypassing fluorescent ballasts and wiring directly to AC power leads.

What are the key benefits of the 6500K color temperature?

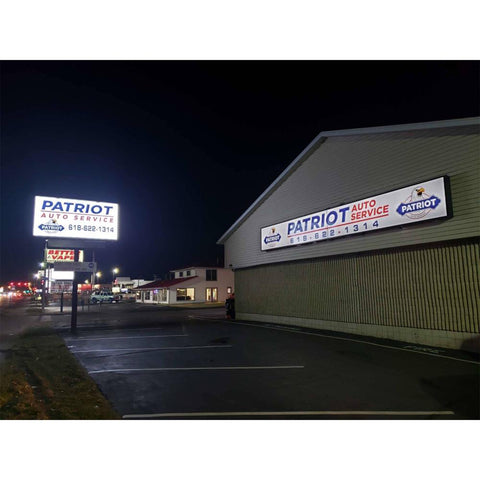

The 6500K daylight white color temperature provides bright, clear illumination that enhances visibility for signage, making it perfect for businesses looking to attract attention. It also improves readability, making signs and displays easier to see from a distance.

Can this LED Sign Tube be used in a wide range of settings?

Yes! The 30-inch single-sided tube is ideal for signage lighting, lightboxes, and other applications where clear, even lighting is needed. Its IP44 rating and universal voltage range (120V-277V) make it versatile enough for a variety of environments, including commercial and light industrial settings.

.
