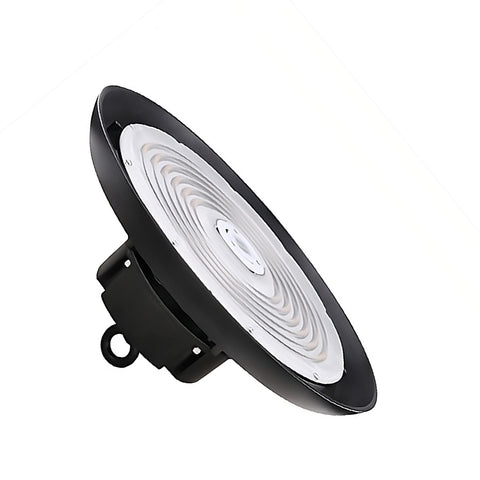

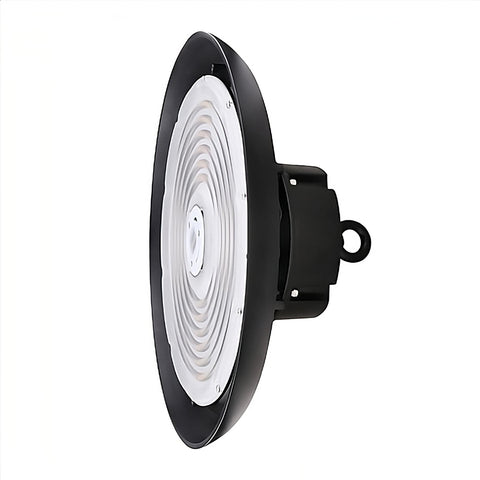

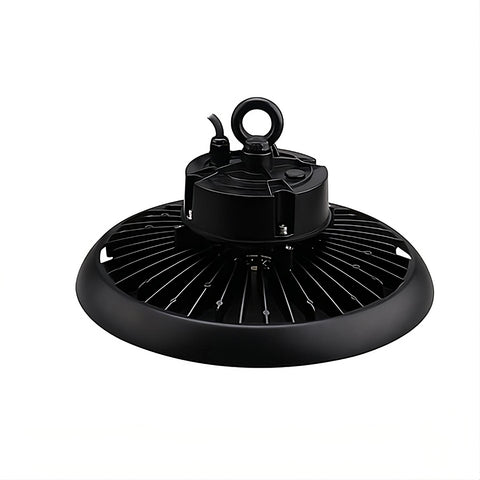

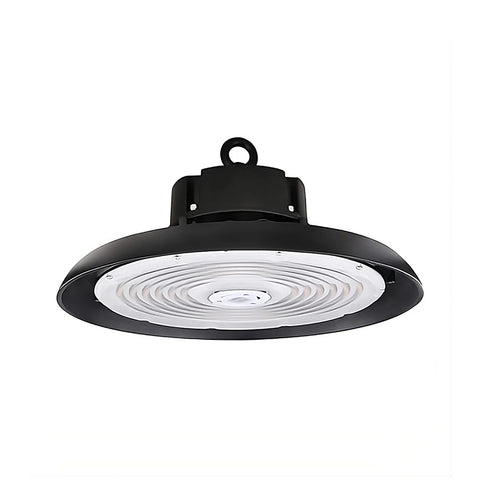

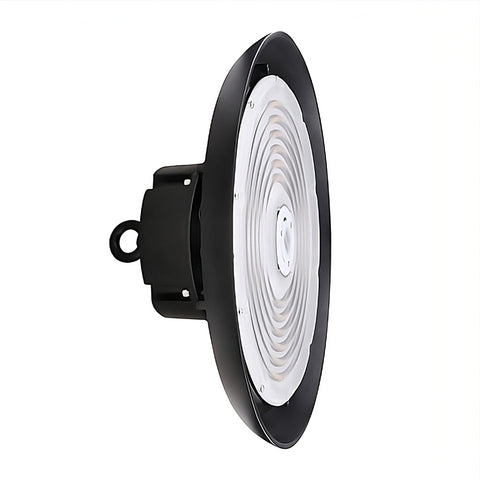

LED UFO High Bay | 240 Watt | 33747 Lumens | 5000K | 120-277Vac

LED UFO High Bay | 240 Watt | 33747 Lumens | 5000K | 120-277Vac

IP65 - UL & DLC Listed - 5 Year Warranty

  • Up to 138 lm/W
  • Operating temperature: -40°C to 50°C
  • 0-10V Dimming capability
  • Plug and play motion sensor
  • Several optional mounting options
  • Integral LED driver, eliminates the need for an external driver or ballast.
  • This product is IP65 rated, therefore, it is suited for both indoor and outdoor applications
  • Spotless soft light without shadow
  • Optional Emergency backup
  • Lumileds or Samsung chip with high CRI
  • Universal 120-277Vac
  • No UV or IR in the beam
  • Environment friendly with no mercury
  • Easy to install and operate, with instant and no humming
  • Energy saving with long lifespan
  • UL & DLC Listed
Nothing But LEDs UFO High Bay Light is one of the most feature-rich products of 2022. This product is designed to maximize light output with efficacy up to 138 lumens per watt. Swingline LED UFO High Bay is built to last with standard 4kv surge protection, 45° ambient temperature rating, and IP65 rating for elimination of dust, moisture, and airborne contaminants. The Swingline LED UFO High Bay can be integrated with feedback control systems. ...
View Important Details
SKU: 1540231
$84.99 ea.
$84.99 ea. ea.
Call for Bulk Order
800-414-8919
Spec Logo Spec Logo Spec Logo
Product Details
  • Up to 138 lm/W
  • Operating temperature: -40°C to 50°C
  • 0-10V Dimming capability
  • Plug and play motion sensor
  • Several optional mounting options
  • Integral LED driver, eliminates the need for an external driver or ballast.
  • This product is IP65 rated, therefore, it is suited for both indoor and outdoor applications
  • Spotless soft light without shadow
  • Optional Emergency backup
  • Lumileds or Samsung chip with high CRI
  • Universal 120-277Vac
  • No UV or IR in the beam
  • Environment friendly with no mercury
  • Easy to install and operate, with instant and no humming
  • Energy saving with long lifespan
  • UL & DLC Listed

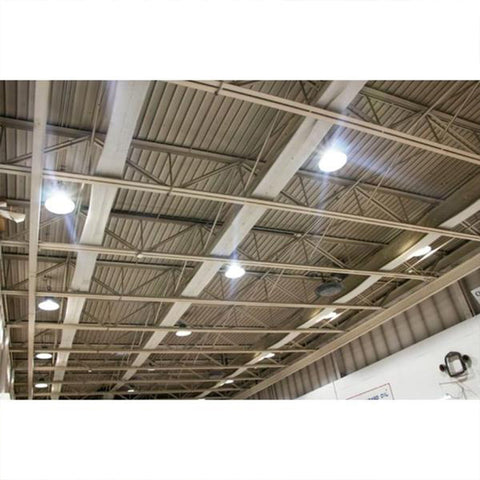

Nothing But LEDs UFO High Bay Light is one of the most feature-rich products of 2022. This product is designed to maximize light output with efficacy up to 138 lumens per watt. Swingline LED UFO High Bay is built to last with standard 4kv surge protection, 45° ambient temperature rating, and IP65 rating for elimination of dust, moisture, and airborne contaminants. The Swingline LED UFO High Bay can be integrated with feedback control systems. The unique easy-connect driver to optical assembly interface allows quick and easy maintenance for applications including warehousing, gymnasiums, manufacturing, and outdoor canopies.

  • Operating temperature: -40°C to 50°C
  • Up to 138 Lumens per Watt efficacy
  • 0-10V Dimming capability
  • Plug and play motion sensor
  • Several optional mounting options
  • Integral LED driver eliminates the need for an external driver or ballast.
  • Complies with UL safety regulations and is DLC listed
  • This product is IP65 rated; therefore, it is suited for both indoor and outdoor applications
  • Spotless soft light without shadow
  • Optional Emergency backup
  • Lumileds or Samsung chips with high CRI
  • Universal 120-277Vac / 480Vac optional
  • No UV or IR in the beam
  • Environment-friendly with no mercury
  • Easy to install and operate, with instant and no humming
  • Energy saving with long lifespan
Spec Sheet and Reports
General Performance
Description Value
  • Model #
  • Wattage
  • Lumens
  • Lumen Efficacy
  • Color Temperature
  • CRI (Ra)
  • Beam Angle
  • Diffuser Type
  • BLT-HB11-240WH2BT2A1-BH50
  • 240 Watt
  • 33747 Lm
  • Up to 140Lm/w
  • 5000K
  • >80
  • 90° Degree
  • PC Lens
  • Operating Temperature
  • Operating Humidity
  • Storage Temperature
  • Storage Humidity
  • LED Brand
  • LED Type
  • LED QTY
  • Housing
  • -30°C To 50°C (With Sensor)
  • 20%-90%RH
  • -40°C To 80°C
  • 10% - 95% RH
  • Lumileds
  • SMD 2835
  • 720 Pcs
  • Die-Cast Aluminium
Electrical
Description Value
  • Input Voltage
  • Frequency
  • Dimming
  • Power Factor
  • THD (Tolerance)
  • Driver Surge Protection
  • Flicker Percent
  • 120-277Vac
  • 50/60Hz
  • 0-10V
  • ≥0.9
  • ≤20%
  • L/N-PE: 6kV, L-N: 4kV
  • <5%
Frequently Asked Questions
What environments and temperature ranges is this UFO high bay designed to operate in?

This high bay light is built to withstand a wide range of conditions. It is rated for operation in temperatures from about -40 °C up to around 50 °C, so it can handle cold warehouses as well as warmer indoor spaces without performance issues. Its IP65 rating also protects it against dust and moisture, which makes it suitable for industrial, warehouse, gymnasium, manufacturing, and other demanding environments.

How does the plug-and-play motion sensor help reduce energy consumption?

 The plug-and-play motion sensor detects activity in the area and automatically adjusts the light output. When no movement is detected, the sensor can dim or turn the light off, and when activity returns, full brightness resumes. This saves energy by reducing unnecessary light output during idle periods, which in turn lowers electricity usage and operating costs.

What mounting options are available for different ceiling heights and layouts?

 This UFO high bay offers several optional mounting methods to fit different installation needs. You can use hook mounts, chains, or bracket mounts depending on how high the ceilings are and the layout of your facility. These options make it easier to position the fixture at the correct height and angle for even light distribution throughout the space.

Can this high bay be used for both indoor and outdoor applications?

Yes. Because the fixture is IP65 rated, it is protected against dust and water jets, which allows it to be used not only in typical indoor settings like warehouses and factories but also in outdoor or semi-outdoor spaces such as covered storage areas, loading docks, and canopies where it may be exposed to moisture or airborne contaminants.

How does the integral LED driver simplify installation and maintenance?

The integral LED driver is built into the fixture, so there’s no need for a separate external driver or ballast box. This simplifies installation because there are fewer components to wire and mount. It also reduces maintenance since there are fewer separate parts that might fail, and the integrated design helps keep the overall system more reliable over time.

What benefits do high-CRI Lumileds or Samsung chips provide for visibility and comfort?

Using high-CRI Lumileds or Samsung LED chips improves how colors appear and enhances overall visual clarity. In industrial and commercial environments, better color rendering helps workers see details more accurately, which can improve safety and productivity. High-CRI LEDs also tend to produce softer, more natural light that reduces eye strain and creates a more comfortable environment under long-term illumination.

.
