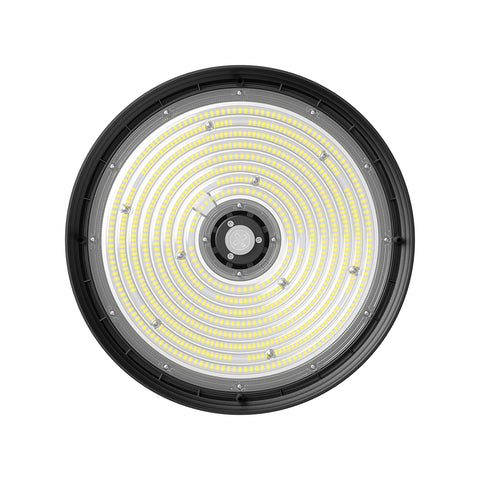

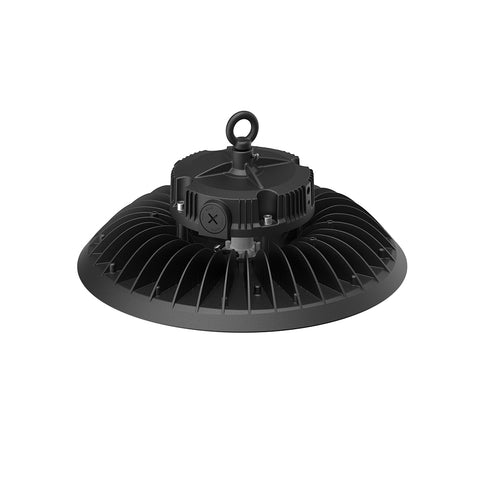

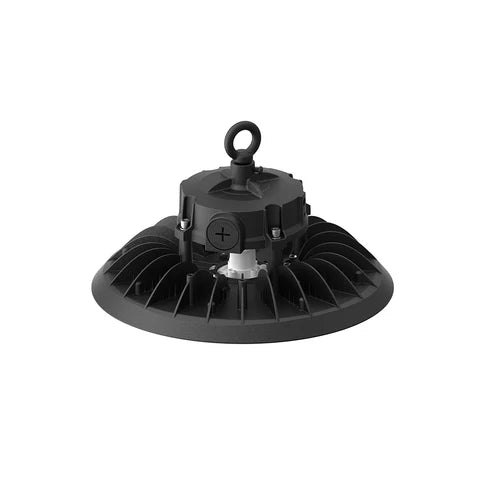

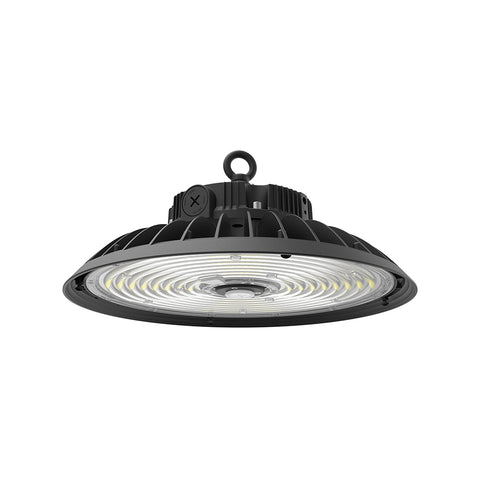

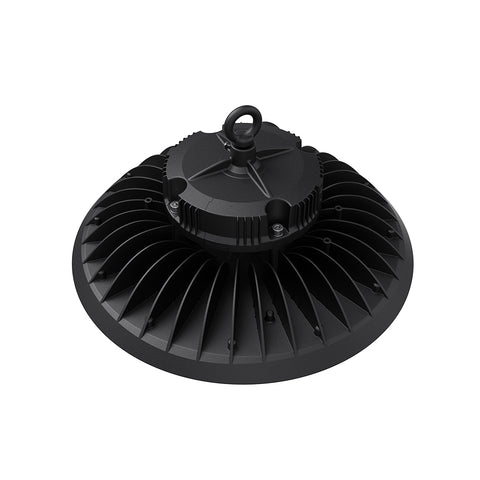

LED UFO High Bay | Adj Watt 100W/125W/150W | 24750 Lumens | Adj CCT 4000K/5000K/5700K | 120-277Vac

LED UFO High Bay | Adj Watt 100W/125W/150W | 24750 Lumens | Adj CCT 4000K/5000K/5700K | 120-277Vac

O Hook Included - IP65 - UL & DLC Listed - 5 Year Warranty

  • Up to 165 lm/W
  • Adjustable wattage
  • Adjustable CCT
  • 1-pin motion sensor + cap
  • 90º beam angle
  • Die-cast Aluminum
  • Black housing
  • O-hook included
  • IP65 rated
  • Input Voltage 120-277VAC
  • UL & DLC listed
  • 5-year warranty
Nothing But LEDs’ LED UFO High Bay is a feature-rich lighting solution engineered for maximum efficiency and durability. Delivering up to 165 lumens per watt, it offers substantial energy savings while providing bright, consistent illumination—making it a top choice for warehouses, gymnasiums, manufacturing facilities, and outdoor canopies. This high bay LED light features adjustable wattage and CCT, allowing you to fine-tune the output based ...
View Important Details
SKU: 1570029
Regular price $54.99 ea.
Sale price $54.99 ea. Regular price ea.
Call for Bulk Order
800-414-8919
Spec Logo Spec Logo Spec Logo
Product Details
  • Up to 165 lm/W
  • Adjustable wattage
  • Adjustable CCT
  • 1-pin motion sensor + cap
  • 90º beam angle
  • Die-cast Aluminum
  • Black housing
  • O-hook included
  • IP65 rated
  • Input Voltage 120-277VAC
  • UL & DLC listed
  • 5-year warranty

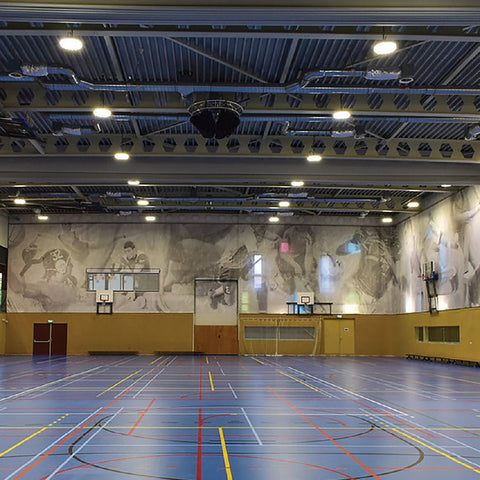

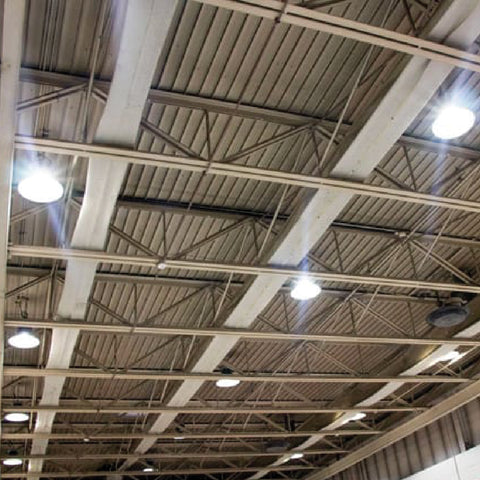

Nothing But LEDs’ LED UFO High Bay is a feature-rich lighting solution engineered for maximum efficiency and durability. Delivering up to 165 lumens per watt, it offers substantial energy savings while providing bright, consistent illumination—making it a top choice for warehouses, gymnasiums, manufacturing facilities, and outdoor canopies. This high bay LED light features adjustable wattage and CCT, allowing you to fine-tune the output based on specific project requirements. Built to perform in tough environments, it boasts an IP65 rating for dustproof and water-resistant protection. With a 90º beam angle, it ensures wide, uniform light coverage across large spaces. Designed for easy installation and maintenance, this LED high bay light includes a quick-connect driver-to optical assembly, a 1-pin motion sensor base for occupancy control, and a 2ft power cord for added convenience. The included O-hook allows for secure mounting, making it a reliable and efficient lighting solution for high-demand applications.

  • Up to 165 lm/W
  • Adjustable wattage
  • Adjustable CCT
  • 1-pin motion sensor + cap
  • 90º beam angle
  • Die-cast Aluminum
  • Black housing
  • O-hook included
  • IP65 rated
  • Input Voltage 120-277VAC
  • UL & DLC listed
  • 5-year warranty
    General Performance
    Description Value
    • Model #
    • Adjustable Wattage
    • Max Lumens
    • Lumen Efficacy
    • Color Temperature
    • CRI (Ra)
    • Light Spread
    • HB08-150L-CS-3CCT
    • 100W / 125W / 150W
    • 24750
    • Up to 165LM/W
    • 4000K / 5000K / 5700K
    • >80
    • 90°
    • Power Factor
    • Driver Surge Protection
    • Operating Temperature
    • LED Brand
    • LED Type
    • LED QTY
    • Construction
    • 0.95
    • L/N 6KV, L/N-P 6KV
    • -40oC - 45oC
    • Lumileds
    • SMD2835
    • 416 Pcs
    • ADC12 Aluminum Die Casting
    Electrical
    Description Value
    • Diffuser Typ
    • Input Voltage
    • Frequency
    • THD
    • Dimming
    • PC Diffuser
    • 120-277Vac
    • 50/60Hz
    • <20%
    • 0-10V
    Frequently Asked Questions
    How does adjustable wattage help optimize lighting levels for different ceiling heights?

    Adjustable wattage lets you choose how much power and light output the fixture delivers without swapping models. Lower wattage settings like 100 W work well for lower ceilings or smaller areas where less intensive lighting is acceptable, while higher settings like 150 W boost brightness for taller ceilings or larger spaces. This flexibility makes it easier to match illumination levels to ceiling height and the demands of the space, improving both visibility and energy efficiency.

    When should adjustable CCT be used to match task and ambient lighting needs?

     Adjustable CCT lets you select the right color temperature for different spaces and tasks. Use a 4000K setting for a softer, neutral white that is comfortable for general area lighting, 5000K for balanced work surfaces and activity zones, and 5700K for cooler, daylight-like tones that enhance visibility in high-contrast or task-intensive areas. Being able to change CCT on site means you can tailor light for work areas, aisles, and open floors without replacing fixtures.

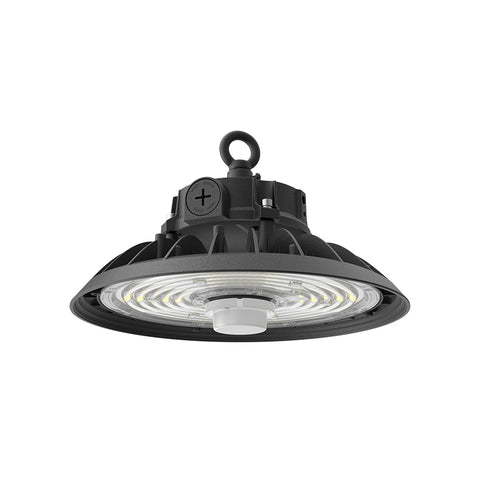

    What types of occupancy or motion controls work with the 1-pin sensor base?

    The 1-pin sensor base on this high bay allows you to install compatible occupancy or motion sensors that detect movement in the space. Standard PIR (passive infrared) or microwave motion sensors designed for industrial lighting can be used. These controls automatically dim or turn off the light when an area is unoccupied and return to full brightness when motion is detected, which helps save energy and extend lamp life.

    How does the 90° beam angle improve uniform coverage in wide open spaces?

    The 90° beam angle spreads light in a wide but controlled pattern that covers open areas without creating harsh hotspots or deep shadows. This makes it effective in large spaces such as warehouses, gymnasiums, and manufacturing floors where even illumination across aisles and activity zones improves safety and comfort. The beam angle helps deliver balanced light without over-focusing in one small spot.

    What installation advantages does the included O-hook provide?

    The included O-hook makes mounting the fixture fast and simple. It lets you hang the high bay from a chain or structural support without needing extra brackets or complicated hardware. This quick-connect method speeds up installation, especially in high-ceiling spaces where working time and effort are significant factors.

    How does the IP65 rating support use in dusty, damp, or semi-outdoor environments?

     An IP65 rating means the fixture is sealed against dust and protected from jets of water from any direction. This level of protection makes the high bay suitable for environments where dust, humidity, or moisture are common, such as warehouses, industrial facilities, garages, and semi-outdoor covered areas. It helps keep the internal components dry and clean, improving long-term reliability and performance.

    .
