LED UFO High Bay | Adj Watt 200W/240W/300W | 49500 Lumens | Adj CCT 4000K/5000K/5700K | 120-347Vac

LED UFO High Bay | Adj Watt 200W/240W/300W | 49500 Lumens | Adj CCT 4000K/5000K/5700K | 120-347Vac

Black Housing - UL & DLC Listed - 5 Year Warranty

  • Up to 165 lm/W
  • Adjustable wattage
  • Adjustable CCT
  • 1-pin motion sensor + cap
  • 90º beam angle
  • Die-cast Aluminum
  • Black housing
  • O-hook included
  • IP65 rated
  • Input Voltage 120-347V
  • UL & DLC listed
  • 5-year warranty

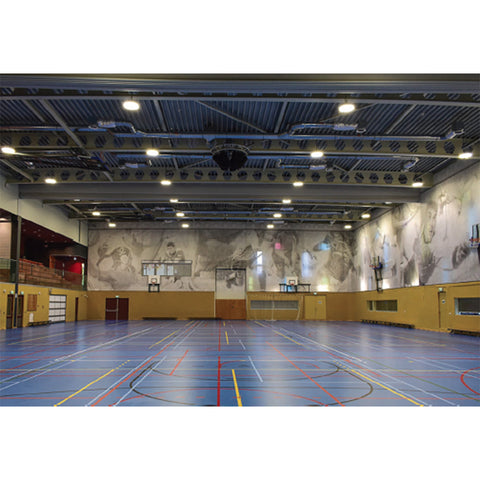

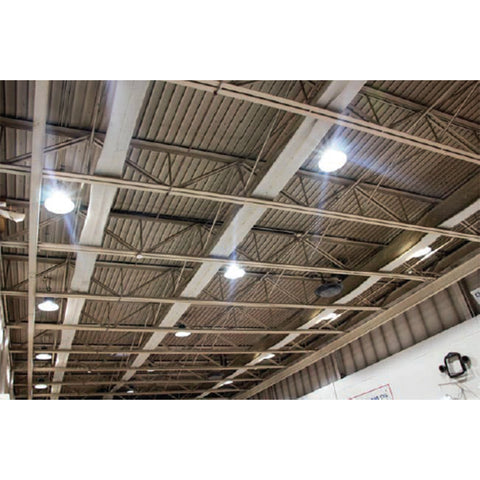

Nothing But LEDs’ LED UFO High Bay is a feature-rich lighting solution engineered for maximum efficiency and durability. Delivering up to 165 lumens per watt, it offers substantial energy savings while providing bright, consistent illumination—making it a top choice for warehouses, gymnasiums, manufacturing facilities, and outdoor canopies. This high bay LED light features adjustable wattage and CCT, allowing you to fine-tune the output base...
View Important Details
SKU: 1560832-1
$94.99 ea.
$94.99 ea. ea.
Call for Bulk Order
800-414-8919
Spec Logo Spec Logo Spec Logo
Product Details
  • Up to 165 lm/W
  • Adjustable wattage
  • Adjustable CCT
  • 1-pin motion sensor + cap
  • 90º beam angle
  • Die-cast Aluminum
  • Black housing
  • O-hook included
  • IP65 rated
  • Input Voltage 120-347V
  • UL & DLC listed
  • 5-year warranty

Nothing But LEDs’ LED UFO High Bay is a feature-rich lighting solution engineered for maximum efficiency and durability. Delivering up to 165 lumens per watt, it offers substantial energy savings while providing bright, consistent illumination—making it a top choice for warehouses, gymnasiums, manufacturing facilities, and outdoor canopies. This high bay LED light features adjustable wattage and CCT, allowing you to fine-tune the output based on specific project requirements. Built to perform in tough environments, it boasts an IP65 rating for dustproof and water-resistant protection. With a 90º beam angle, it ensures wide, uniform light coverage across large spaces. Designed for easy installation and maintenance, this LED high bay light includes a quick-connect driver-to optical assembly, a 1-pin motion sensor base for occupancy control, and a 2ft power cord for added convenience. The included O-hook allows for secure mounting, making it a reliable and efficient lighting solution for high-demand applications.

  • Up to 165 lm/W
  • Adjustable wattage
  • Adjustable CCT
  • 1-pin motion sensor + cap
  • 90º beam angle
  • Die-cast Aluminum
  • Black housing
  • O-hook included
  • IP65 rated
  • Input Voltage 120-347V
  • UL & DLC listed
  • 5-year warranty
Spec Sheet and Reports
General Performance
Description Value
  • Model #
  • Wattage Adjustable
  • Lumens
  • Lumen Efficacy
  • Color Temperature
  • CRI (Ra)
  • Beam Angle
  • BLT-HB08-300L-CS-3CCT
  • 200W / 240W / 300W
  • Up to 49500LM
  • Up to 165LM/W
  • 4000K / 5000K / 5700K
  • >80
  • 90° Degree
  • Power Factor
  • Driver Surge Protection
  • Operating Temperature
  • LED Brand
  • LED Type
  • LED QTY
  • Housing
  • Housing Color
  • 0.95
  • L/N 6KV, L/N-P 6KV
  • -40°C - 45°C
  • Lumileds
  • SMD2835
  • 864 Pcs
  • ADC12 Aluminum Die Casting
  • Black
Electrical
Description Value
  • Diffuser Type
  • Input Voltage
  • Frequency
  • THD
  • Dimming
  • PC Diffuser
  • 120-347Vac
  • 50/60Hz
  • <20%
  • 0-10V
Frequently Asked Questions
How does the 120–347 V input voltage support a wider range of commercial installations?

The 120–347 VAC input range means this UFO high bay can be used on both standard residential and typical commercial or industrial electrical systems without needing special transformers. Facilities with 208 V, 240 V, or even 277 V service can install and power this fixture easily, making it versatile for warehouses, manufacturing spaces, gymnasiums, and more.

How can adjustable wattage be used to fine-tune illumination in high-bay spaces?

With adjustable wattage settings of 200 W, 240 W, and 300 W, you can match the light level to the size of the space and its use case. Lower wattage reduces energy use when full brightness isn’t necessary, and higher wattage delivers more lumens for areas that need extra illumination. This lets you optimize lighting without buying multiple models.

What lighting scenarios benefit most from selectable CCT options?

Selectable color temperatures — 4000K, 5000K, and 5700K — let you tailor the light tone to different tasks and visual needs. Neutral white tones around 4000K work well for general area lighting, 5000K is solid for everyday warehouse or retail environments, and 5700K delivers crisp, daylight-like illumination for detailed work zones or spaces where contrast and clarity are important.

How does the 1-pin motion sensor base enable energy-saving occupancy control?

 The fixture includes a 1-pin motion sensor base so you can install a compatible occupancy sensor (sold separately) that detects movement. When no one is present, the sensor can dim or switch the light off, and when motion is detected the fixture returns to full brightness. This reduces energy use in less active periods.

What coverage advantages does the 90° beam angle provide in large open areas?

 A 90° beam angle spreads light broadly yet efficiently across open floor areas beneath high ceilings. This wide pattern helps deliver uniform illumination over aisles, work stations, and storage zones without creating harsh hot spots or dark patches, improving both visibility and safety in expansive spaces.

How does the IP65-rated, die-cast aluminum construction enhance durability in demanding environments?

The IP65 rating protects the fixture from dust and water jets, while the die-cast aluminum housing offers strength and helps dissipate heat. This rugged build ensures the light can withstand dusty, damp, or semi-outdoor conditions and keeps internal components cool, which supports long-term reliability in industrial, commercial, or workshop settings.

.
