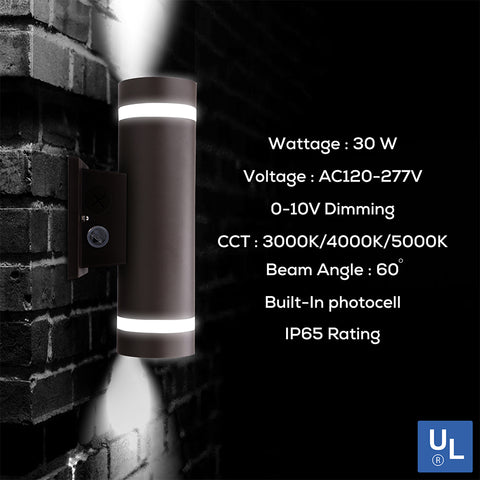

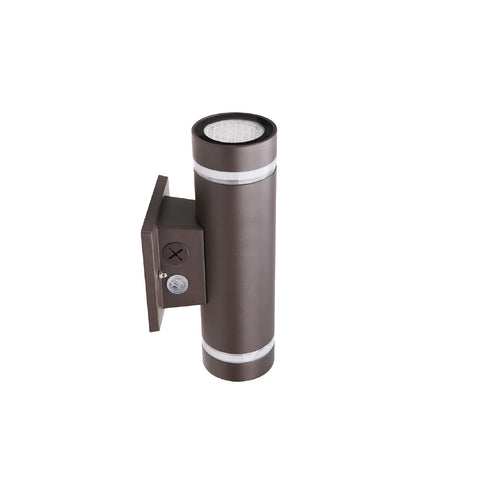

LED Up & Down Wall Sconce | 30 Watt | 3360 Lumens | Adj CCT 3000K/ 4000K/ 5000K | 120V-277V

LED Up & Down Wall Sconce | 30 Watt | 3360 Lumens | Adj CCT 3000K/ 4000K/ 5000K | 120V-277V

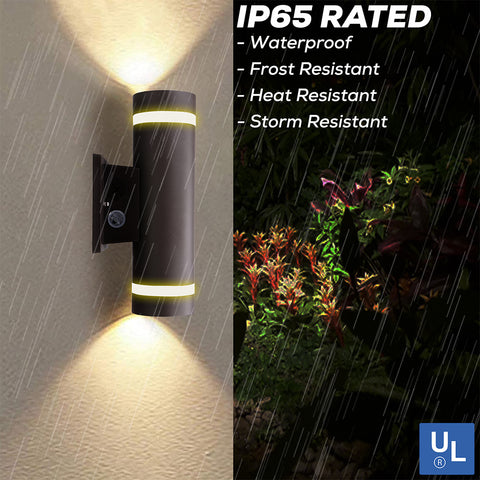

IP65 - UL Listed - 5 Year Warranty

  • Up to 110 lm/W
  • Adjustable CCT
  • Dimmable 0-10V
  • Beam Angle 60° Degree

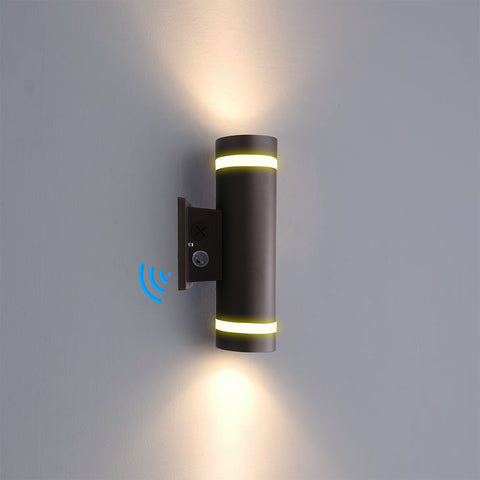

  • Built-In Photocell
  • Die-cast aluminum housing material
  • Operating Temperature -40° C To 45°C
  • Bronze Housing
  • Input Voltage 120-277Vac
  • UL Listed
  • 5-Year warranty
Nothing But LEDs “up and down wall sconces," is a type of outdoor lighting fixture commonly used for illuminating the exteriors of buildings, walls, pathways, and other outdoor spaces. Nothing But LEDs Up & Down Wall Sconce emits light both upwards and downwards, creating a dual-directional lighting effect. Our Up & Down wall sconce can add a decorative and functional element to various outdoor environments. Our up-and-down wall sconce...
View Important Details
SKU: 1560691
$54.99 ea.
$54.99 ea. ea.
Call for Bulk Order
800-414-8919
Spec Logo Spec Logo Spec Logo
Product Details
  • Up to 110 lm/W
  • Adjustable CCT
  • Dimmable 0-10V
  • Beam Angle 60° Degree
  • Built-In Photocell
  • Die-cast aluminum housing material
  • Operating Temperature -40° C To 45°C
  • Bronze Housing
  • Input Voltage 120-277Vac
  • UL Listed
  • 5-Year warranty

Nothing But LEDs “up and down wall sconces," is a type of outdoor lighting fixture commonly used for illuminating the exteriors of buildings, walls, pathways, and other outdoor spaces. Nothing But LEDs Up & Down Wall Sconce emits light both upwards and downwards, creating a dual-directional lighting effect. Our Up & Down wall sconce can add a decorative and functional element to various outdoor environments. Our up-and-down wall sconce combines aesthetics, functionality, and energy efficiency to enhance the visual appeal, safety, and security of outdoor spaces. Our up-and-down wall sconces can be used in a variety of outdoor applications, including residential exteriors, commercial buildings, parks, pathways, and more.

  • Up to 110 Lumens per watt
  • CCT Adjustable 3000K / 4000K / 5000K
  • Dimmable 0-10V
  • Beam Angle 60° Degree
  • Built-In Photocell
  • Die-cast aluminum housing material
  • Operating Temperature -40° C To 45°C
  • Bronze Housing
  • Input Voltage 120-277Vac
  • UL Listed
  • 5-Year warranty

 Spec Sheet LM80 Report IES File

Spec Sheet and Reports
General Performance
Description Value
  • Wattage
  • Lumens
  • Lumen Efficacy
  • Color Temperature
  • CRI (Ra)
  • Beam Angle
  • Diffuser Type
  • 30 watts
  • Up to 3360 LM
  • Up to 110LM/W
  • 3000K / 4000K / 5000K
  • >80
  • 60° Degree
  • Glass+PC
  • Driver Surge protection
  • Operating Temperature
  • Storage Temperature
  • Operating Humidity
  • Storage Humidity
  • LED Brand
  • LED Type
  • LED QTY
  • Housing
  • LL-N: 6 KV, L&N-PE: 6 KV
  • -40°C To 45°C
  • -40°C To 80°C
  • 20% - 90% RH
  • 10% - 95% RH
  • Lumileds
  • SMD2835
  • 64*2 PCS
  • Die-cast aluminum
Electrical
Description Value
  • Input Voltage
  • Frequency
  • THD (Tolerance : +5%)
  • Dimming
  • Power Factor
  • Flicker Percent
  • Driver Brand
  • 120-277Vac
  • 50/60Hz
  • ≥20%
  • 0-10 Dimmable
  • ≥0.9
  • <30%
  • HB-FL19F035B
Frequently Asked Questions
How does the up & down lighting design enhance exterior walls and architectural features?

The up & down configuration sends light both above and below the fixture. The upward light highlights architectural lines and textures on a building, while the downward light illuminates walkways and the wall base. This creates balanced visual interest and makes exterior surfaces stand out while improving visibility around the installation area.

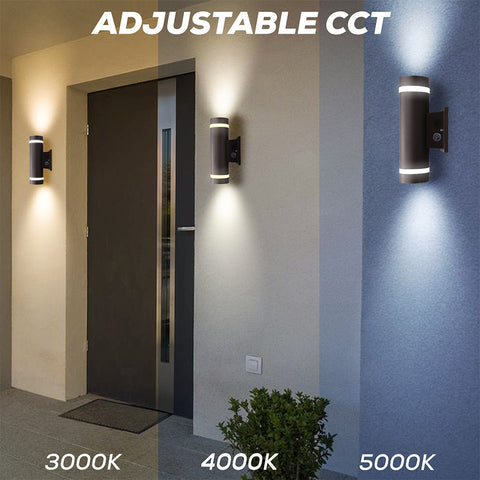

What are the benefits of selecting between 3000K, 4000K, and 5000K CCT options?

The adjustable color temperatures let you choose the right mood and clarity for your space. 3000K gives a warm, softer glow that feels welcoming near entrances. 4000K provides a neutral, balanced white ideal for general exterior lighting. 5000K delivers a cooler, daylight-like tone that helps improve visibility and contrast in high-activity or security-focused areas.

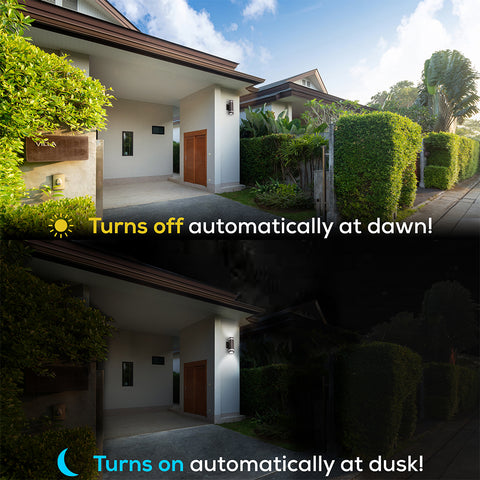

Does the built-in photocell enable automatic dusk-to-dawn operation?

Yes. The built-in photocell senses the ambient light level and automatically turns the fixture on at dusk and off at dawn. That means you don’t have to operate a separate timer or switch, and the light only runs when needed.

Is this LED wall sconce compatible with 0–10V dimming systems?

Yes. This wall sconce is 0–10V dimmable, so it can be connected to standard commercial dimming controls. That allows you to adjust brightness based on time of night, occupancy, or energy-saving strategies.

Can this fixture operate reliably in extreme outdoor temperatures from -40°C to 45°C?

Yes. The design and driver of this wall sconce allow it to run in a wide range of temperatures from -40°C up to 45°C, making it reliable in both very cold and hot outdoor conditions.

What outdoor or commercial applications are best suited for this 30W up & down wall sconce?

This up & down wall sconce is suitable for many exterior uses. It works well on residential building exteriors, commercial facades, entryways, pathways, parking area walls, hospitality spaces, retail storefronts, and any application where decorative yet functional lighting is needed. Its dual-directional illumination and adjustable CCT make it a versatile choice for both aesthetic and safety purposes.

.
