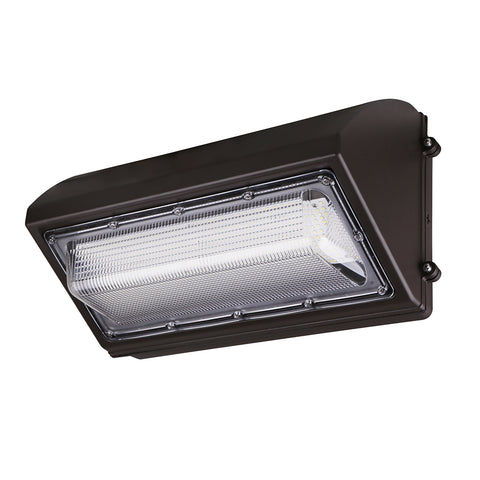

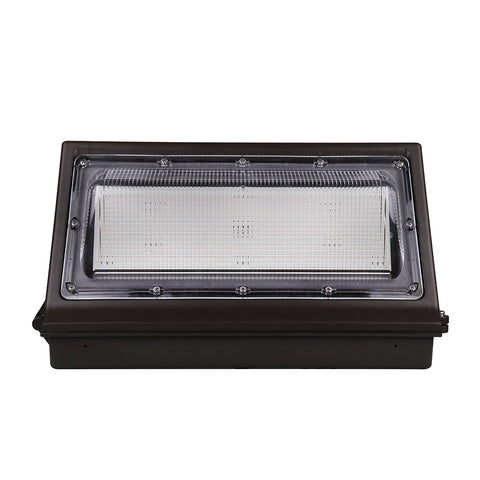

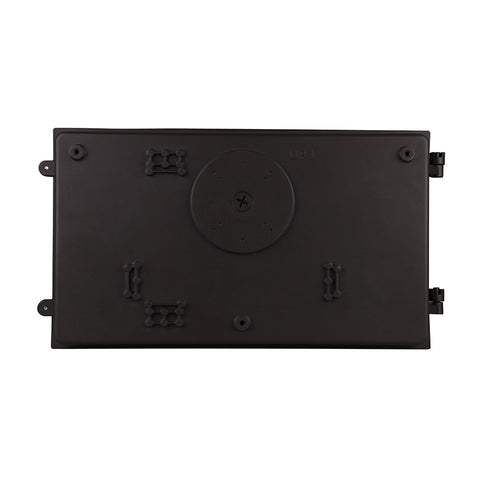

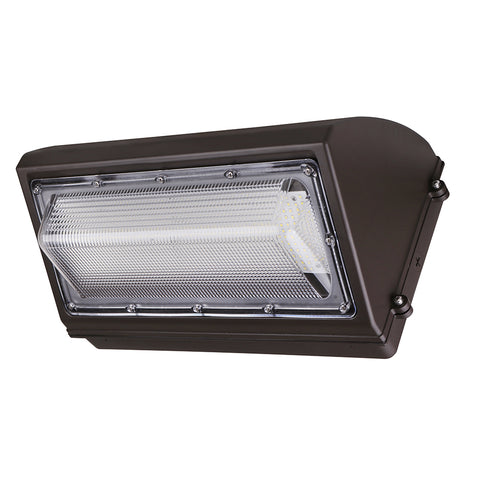

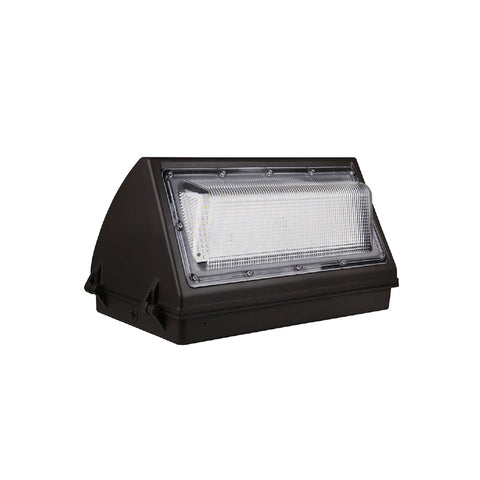

LED Wall Pack | Adj Watt 150W/180W/200W | 26000 Lumens | 5000K | 100V-277V

LED Wall Pack | Adj Watt 150W/180W/200W | 26000 Lumens | 5000K | 100V-277V

IP65 | UL & DLC Listed

  • Durable die-cast aluminum housing
  • Built-in photocell
  • Enclosure provides a water-tight seal making it suitable for outdoor application.
  • Integral LED driver (60W isolated driver and 120W non-isolated driver), eliminates the need for an external driver or ballast
  • Up to 145 lumens per watt
  • Three selectable wattages
  • Complies with UL safety regulations and is DLC5.1 listed
  • High Quality and Efficacy Lumiled 2835 chips
  • This product is IP65 rated, therefore, it is waterproof, sealed and gasketed wire
  • Universal operation at 120-277Vac 50-60Hz
  • Environment friendly with no mercury
  • Easy to install and operate, with instant & no humming
  • Energy saving, long lifespan
Nothing But LED's Wall Pack is the newest, most innovative, and feature-rich product of 2021. It offers three wattages selection with energy-efficient LED technology. LED wall pack comes with Built-in photocell. LED wall pack luminaires comes with ...
View Important Details
SKU: 1550457
$169.99 ea.
$169.99 ea. ea.
Call for Bulk Order
800-414-8919
Product Details
  • Durable die-cast aluminum housing
  • Built-in photocell
  • Enclosure provides a water-tight seal making it suitable for outdoor application.
  • Integral LED driver (60W isolated driver and 120W non-isolated driver), eliminates the need for an external driver or ballast
  • Up to 145 lumens per watt
  • Three selectable wattages
  • Complies with UL safety regulations and is DLC5.1 listed
  • High Quality and Efficacy Lumiled 2835 chips
  • This product is IP65 rated, therefore, it is waterproof, sealed and gasketed wire
  • Universal operation at 120-277Vac 50-60Hz
  • Environment friendly with no mercury
  • Easy to install and operate, with instant & no humming
  • Energy saving, long lifespan

Nothing But LED's Wall Pack is the newest, most innovative, and feature-rich product of 2021. It offers three wattages selection with energy-efficient LED technology. LED wall pack comes with Built-in photocell. LED wall pack luminaires comes with die cast aluminum housings and a polycarbonate lens to stand up for many years of punishing environmental conditions.

  • Durable die-cast aluminum housing
  • Built-in photocell
  • Enclosure provides a water-tight seal making it suitable for outdoor application.
  • Integral LED driver (60W isolated driver and 120W non-isolated driver), eliminates the need for an external driver or ballast
  • Up to 145 lumens per watt
  • Three selectable wattages
  • Complies with UL safety regulations and is DLC5.1 listed
  • High Quality and Efficacy Lumiled 2835 chips
  • This product is IP65 rated, therefore, it is waterproof, sealed and gasketed wire
  • Universal operation at 120-277Vac 50-60Hz
  • Environment friendly with no mercury
  • Easy to install and operate, with instant & no humming
  • Energy saving, long lifespan
Spec Sheet and Reports
General Performance
Description Value

  • Wattage Adjustable
  • Lumen
  • Lumen Efficacy
  • Color Temperature
  • CRI (Ra)
  • Beam Angle
  • Diffuser Type

  • 150W/180W/200W
  • 26000LM
  • Up to 145LM/W
  • 5000K
  • >80
  • H95°V101 Degree
  • PC Lens
Electrical
Description Value
  • Tolerance
  • Input Voltage
  • Frequency
  • PF
  • THD
  • Flicker Percent
  • Driver Model
  • ±15%
  • 120-277Vac
  • 50/60Hz
  • ≥0.9
  • ≤20%
  • <50%
  • WP-CNB-200U-2A0SCPO7-Z-PRO
Physical
Description Value
  • Driver Surge protection
  • Dimming
  • Operating Temperature
  • Operating Temperature
  • Storage Temperature
  • Operating Humidity
  • Storage Humidity
  • LED Brand
  • LED Type
  • LED Qty
  • L/N-PE: 6kV, L-N: 4kV
  • 0-10V Dimming Standard
  • Without Motion Sensor: -40°C TO 50°C;
  • With Motion Sensor: -25°C TO 50°C
  • -40°C TO 80°C
  • 20％ - 90％ RH
  • 10％ - 95％ RH
  • LUMILEDS
  • SMD 2835
  • 390 Pcs
