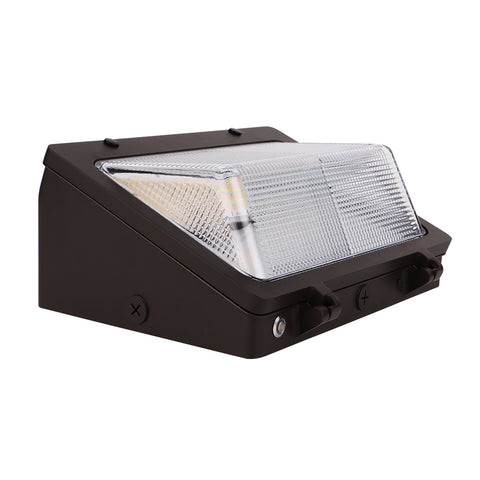

LED Wall Pack | Adj Watt 76W/105W/125W | 16250 Lumens | Adj CCT 3000K/4000K/5000K | 120-277Vac

LED Wall Pack | Adj Watt 76W/105W/125W | 16250 Lumens | Adj CCT 3000K/4000K/5000K | 120-277Vac

UL & DLC Listed - 5 Year Warranty

  • Up to 130 lm/W
  • Adjustable Wattage
  • Adjustable CCT
  • 0-10V Dimmable
  • IP65 Rated
  • Driver Surge Protection 4-6KV
  • Bronze Housing
  • Input Voltage: 120-277Vac
  • UL & DLC Listed
  • 5 Year warranty
Nothing But LED’ wall pack is the newest, most innovative and feature rich product of 2024. It offers 3 Adjustable wattages and 3 Adjustable CCT with energy-efficient LED technology. luminaires comes with die cast aluminum housing and glass lens to stand up for many years of punishing environmental conditions. Up to 130 Lumens per watt Wattage Adjustable 76W/105W/125W CCT Adjustable 3000K/4000K/5000K 0-10V Dimmable IP65 Rated Driver Surge Pro...
View Important Details
SKU: 1560868
$84.99 ea.
$84.99 ea. ea.
Call for Bulk Order
800-414-8919
Spec Logo Spec Logo Spec Logo
Product Details
  • Up to 130 lm/W
  • Adjustable Wattage
  • Adjustable CCT
  • 0-10V Dimmable
  • IP65 Rated
  • Driver Surge Protection 4-6KV
  • Bronze Housing
  • Input Voltage: 120-277Vac
  • UL & DLC Listed
  • 5 Year warranty

Nothing But LED’ wall pack is the newest, most innovative and feature rich product of 2024. It offers 3 Adjustable wattages and 3 Adjustable CCT with energy-efficient LED technology. luminaires comes with die cast aluminum housing and glass lens to stand up for many years of punishing environmental conditions.

  • Up to 130 Lumens per watt
  • Wattage Adjustable 76W/105W/125W
  • CCT Adjustable 3000K/4000K/5000K
  • 0-10V Dimmable
  • IP65 Rated
  • Driver Surge Protection 4-6KV
  • Bronze Housing
  • Input Voltage: 120-277Vac
  • UL & DLC Listed
  • 5 Year warranty
Spec Sheet and Reports
General Performance
Description Value
  • Wattage Adjustable
  • Lumens
  • Lumen Efficacy
  • Color Temperature
  • CRI (Ra)
  • Beam Angle (50%)
  • Diffuser
  • 76W / 105W / 125W
  • 16250Lm
  • Up to 130LM/W
  • 3000K / 4000K / 5000K
  • >70
  • 97.3° Degree
  • Glass
  • Driver Surge protection
  • Dimming
  • Operating Temperature
  • Storage Temperature
  • Operating Humidity
  • Storage Humidity
  • LED Brand
  • LED Type
  • LED Qty
  • Housing
  • Housing Color
  • 4-6KV
  • 0-10V Dimmable
  • -40°C TO 50°C
  • -40°C - 100°C
  • 10%RH-90%RH
  • -10°C - 65°C 10%RH-90%RH
  • Nationstar
  • SMD2835
  • 448 Pcs
  • Die-Cast Aluminum
  • Bronze
Electrical
Description Value
  • Input Voltage
  • Frequency
  • PF
  • THD
  • Driver Mode
  • 120-277Vac
  • 50/60Hz
  • ≥0.9
  • <10
  • AL-120NBS-130DAFO
Frequently Asked Questions
How does adjustable wattage help tailor light output for different wall-mount applications?

Adjustable wattage allows one wall pack to work across multiple projects. You can select a lower wattage for walkways, entrances, or areas close to the building where too much light is not needed, and increase the wattage for larger exterior walls, loading areas, or security zones. This flexibility reduces over-lighting, cuts energy use, and helps contractors standardize on one fixture instead of stocking multiple models.

Which environments are best suited for the 3000K, 4000K, and 5000K CCT options?

3000K is best for locations where a warm and welcoming appearance is preferred, such as building entrances, hospitality properties, and pedestrian areas. 4000K works well for general exterior lighting, providing a neutral white tone that balances comfort and visibility. 5000K is ideal for security-focused applications like parking areas, service alleys, and commercial perimeters where higher contrast and visibility are important.

How does the IP65 rating protect this wall pack in outdoor installations?

The IP65 rating means the fixture is sealed against dust and protected from water exposure such as rain, splashing, or washdown from multiple directions. This makes it suitable for outdoor use in environments where weather, dirt, and debris are common, helping maintain performance and reliability over time.

Is this LED wall pack compatible with 0–10V commercial dimming systems?

Yes, the fixture supports 0–10V dimming and can be integrated with standard commercial lighting control systems. This allows for brightness adjustment, energy savings during low-traffic hours, and compatibility with timers, photocells, and building management systems.

How does the die-cast aluminum housing improve long-term durability?

Die-cast aluminum provides a strong, rigid structure that resists corrosion, impact, and environmental wear. It also helps dissipate heat efficiently, which protects internal components and extends LED lifespan. This construction is well suited for long-term outdoor use in demanding commercial and industrial environments.

What types of projects qualify this UL and DLC listed wall pack for utility rebates?

Because the fixture is UL and DLC listed, it meets safety and energy efficiency standards required by many utility rebate programs. Projects such as commercial building retrofits, warehouse exterior lighting upgrades, parking structures, schools, and municipal facilities commonly qualify when replacing older, less efficient lighting systems.

.
