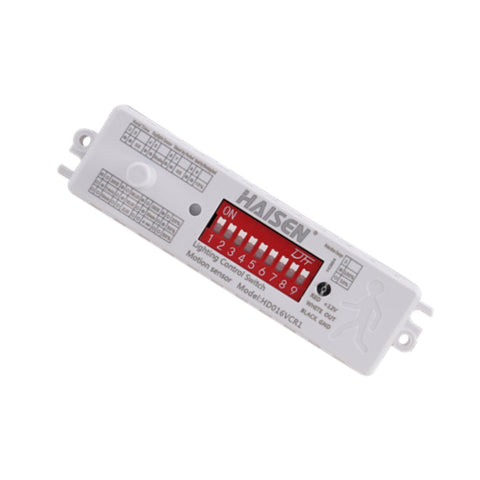

Motion Sensor For LED Linkable Strip Fixture

  • Operating voltage: 12VDC
  • Output: 0-10V dimming control
  • Low standby power consumption (<0.5W)
  • Adjustable detection area (50% / 100%)
  • Selectable hold time (5s / 30s / 1min / 10min)
  • Adjustable daylight threshold (10Lux / 30Lux / 50Lux / Disable)
  • Configurable standby period and dimming levels
  • Microwave frequency: 5.8GHz ±75MHz
  • Wide detection range: up to 6m (19.68ft) ceiling mounted
  • Operating temperature: -20°C to +60°C
  • Motion detection speed: 0.5–1.5m/s
  • IP20 rated
  • 5 years warranty
The Motion Sensor for LED Linkable Strip Fixture from Nothing But LEDs is an advanced microwave motion detection solution designed to enhance energy efficiency and intelligent lighting control. It provides adjustable detection areas, hold times, and daylight thresholds, allowing precise customization based on the environment. Compact and reliable, this sensor ensures optimal lighting performance for commercial and industrial spaces while maint...
View Important Details
SKU: 1520551
$35.99 ea.
$35.99 ea. ea.
Call for Bulk Order
800-414-8919
Spec Logo Spec Logo Spec Logo
Spec Sheet and Reports
Product Details
  • Operating voltage: 12VDC
  • Output: 0-10V dimming control
  • Low standby power consumption (<0.5W)
  • Adjustable detection area (50% / 100%)
  • Selectable hold time (5s / 30s / 1min / 10min)
  • Adjustable daylight threshold (10Lux / 30Lux / 50Lux / Disable)
  • Configurable standby period and dimming levels
  • Microwave frequency: 5.8GHz ±75MHz
  • Wide detection range: up to 6m (19.68ft) ceiling mounted
  • Operating temperature: -20°C to +60°C
  • Motion detection speed: 0.5–1.5m/s
  • IP20 rated
  • 5 years warranty

The Motion Sensor for LED Linkable Strip Fixture from Nothing But LEDs is an advanced microwave motion detection solution designed to enhance energy efficiency and intelligent lighting control. It provides adjustable detection areas, hold times, and daylight thresholds, allowing precise customization based on the environment. Compact and reliable, this sensor ensures optimal lighting performance for commercial and industrial spaces while maintaining low power consumption.

  • Operating voltage: 12VDC

  • Output: 0-10V dimming control

  • Low standby power consumption (<0.5W)

  • Adjustable detection area (50% / 100%)

  • Selectable hold time (5s / 30s / 1min / 10min)

  • Adjustable daylight threshold (10Lux / 30Lux / 50Lux / Disable)

  • Configurable standby period and dimming levels

  • Microwave frequency: 5.8GHz ±75MHz

  • Wide detection range: up to 6m (19.68ft) ceiling mounted

  • Operating temperature: -20°C to +60°C

  • Motion detection speed: 0.5–1.5m/s

  • IP20 rated

  • 5 years warranty

Spec Sheet and Reports
General Performance
Description Value
  • Operating voltage
  • Operating current
  • Output
  • Stand-by power
  • Detection area
  • Hold time
  • Daylight threshold
  • Stand-by period
  • Stand-by dimming level
  • Microwave frequency
  • Microwave power
  • Mounting height
  • Detection range
  • Operating temperature
  • Motion detection
  • IP rating
  • Warranty
  • 12VDC
  • ≤25mA
  • 0-10V
  • <0.5W
  • 50%/100%
  • 5s/30s/1min/10min
  • 10Lux/30Lux/50Lux/Disable
  • Os/30s/20min/+0
  • 10%/20%/30%/50%
  • 5.8GHz+75MHz
  • <0.3mW
  • 2.5-4m/8.2-13.12ft (ceiling mounted)
  • 04-6m/13.12-19.68ft (ceiling mounted)
  • -20°C~+60°C
  • 0.5~1.5m/s
  • IP20
  • 5 years
.
