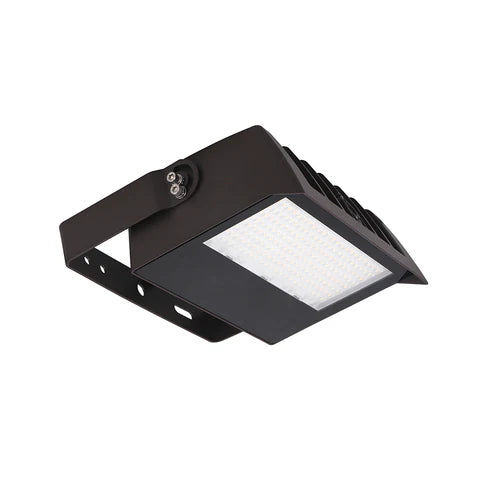

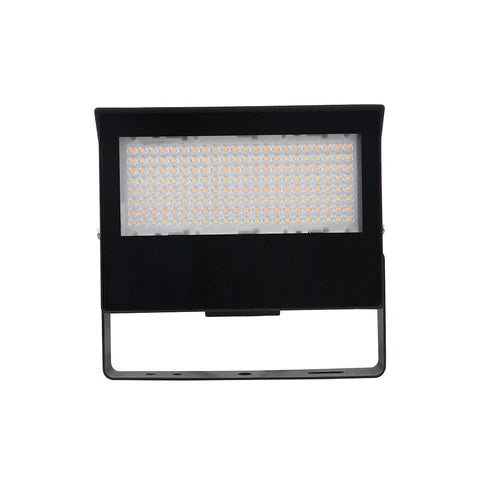

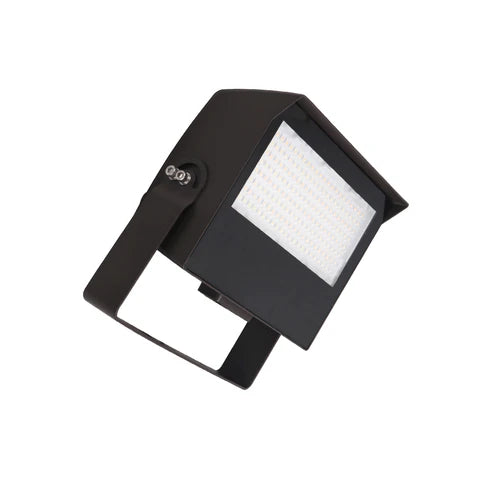

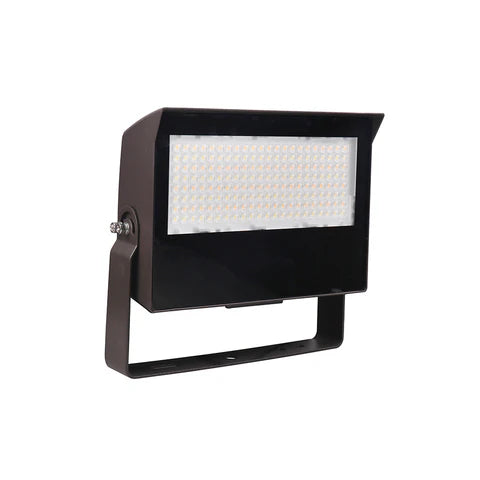

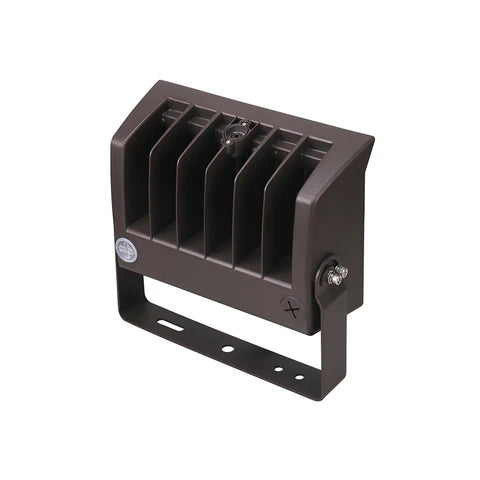

RGBW LED Architectural Flood Light | 75 Watt | 120-277V | Built in Bluetooth with Tuya App

RGBW LED Architectural Flood Light | 75 Watt | 120-277V | Built in Bluetooth with Tuya App

U-Bracket Included - IP65 - UL Listed - 5 years Warranty

  • RGBW Model
  • Built in Bluetooth with Tuya App
  • 35° beam angle
  • Bluetooth Dimming
  • Built-in 10KV surge protection
  • U-bracket included
  • Bronze housing
  • Input voltage 120–277V AC
  • UL Listed
  • 5 years Warranty
Nothing But LEDs’ Architectural Floodlight is a sleek and powerful lighting solution crafted to highlight architectural elements and landscapes with precise, efficient illumination. Available in two models—CCT adjustable and RGB—it provides versatile lighting options for a wide range of needs. The CCT version allows fine-tuned control over color temperature and wattage, while the RGB model delivers vibrant, customizable color effects via Bluet...
View Important Details
SKU: 1570072
$174.99 ea.
$174.99 ea. ea.
Call for Bulk Order
800-414-8919
Spec Logo Spec Logo Spec Logo
Spec Sheet and Reports
Product Details
  • RGBW Model
  • Built in Bluetooth with Tuya App
  • 35° beam angle
  • Bluetooth Dimming
  • Built-in 10KV surge protection
  • U-bracket included
  • Bronze housing
  • Input voltage 120–277V AC
  • UL Listed
  • 5 years Warranty

Nothing But LEDs’ Architectural Floodlight is a sleek and powerful lighting solution crafted to highlight architectural elements and landscapes with precise, efficient illumination. Available in two models—CCT adjustable and RGB—it provides versatile lighting options for a wide range of needs. The CCT version allows fine-tuned control over color temperature and wattage, while the RGB model delivers vibrant, customizable color effects via Bluetooth through the Tuya app. With a 35° beam angle and an IP65 rating, this architectural floodlight is built for both commercial and residential environments, offering durability, performance, and visual impact in any setting.

  • RGBW Model
  • Built in Bluetooth with Tuya App
  • 35° beam angle
  • Bluetooth Dimming
  • Built-in 10KV surge protection
  • U-bracket included
  • Bronze housing
  • Input voltage 120–277V AC
  • 5 years Warranty
Spec Sheet and Reports
General Performance
Description Value

  • Watt
  • Lumens
  • CCT
  • CRI (Ra)
  • Voltage

  • 75W
  • RGB
  • RGB
  • >80
  • 120-277Vac

  • Operating Temperature
  • Storage Temperature
  • Operating Humidity
  • Storage Humidity
  • LED Brand
  • LED Type
  • LED QTY
  • Construction

  • -40°C TO 50°C
  • -40°C TO 80°C
  • 20％ - 90％ RH
  • 20％ - 90％ RH
  • Lumileds
  • 2835
  • 176 PCS
  • Die-cast aluminum
Electrical
Description Value
  • Frequency
  • Dimming
  • PF (Tolerance: -3%)
  • THD (Tolerance : +5%)
  • Flicker Percent
  • Driver Brand
  • 50/60Hz
  • 0-10V
  • ≥0.9
  • ≤20%
  • <5%
  • LIFUD
Frequently Asked Questions
How does Bluetooth control work with the Tuya app for RGBW lighting adjustments?

Bluetooth control lets you connect the floodlight directly to your phone using the Tuya Smart app. Once paired, the app lets you select colors, set lighting modes, and adjust settings from your mobile device without needing a hub or separate remote. This makes it easy to manage RGBW effects and customize the look of your installation right from your phone.

Can brightness and color effects be dimmed using Bluetooth controls?

Yes. Through the Tuya app, you can dim the light and adjust the intensity of both white light and RGB color effects. You can fine-tune brightness levels to match mood or task lighting needs, giving you flexibility for different times of day or event settings.

What applications are best suited for the 35° narrow beam angle?

The 35° beam angle produces a focused and directional light pattern, which is ideal for highlighting architectural details, columns, building facades, signage, or specific landscape features. This narrower beam helps concentrate illumination where you want visual impact and reduces light spill into surrounding areas.

How does the built-in 10KV surge protection enhance fixture reliability outdoors?

The built-in 10 KV surge protection helps shield the driver and internal electronics from power spikes and electrical surges. These can occur during storms, power cycling, or other unstable electrical conditions. By protecting against these surges, the fixture is less likely to fail prematurely and will maintain reliable performance in outdoor environments.

Is this architectural floodlight compatible with 120–277V electrical systems?

 Yes. This floodlight is designed to operate across a wide voltage range from 120 V to 277 V AC, so it works with most common residential, commercial, and industrial power systems without needing special transformers or drivers.

What residential or commercial projects benefit most from using an RGBW architectural floodlight?

 An RGBW architectural floodlight is great for projects that need both functional illumination and creative color effects. In residential settings it enhances exterior patios, gardens, outdoor entertainment areas, and accent lighting around homes. In commercial settings it works well for building facades, retail storefront lighting, event spaces, hospitality venues, outdoor dining areas, and landscape highlights where mood lighting and color variation add visual interest. The smart control and color options make it suitable wherever flexibility and decorative illumination are desired.

.
