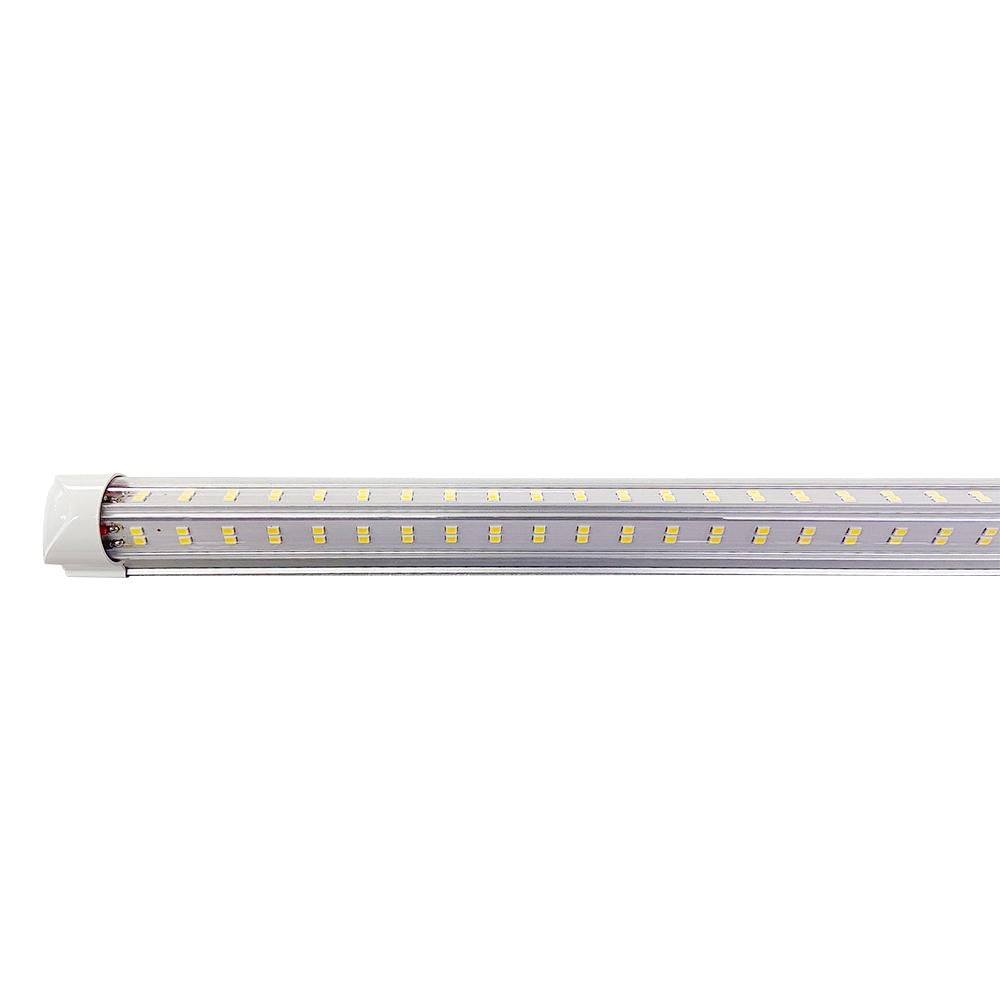

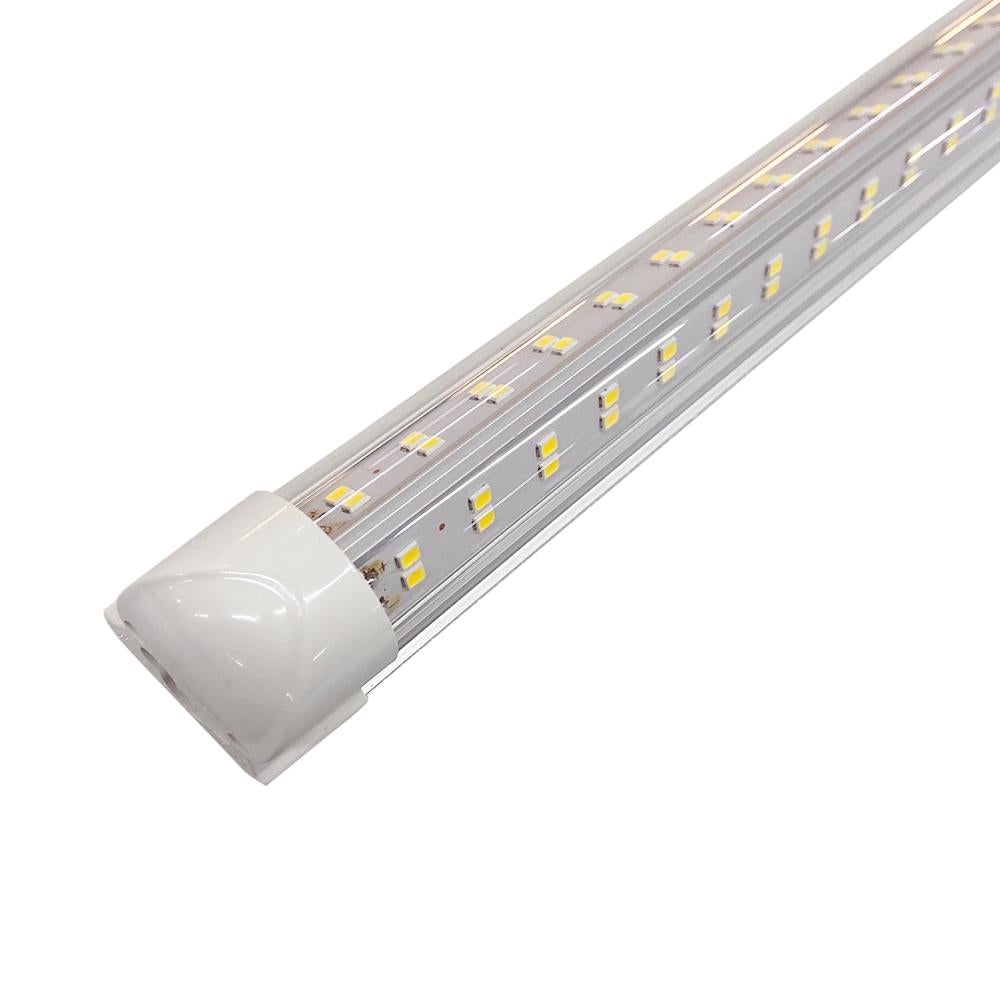

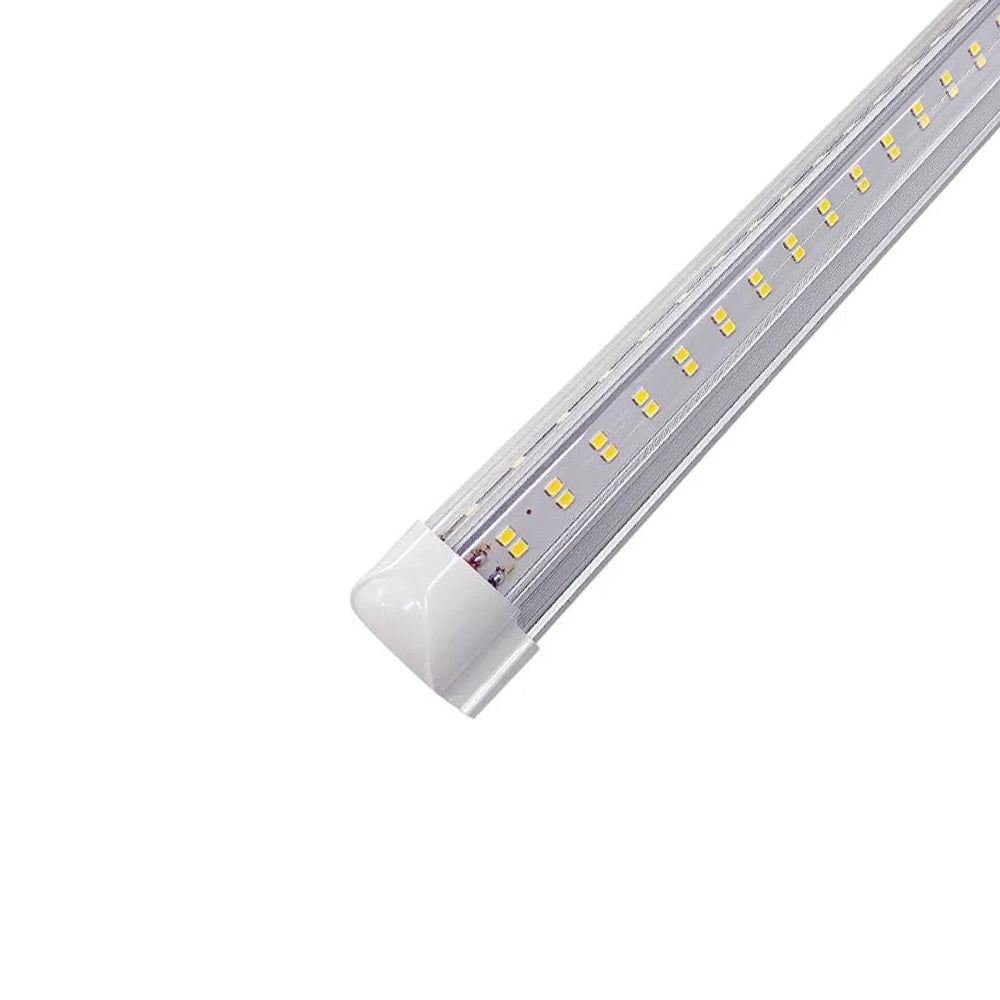

LED Linkable Integrated Tube | 90 Watt | 12600 Lumens | 5000K | 100V-277V

LED Linkable Integrated Tube | 90 Watt | 12600 Lumens | 5000K | 100V-277V

8' - ETL Listed - 5 Year Warranty

  • up to 140 lm/W
  • Input Voltage 100–277VAC 50–60Hz
  • Operates directly from line voltage
  • Usable as a stand-alone fixture
  • Linkable up to 200W at AC120V
  • Aluminum and PC housing
  • ETL & DLC listed
  • 5-year warranty
Nothing But LED's Linkable T8 LED Integrated Lamps to perform efficiently in conditions where low voltage, halogen, or fluorescent luminaires have traditionally been used. Our LED tubes incorpo­rate integral drivers, are self-supporting and can be surface mounted. Individual units can be plugged together for continuous lengths up to 200W. Our Lamps connect directly to line voltage and can be used in any interior space. Operates directly from...
View Important Details
SKU: 1520574
$39.99 ea.
$39.99 ea. ea.
Sale Sold out
Pack

Sold as a Pack of 6

Pack Price: $239.94
Call for Bulk Order
800-414-8919
Spec Logo Spec Logo
Product Details
  • up to 140 lm/W
  • Input Voltage 100–277VAC 50–60Hz
  • Operates directly from line voltage
  • Usable as a stand-alone fixture
  • Linkable up to 200W at AC120V
  • Aluminum and PC housing
  • ETL & DLC listed
  • 5-year warranty

Nothing But LED's Linkable T8 LED Integrated Lamps to perform efficiently in conditions where low voltage, halogen, or fluorescent luminaires have traditionally been used. Our LED tubes incorpo­rate integral drivers, are self-supporting and can be surface mounted. Individual units can be plugged together for continuous lengths up to 200W. Our Lamps connect directly to line voltage and can be used in any interior space.

  • Operates directly from line voltage
  • Usable as a stand-alone fixture
  • Integrated Fixtures 8ft / 90 Watt / 5000K
  • Linkable up to 300W at AC120V
  • Efficacy up to 140 Lumens per watt
  • Aluminum and PC housing
  • Universal 100-277Vac 50-60Hz
  • Rated lifetime 50,000 hours
Spec Sheet and Reports
General Performance
Description Value
  • Wattage
  • Lumen
  • Lumen Efficacy
  • Color Temperature
  • CRI (Ra)
  • Beam Angle
  • Diffuser Type
  • 90W
  • 12600Lm
  • Up to 140LM/W
  • 5000K / 6500K
  • >80
  • 100° Degree
  • Clear
Electrical
Description Value
  • Input Voltage
  • Frequency
  • Power Factor
  • 100-277Vac
  • 50/60Hz
  • >0.95
Physical
Description Value
  • Operating Temperature
  • LED Type
  • Housing Material
  • -30°C to 65°C
  • SMC2835
  • Aluminum+PC
Frequently Asked Questions
What are linkable T8 LED integrated lamps and how do they work?

Linkable T8 LED integrated lamps are linear LED lighting units that can be connected end‑to‑end to form a continuous row of light. Instead of wiring each lamp separately, you can daisy‑chain them together so power flows from one lamp to the next. They integrate the LED light source and driver into one unit, so you do not need separate ballasts or external drivers. This setup simplifies installation and creates a seamless, evenly lit run.

How many T8 LED integrated lamps can be linked together safely?

The number of lamps you can safely link depends on the total allowable wattage on your circuit and local electrical code limits. To determine the safe total, you calculate the combined wattage of all linked fixtures and make sure it does not exceed the breaker or circuit rating. Because circuits vary, it is best practice to work with an electrician or follow local code to confirm the safe number for your installation.

Do these linkable T8 LED lamps require an external driver or ballast?

No. These integrated T8 LED lamps include the driver inside the fixture, so they do not require an external driver or ballast. This makes wiring simpler, reduces materials and labor cost, and lowers the number of components that could fail over time

Can these integrated LED lamps be used as standalone fixtures?

Yes. These LED lamps can be installed and powered as standalone fixtures. They perform equally well on their own or in a linked run. You have the flexibility to use them individually in isolated spaces or link them for continuous lighting in longer areas.

What are the benefits of using linkable T8 LED lamps over fluorescent tubes?

Linkable T8 LED lamps offer several advantages over fluorescent tubes:

  • They start instantly without flickering or warm‑up time that fluorescent tubes often have.
  • They use less energy while producing similar or greater light output.
  • They do not require ballasts, which simplifies installation and reduces maintenance.
  • They last longer with more stable output over time, which reduces replacement costs.
  • Their linkable design lets you create continuous lighting runs with fewer power feeds.

Are these T8 LED integrated lamps suitable for commercial and industrial applications?

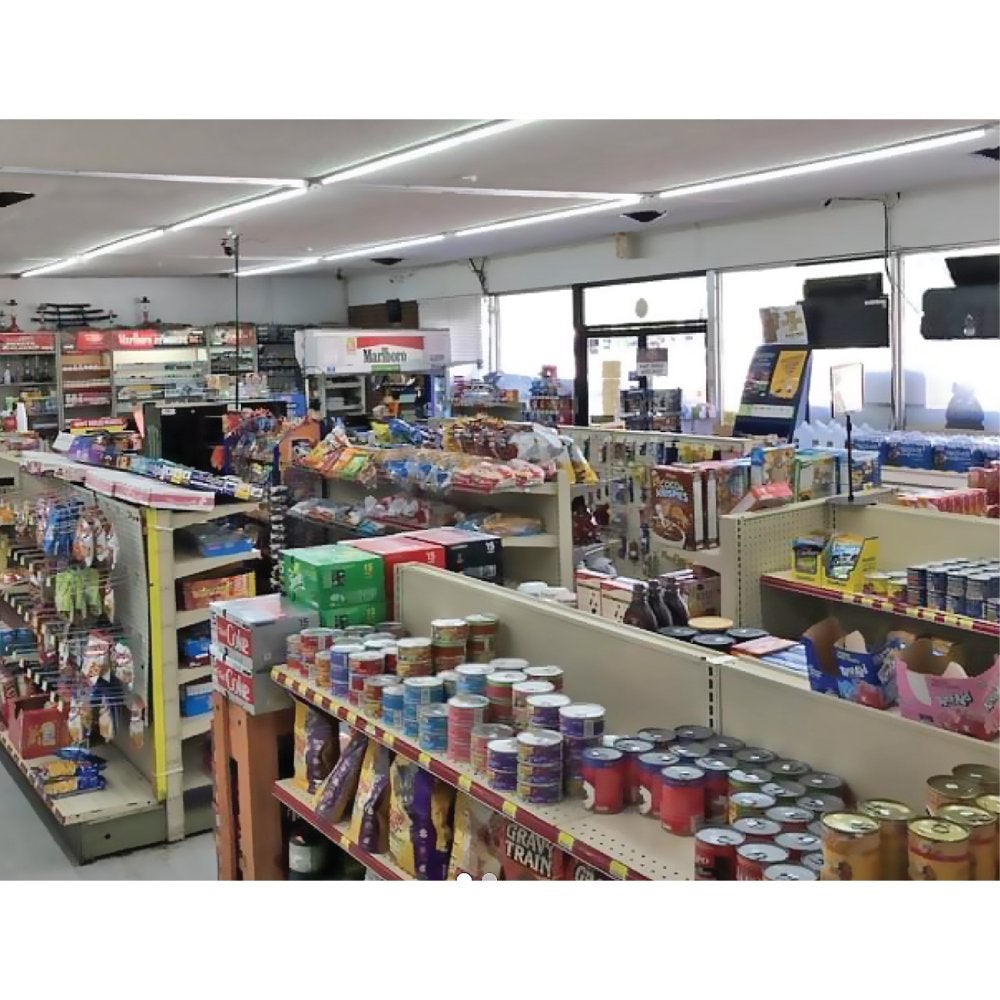

Yes. These T8 LED lamps are well suited for commercial and industrial environments such as warehouses, manufacturing areas, workshops, retail backrooms, utility rooms, and garages. Their robust design, high light output, and linkable capability make them a strong choice for spaces that need efficient, continuous illumination over large areas.

.
