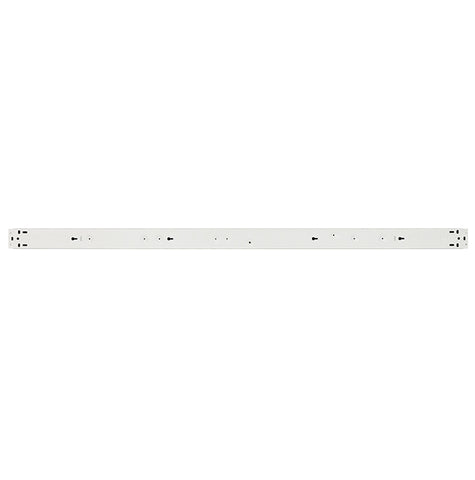

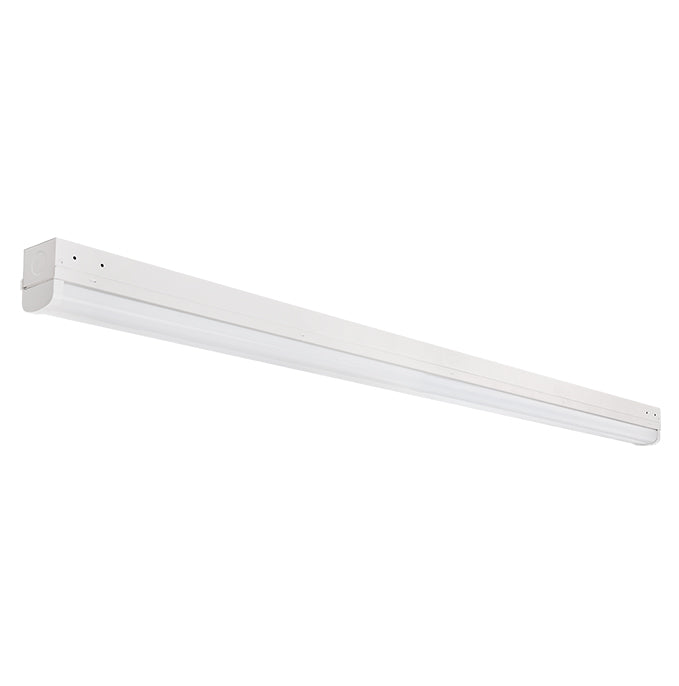

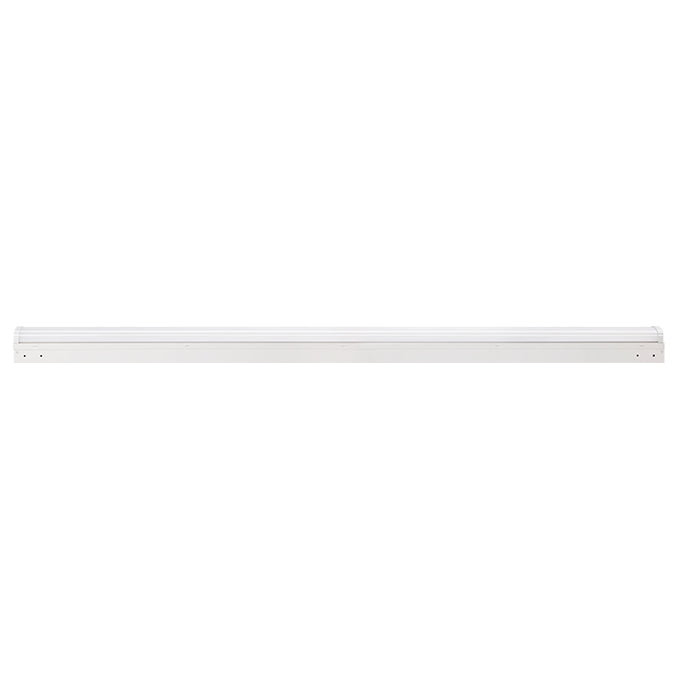

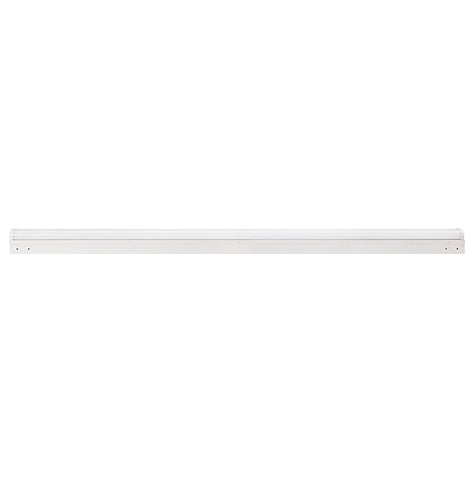

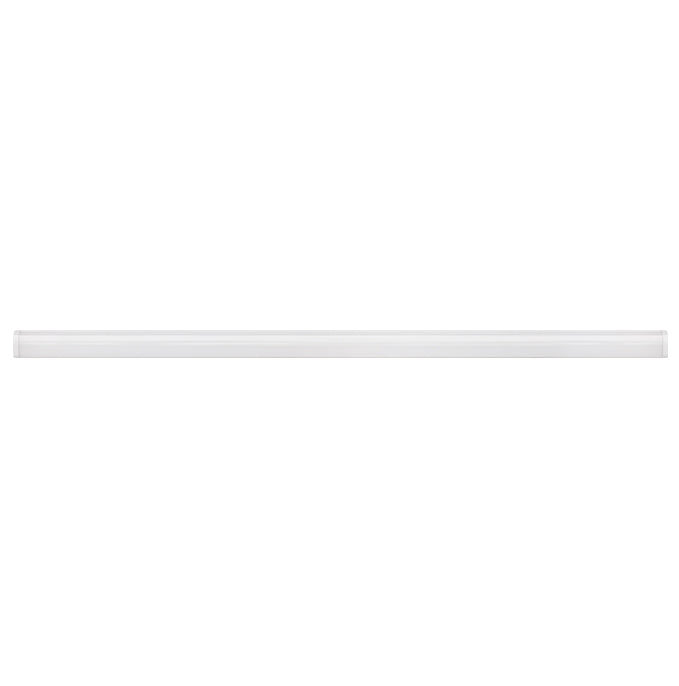

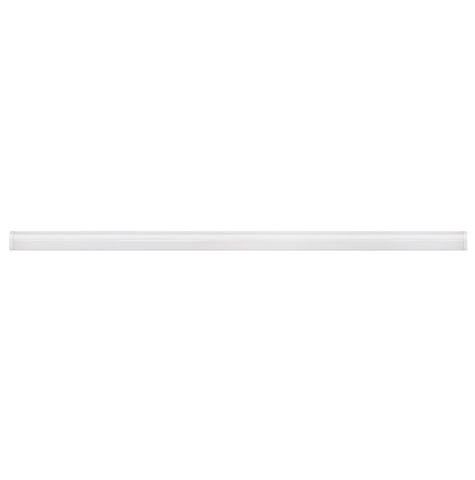

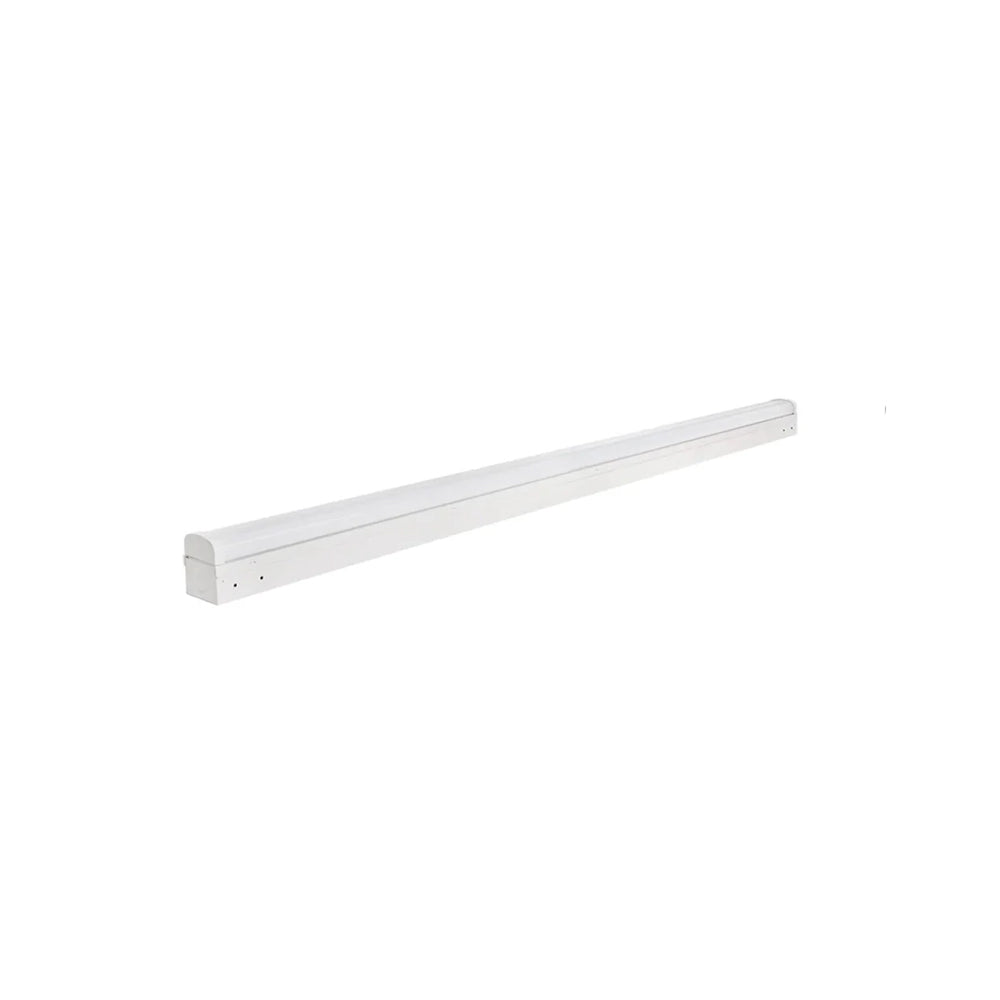

LED Linkable Strip Fixture | Adj Watt 20W/30/40W | 5200 Lumens | Adj CCT 3500K-4000K-5000K | 120-277Vac

LED Linkable Strip Fixture | Adj Watt 20W/30/40W | 5200 Lumens | Adj CCT 3500K-4000K-5000K | 120-277Vac

4ft - UL & DLC Listed - 5 Year Warranty

  • Efficacy up to 130 Lumens per watt
  • Wattage adjustable
  • CCT Adjustable 3500K / 4000K / 5000K
  • Input Voltage 120-277Vac 50-60Hz
  • Usable as a stand alone fixture
  • 4’ Linkable up to 20 Pcs
  • 8’ Linkable up to 10 Pcs
  • Operates directly from line voltage
  • Output constant current lever can be adjusted through output cable with 0-10V

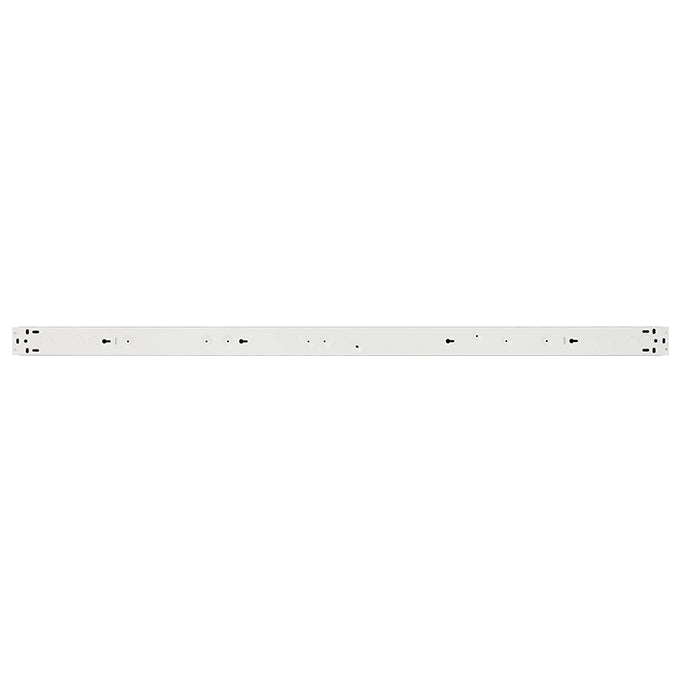

  • Optional Surface mounting bracket for easy installation
  • Optional hanging kit available
  • Iron housing with white paint finish
  • Input Voltage 120-277Vac
  • UL & DLC Listed
  • 5 Year warranty
Nothing But LEDs strip fixtures perform efficiently in conditions where low-voltage, halogen, or fluorescent luminaires have traditionally been used. Our LED strip fixtures incorporate integral drivers, are self-supporting, and can be surface mounted. Individual units can be plugged together for continuous lengths up to 20 pieces (4'), and they’re CCT adjustable and wattage adjustable. Our LED strip fixture lamps connect directly to line volta...
View Important Details
SKU: 1560737
$49.99 ea.
$49.99 ea. ea.
Sale Sold out
Pack

Sold as a Pack of 4

Pack Price: $199.96
Call for Bulk Order
800-414-8919
Spec Logo Spec Logo

Compatible Add-ons

PIR Motion Sensor

PIR Motion Sensor

$39.99 ea.

Product Details
  • Efficacy up to 130 Lumens per watt
  • Wattage adjustable
  • CCT Adjustable 3500K / 4000K / 5000K
  • Input Voltage 120-277Vac 50-60Hz
  • Usable as a stand alone fixture
  • 4’ Linkable up to 20 Pcs
  • 8’ Linkable up to 10 Pcs
  • Operates directly from line voltage
  • Output constant current lever can be adjusted through output cable with 0-10V
  • Optional Surface mounting bracket for easy installation
  • Optional hanging kit available
  • Iron housing with white paint finish
  • Input Voltage 120-277Vac
  • UL & DLC Listed
  • 5 Year warranty

Nothing But LEDs strip fixtures perform efficiently in conditions where low-voltage, halogen, or fluorescent luminaires have traditionally been used. Our LED strip fixtures incorporate integral drivers, are self-supporting, and can be surface mounted. Individual units can be plugged together for continuous lengths up to 20 pieces (4'), and they’re CCT adjustable and wattage adjustable. Our LED strip fixture lamps connect directly to line voltage and can be used in any interior space.

  • Efficacy up to 130 Lumens per watt
  • Wattage adjustable
  • CCT Adjustable 3500K / 4000K / 5000K
  • Input Voltage 120-277Vac 50-60Hz
  • Usable as a stand alone fixture
  • 4’ Linkable up to 20 Pcs
  • 8’ Linkable up to 10 Pcs
  • Operates directly from line voltage
  • Output constant current lever can be adjusted through output cable with 0-10V
  • Optional Surface mounting bracket for easy installation
  • Optional hanging kit available
  • Iron housing with white paint finish
  • Input Voltage 120-277Vac
  • UL & DLC Listed
  • 5 Year warranty
Spec Sheet and Reports
General Performance
Description Value
  • Wattage
  • CCT
  • Lumen
  • Lumen Efficacy
  • CRI (Ra)
  • Beam Angle
  • 20W / 30W / 40W
  • 3500K / 4K / 5K
  • Up to 5200LM
  • Up to 130LM/W
  • >80
  • 120° Degree
Electrical
Description Value
  • Input Voltage
  • Frequency
  • Dimming
  • Power Factor
  • THD
  • Flicker Percent
  • Driver Brand
  • Driver Model
  • 120-277V
  • 50/60 Hz
  • 0-10V Dimmable
  • >0.9
  • <20
  • NON-FLICKERING
  • Nothing But LEDs
  • SDU40CS090V42DN3A
Physical
Description Value

  • Storage Temperature
  • Storage Humidity
  • LED Brand
  • LED Type
  • LED QTY
  • Housing Material

  • -25°C-80°C
  • 5% RH Min; 95% Max
  • Lumileds
  • 2835
  • 280 Pcs
  • Metal
Frequently Asked Questions
What are the benefits of wattage adjustable LED strip fixtures?

Adjustable wattage lets you set the light output to match your specific needs. Lower wattage uses less energy and is perfect for general area lighting, while higher wattage provides brighter illumination for task-oriented spaces. This flexibility helps you optimize energy use and light levels without changing fixtures.

How does adjustable CCT improve lighting flexibility?

Adjustable color temperature (CCT) lets you choose the light tone that fits the space. You can select 3500K for warmer, comfortable light, 4000K for balanced general lighting, or 5000K for crisp, cool white ideal for detailed tasks. Being able to change CCT on site means one fixture can serve multiple purposes and environments.

How many fixtures can be linked together for continuous lighting?

This strip fixture is linkable, which means you can connect multiple fixtures end-to-end for a continuous run. Linking reduces the number of power feeds and creates seamless illumination across long ceilings or aisles. The exact number of linkable units depends on the total power capacity of your circuit, but these fixtures are designed to be daisy-chained for long runs in commercial spaces.

Does this LED strip fixture require an external driver or ballast?

No. These LED strip fixtures are self-contained with an integrated driver, so you do not need an external driver or ballast. This makes installation simpler, reduces the number of parts you need to manage, and improves reliability because there are fewer components that can fail.

What mounting options are available for this LED strip fixture?

There are several mounting options to suit different spaces. You can use surface mounting if you want the fixture flush to ceilings, suspended mounting with cables or chains for higher ceilings, or direct ceiling mount in traditional grid or hard-finished ceilings. These options make it easy to install in warehouses, offices, retail spaces, and utility rooms.

What applications are best suited for this LED strip fixture?

This LED strip fixture is ideal for a wide range of commercial and industrial environments, including warehouses, workshops, utility rooms, retail back rooms, storage areas, corridors, break rooms, and office support spaces. Its flexibility, linkability, and adjustable settings make it useful wherever even, efficient lighting is needed over long runs or open floor plans.

.
