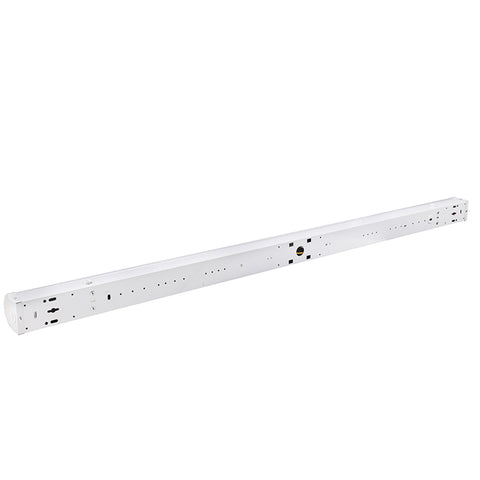

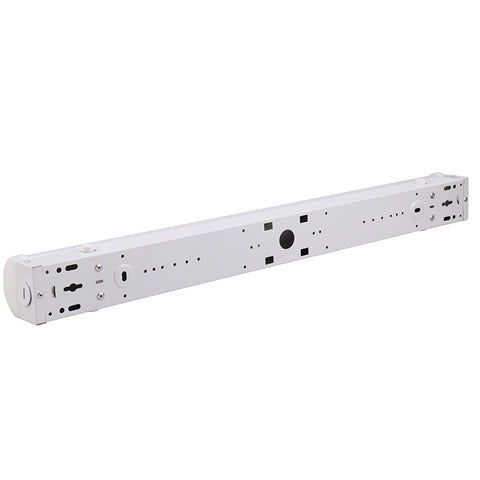

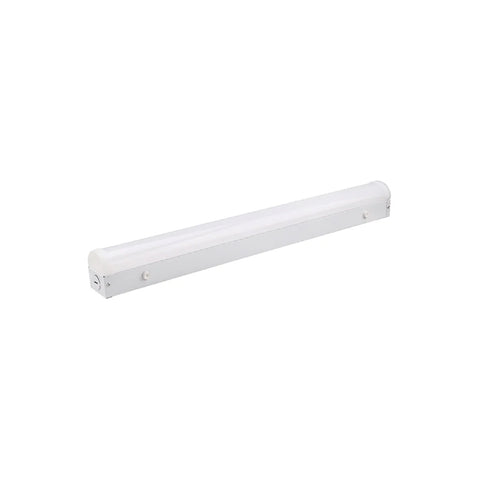

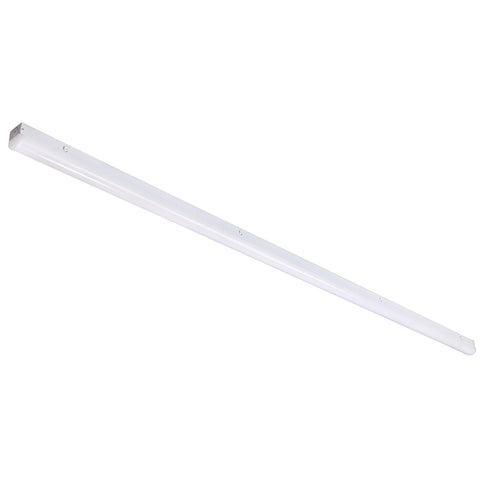

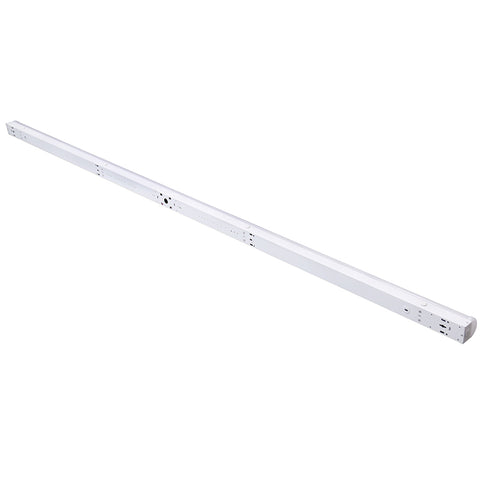

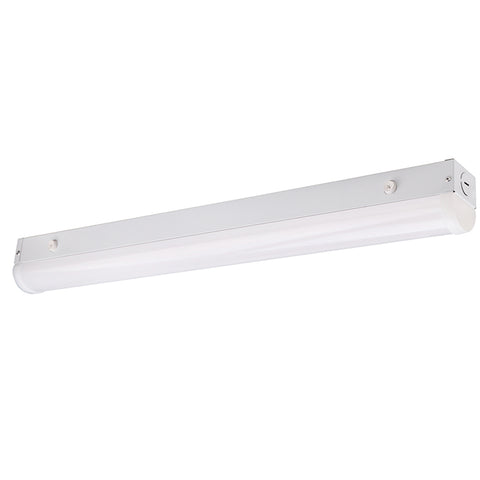

LED Linkable Strip Fixture | Adj Watt 20W/30W/40W | 5400 Lumens | Adj CCT 3000K-3500K-4000K-5000K | 120-277V

LED Linkable Strip Fixture | Adj Watt 20W/30W/40W | 5400 Lumens | Adj CCT 3000K-3500K-4000K-5000K | 120-277V

4ft - UL & DLC Listed - 5 Year Warranty

  • up to 135 lm/W
  • Adjustable Wattage
  • Adjustable CCT
  • Input Voltage 120-277Vac 50-60Hz
  • 4’ Linkable up to 20 Pcs
  • High CRI, LumiLEDs Chips
  • Operates directly from line voltage
  • Output constant current lever can be adjusted through output cable with 0-10V
  • Surface mounting bracket for easy installation
  • Optional hanging kit available
  • Iron housing with white paint finish
  • Input Voltage 120-277Vac
  • UL & DLC Listed
  • 5-Year warranty
Nothing But LED's Linkable Strip Fixtures perform efficiently in conditions where low voltage, halogen, or fluorescent luminaires have traditionally been used. Our LED Linkable Strip Fixtures incorporate integral drivers, are self-supporting and can be surface mounted. Individual units can be plugged together for continuous lengths up to 20 Pcs (4’) and they’re CCT Adjustable and Wattage Adjustable. Our Lamps connect directly to line voltage a...
View Important Details
SKU: 1560692
$34.99 ea.
$34.99 ea. ea.

Sold as a Pack 6
for $209.94

Call for Bulk Order
800-414-8919
Spec Logo Spec Logo Spec Logo
Product Details
  • up to 135 lm/W
  • Adjustable Wattage
  • Adjustable CCT
  • Input Voltage 120-277Vac 50-60Hz
  • 4’ Linkable up to 20 Pcs
  • High CRI, LumiLEDs Chips
  • Operates directly from line voltage
  • Output constant current lever can be adjusted through output cable with 0-10V
  • Surface mounting bracket for easy installation
  • Optional hanging kit available
  • Iron housing with white paint finish
  • Input Voltage 120-277Vac
  • UL & DLC Listed
  • 5-Year warranty

Nothing But LED's Linkable Strip Fixtures perform efficiently in conditions where low voltage, halogen, or fluorescent luminaires have traditionally been used. Our LED Linkable Strip Fixtures incorporate integral drivers, are self-supporting and can be surface mounted. Individual units can be plugged together for continuous lengths up to 20 Pcs (4’) and they’re CCT Adjustable and Wattage Adjustable. Our Lamps connect directly to line voltage and can be used in any interior space.

  • Efficacy up to 135 Lumens per watt
  • Wattage Adjustable 20W / 30W / 40W
  • CCT Adjustable 3000K / 3500K / 4000K / 5000K
  • Input Voltage 120-277Vac 50-60Hz
  • 4’ Linkable up to 20 Pcs
  • High CRI, LumiLEDs Chips
  • Operates directly from line voltage
  • Output constant current lever can be adjusted through output cable with 0-10V
  • Surface mounting bracket for easy installation
  • Optional hanging kit available
  • Iron housing with white paint finish
  • Input Voltage 120-277Vac
  • UL & DLC Listed
  • 5-Year warranty
    Spec Sheet and Reports
    General Performance
    Description Value
    • Model #
    • Wattage Adjustable
    • Lumens
    • Lumen Efficacy
    • Color Temperature
    • CRI (Ra)
    • Beam Angle
    • BLT-LA01C-40/30/20W4FTBTB1A1 WH50/40/35/30
    • 20W / 30W / 40W
    • 5400LM
    • Up to 135LM/W
    • 3000K / 3500K / 4000K / 5000K
    • >80
    • 130° Degree
    • Operating Temperature
    • Operating Temperature
    • Operating Humidity
    • Storage Temperature
    • Storage Humidity
    • LED Brand
    • LED Type
    • LED QTY
    • Housing
    • Without Sensor: -30°C TO 50°C;
    • With Sensor: -20°C to 45°C
    • 20% - 90% RH
    • -20°C to 80°C
    • 10% - 95% RH
    • Lumileds
    • SMD2835
    • 180 PCS
    • IRON
    Electrical
    Description Value
    • Input Voltage
    • Diffuser Type
    • Dimming
    • Power Factor
    • Flicker Percent
    • Driver Model
    • Driver Surge Protector
    • 120-277Vac, 50/60Hz
    • Frosted Lens
    • 0-10V Dimmable
    • ≥0.9
    • <5%
    • LH-040LA-S90SVPC
    • L/N-PE: 2kV, L-N: 2
    Frequently Asked Questions
    How many 4’ strip fixtures can be linked together in one run?

    You can link multiple 4-foot strip fixtures end to end to create a continuous run of light. The exact number you can safely connect depends on the total wattage capacity of your circuit and local electrical code limits, but these fixtures are designed to be daisy-chained for long rows of continuous lighting in commercial and industrial spaces.

    What are the benefits of adjustable wattage and CCT in strip lighting?

    Adjustable wattage lets you choose how much power and light output you need, which helps optimize energy use for different areas or tasks. Adjustable color temperature lets you select between 3000K, 3500K, 4000K, and 5000K, so you can tailor the light tone to the space. Warmer tones create a comfortable feel, while cooler tones enhance clarity and task visibility.

    Does this fixture require an external driver or ballast?

    No. This LED strip fixture includes an integrated driver and does not require a separate external driver or ballast. That simplifies installation, reduces components that could fail, and saves time on wiring and setup.

    Can the brightness be controlled using 0–10V dimming?

    Yes. This fixture supports 0–10V dimming when used with compatible dimming controls or lighting systems. Dimming lets you adjust brightness for energy savings, adapt to different activities, or integrate with occupancy and daylight sensors.

    Is this LED strip fixture suitable for replacing fluorescent strip lights?

    Yes. This LED strip fixture is a direct replacement for traditional fluorescent strip lights. It delivers similar or better light output while using less energy, lasts longer, and starts instantly without flicker or warm-up time. It also requires less maintenance over time.

    What mounting options are available for installation?

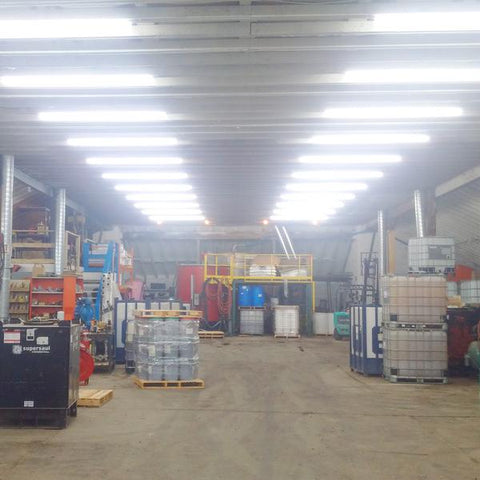

    This strip fixture supports several mounting options, including surface mounting directly to ceilings or walls, suspended mounting with cables or chains for higher ceilings, and direct ceiling mount in finished spaces. The flexibility of mounting options makes it adaptable for warehouses, offices, retail areas, and utility rooms.

    .
